■ Part to maintain

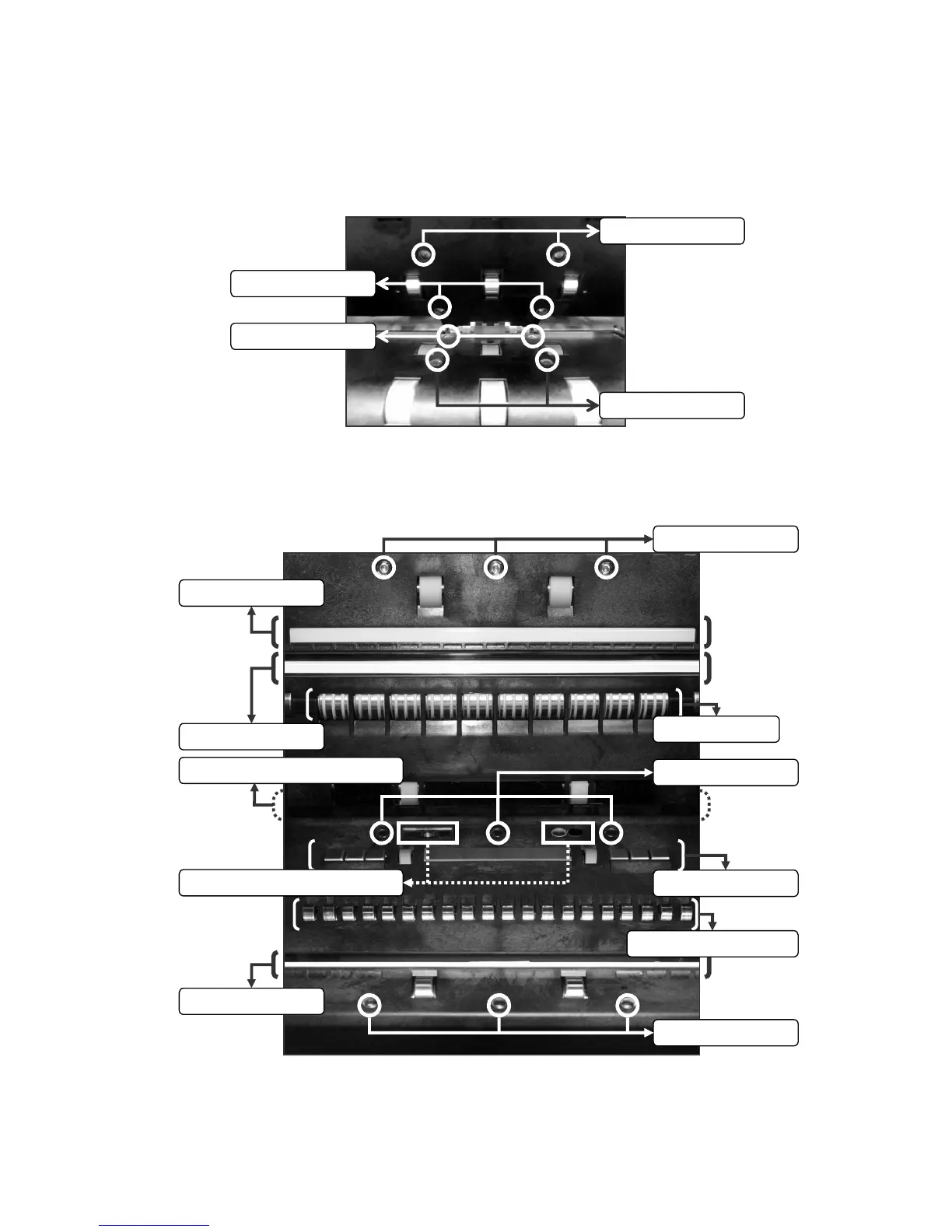

[VIEW A] It’s available to clean the Trans & Rcv sensors of RP1 & RP2 in View A

[VIEW B] It’s available to clean the Trans & Rcv sensors of RP3 & RP4, CIS, Optional CIS, Tape, MR,

and UV sensors in View B

RP3 Trans. sensors

RP3 Rcv. sensors

RP4 Trans. sensors

MR Array & Singles

IR Trans. sensor

OPT CIS sensor

Roller Detect Tape

RP4 Rcv. Sensors & UV sensors

CIS sensor

UV sensors (Left/ Right)

Ass’y Block Tape Detect

RP2 Trans. sensors

RP1 Trans. sensors

RP2 Rcv. sensors

RP1 Rcv. sensors
