[VIEW C]

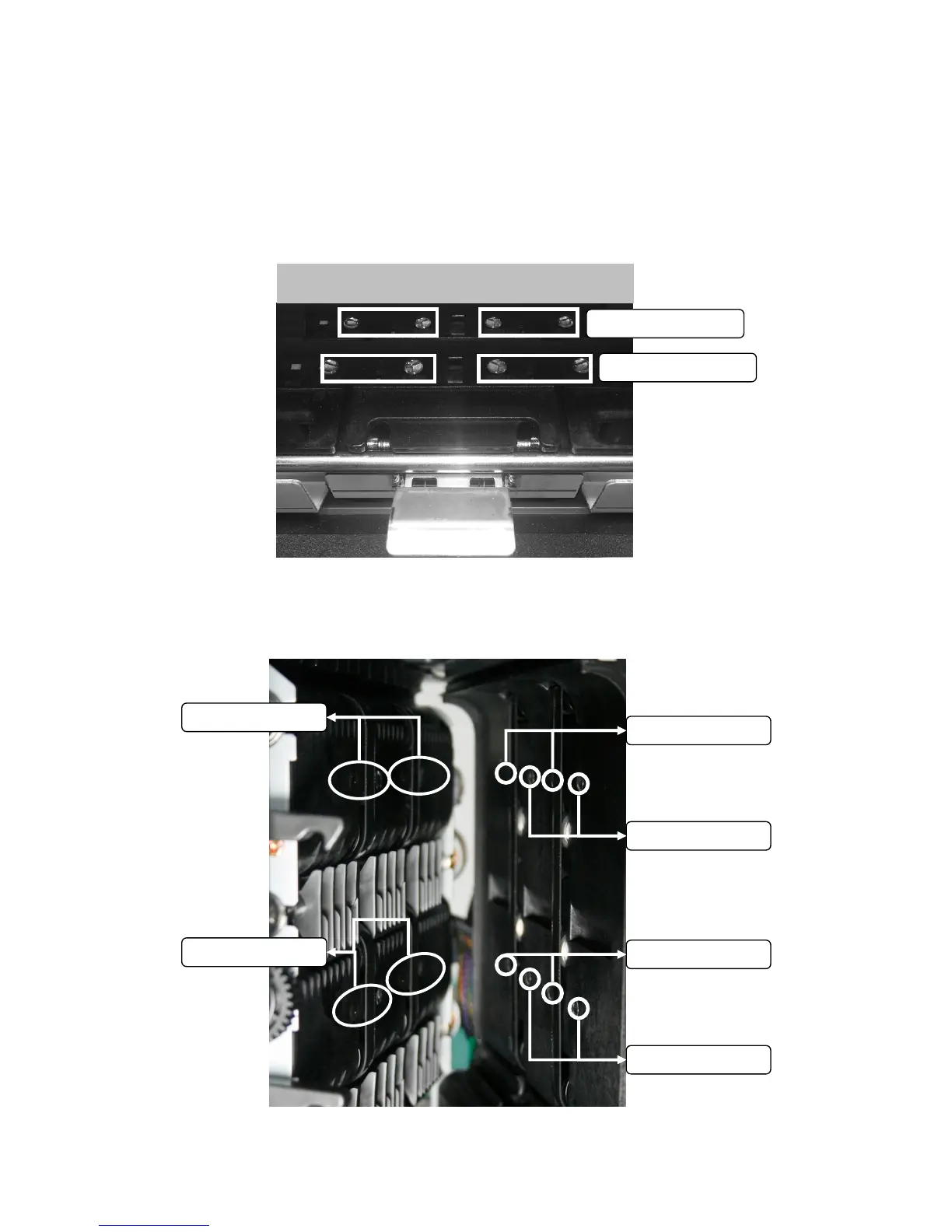

It’s available to clean the Trans & Rcv sensors of RP5 & RP6 and Prism in View C.
However, it is strongly required to clean the Trans & Rcv sensors and prism for RP6 using in cloth sice
they are located in the deep inside.
[VIEW D]
It’s available to clean the Trans & Rcv sensors of RP7 & RP8 and Prism in View D
Prism for RP6 sensors
Prism for RP5 sensors
Trans. and Rcv. Sensors (Hidden)
RP8 Trans. sensors
RP8 Rcv. sensors
RP7 Trans. sensors
RP7 Rcv. sensors
Prisms of RP7
Prisms of RP8
