SBM SB-3000 - Page 178

178

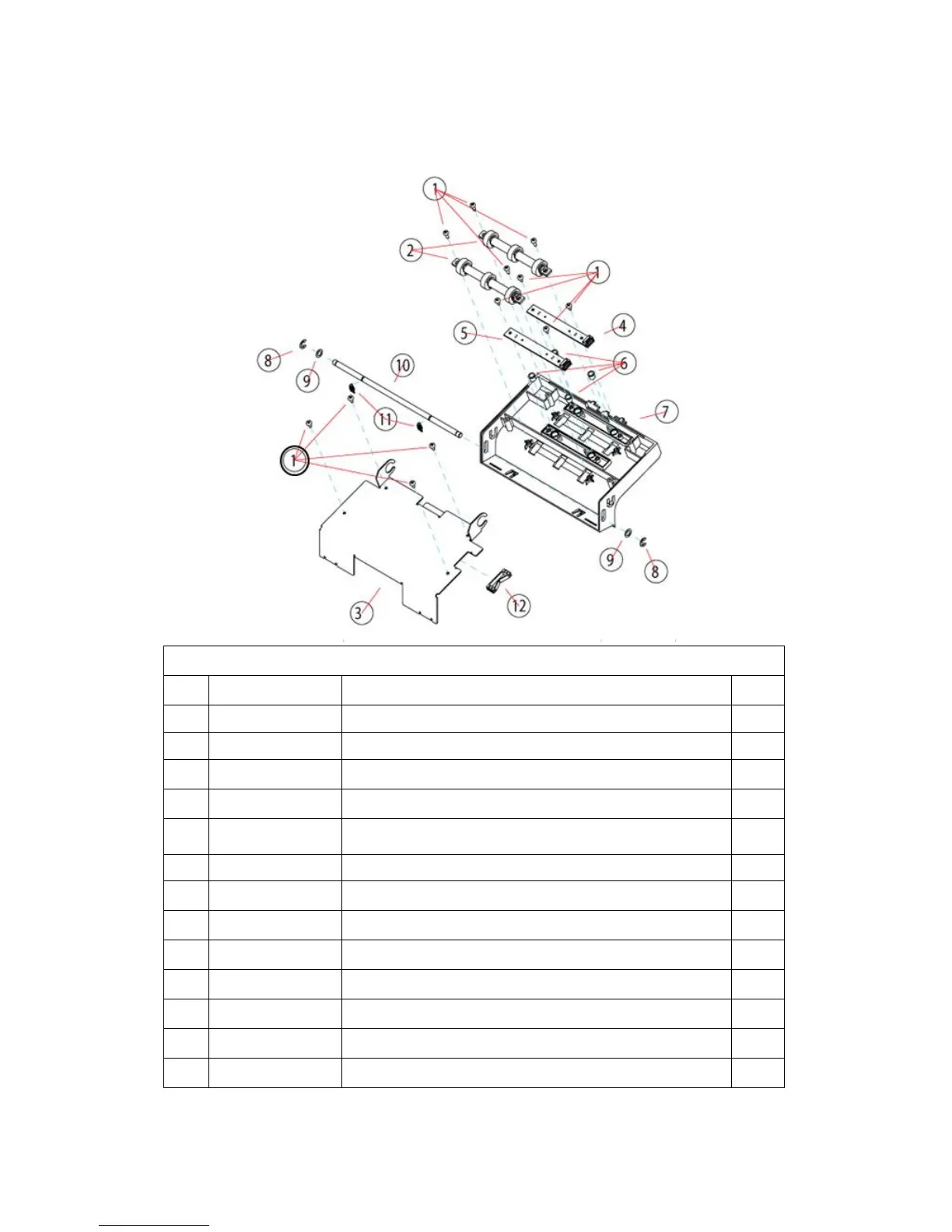

9-1. TRANSFER_A_TOP_VIEW
TRANSFER_A_TOP_VIEW
NO.
CODE PART NAME Q`TY
1-1
8400E033XA SCREW_T/P_PH_T2_Ø3X6_Fe_Zy 8
1-2
8400E034XA SCREW_T/P_PH_T2_Ø3X8_Fe_Zy 4
2 1A10X1189A ASS'Y_ROLLER_PINCH_FEED 2
3 741013700A BKT_TRANSFER_GUIDE_A 1
4 1A10X1183A SB-3000 RP1_TRN V3.0 1
5 1A10X1184A SB-3000 RP2_TRN V3.0 1
6 720713500A CAP_RP1_V 4
7 721024300A TRANSFER_GUIDE_A_TOP 1
8 8400A003XA E_RING_Ø5(5x11x0.6)_Fe_ZB 2
9 8400D010XA PLASTIC_WASHER_Ø6(6.2x10x_0.5T) 2
10 7810A094XA OPEN_SHAFT_TRANSFER_A 1
11 7610A030XA COIL_SPRING_PIVOT_TRANSFER 2
12 8805E035XA COVER_SADDLE_DS-2 1
