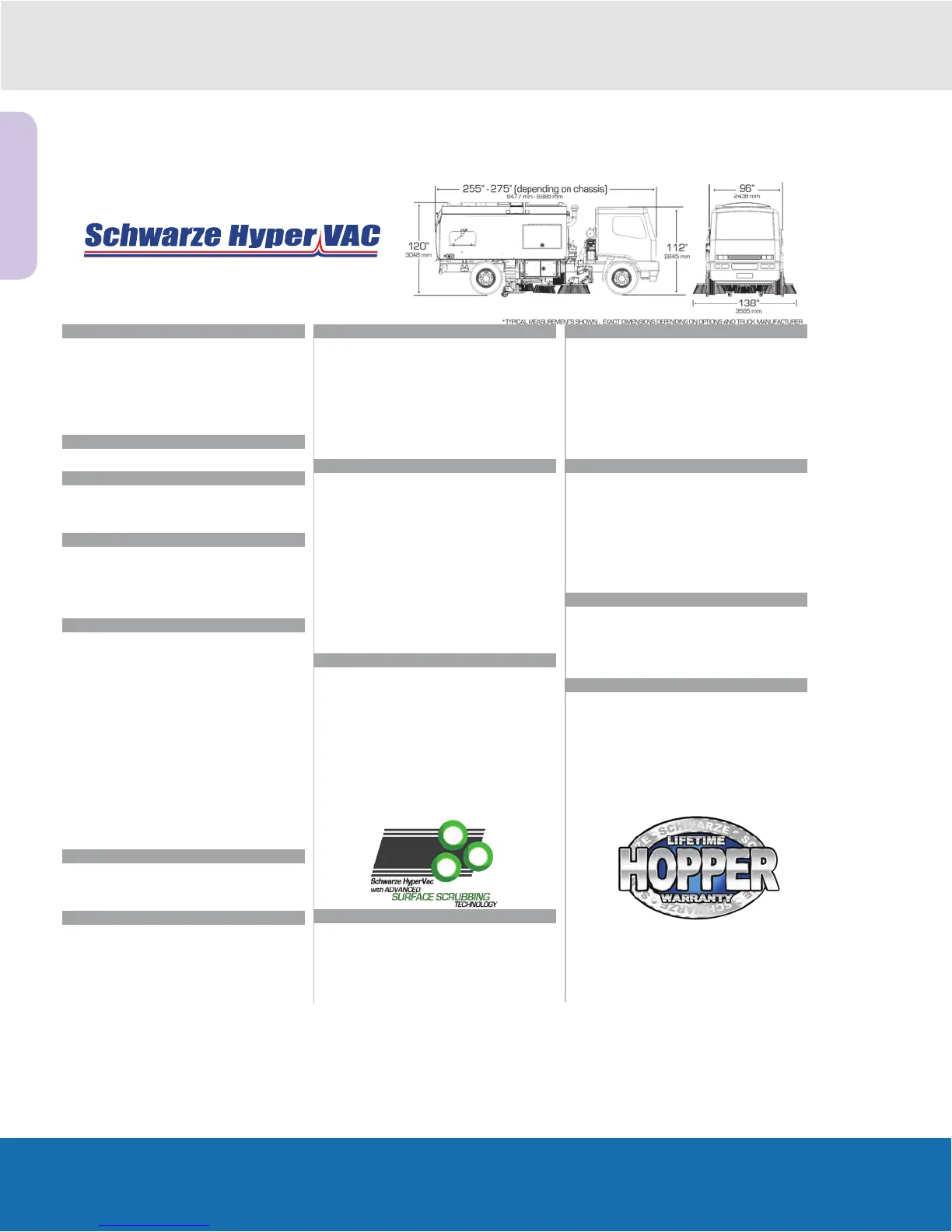

32 SCHWARZE HYPERVAC HV-18 revised 11/18
Affiliates:
© 2018 Schwarze Industries
1055 Jordan Road
Huntsville, AL 35811
800.879.7933
An Alamo-Group Company
*Ask us about our optional:
SWEEPING PATH
Suction nozzle only 28 in. (813 mm)
Suction nozzle,
transfer brooms and
one side broom 108 in. (2743 mm)
Dual suction nozzles,
dual side brooms and
transfer brooms 138 in. (3505 mm)
CHASSIS
Mounts on various chassis to meet requirements
SWEEPER BODY
Construction Welded 10-gauge stainless
steel plate
Safety props Dual steel bars under body
INSTRUMENTATION
Auxiliary engine Flat panel display;
tachometer; hourmeter;
voltmeter; temperature
gauge; oil pressure gauge;
warning icons
AUXILIARY ENGINE
Model/type 4045T in-line 4 cylinder
Aspiration Tier/Stage 4
turbo-charged diesel
Manufacturer John Deere
Displacement 275cu in (4.5 L) Brake
horsepower 134hp (10 kw) @ 2400 rpm
Torque 398ft lb (540 Nm)
@1600 rpm
Air cleaner Centrifugal precleaner;
dry type with safety element
and restriction indicator
Oil filter Full-flow/spin-on
Stroke 5 in (127 mm)
Bore 4.20 in (106 mm)
Compression ratio 19 to 1
Safety shutdown Three-point automatic
Throttle control Electronic
ELECTRICAL SYSTEM
Voltage 12 V
Sweeper engine
alternator 90 amp
DUST SUPPRESSION SYSTEM
Type Positive displacement
diaphragm
Capacity 250 gal (946 L)
Tank construction Polyethylene
Filter 50 mesh; cleanable
Fill diameter 2.5 in (63.5 mm)
Fill hose 25 ft (7620 mm)
Controls Electric; in-cab
Water level gauge In-cab
FAN SYSTEM
Type Closed-face radial
Drive Direct via 5 groove;
banded power belt
Construction Hardox steel
Balance 1.5 g on 2 sides
Diameter 32.75 in (832 mm)
Housing lining Bolt-in corded rubber
Mounting 2 regreaseable
sealed bearings
SUCTION NOZZLES
Type Tow bar
Operating direction Forward with lift in reverse
Suspension Caster wheel
Nozzle area 250 sq in (2032 mm)
Suction hose diameter 12” (305 mm)
Hose construction Wire-reinforced,
3/8” (9.5mm)
thick molded rubber
Reach 8” (200mm) beyond tire
Leaf/litter door Pneumatic with
adjustable timer
Controls Pneumatic raise and lower
Construction Abrasion-resistant steel with
corded rubber seal flaps.
SIDE BROOMS
Type Vertical steel digger
Location Right; left;
forward of pickup head
Diameter 39” (1118 mm)
Drive Hydraulic
Suspension Air float
Wear adjustment Automatic
Pressure In-cab pneumatic adjustable
Speed Variable; non-reversing
Segments 4 per side; disposable
Tilt angle adjustment In-cab controls
TRANSFER SCRUBBING BROOMS
Type Vertical Steel digger
Quantity 3
Size 28”
Drive Hydraulic
Suspension Air float
Wear adjustment Automatic
Lift Air cylinder
DEBRIS HOPPER
Volumetric capacity 7.8 cu yd (6.cu m)
Usable capacity 7.0 cu yd (5.4 cu m)
Dump angle 46 degrees
Floor angle 3 degrees
Lifting Twin hydraulic cylinders
Hopper dump door Hydraulic open, close, lock
Inspection doors 1 on each side
Hopper Dump height 45 in (1143 mm)
Debris screens Drop down for cleaning
HYDRAULIC SYSTEM
Type Variable displacement
Pump capacity 34 gpm 129 lpm
@ 2200 rpm
Drive Belt
Maximum pressure 2750 psi (190 bar)
Reservoir 25 gal (94 L)
Filter 10 micron; in-tank
pressure relief valve
Controls Electro-hydraulic
AUXILIARY HYDRAULIC SYSTEM
Type Gear type;
driven by 12v electric motor
Function Lower hopper;
open/close hopper door;
raise brooms & pickup head
PAINT
One coat of sealer/primer and two coats of
Imron® Elite
polyurethane in standard white color
Note: Design and specifications subject to change
without notice.
Section 2 - Technical Data
