SCHWARZE INDUSTRIES INC.
FUSE BLOCK LAYOUT
SI ZE FSCM NO DWG NO REV
C SK-2428 B
SCA L E
NONE
SH EE T
2 OF 14
D
C
B
A
4 3 2 1
D
C
B
A
4 3 2 1
A INITIAL RELEASE 9/27/17 RAG
REV DESCRIPTION DATE BY

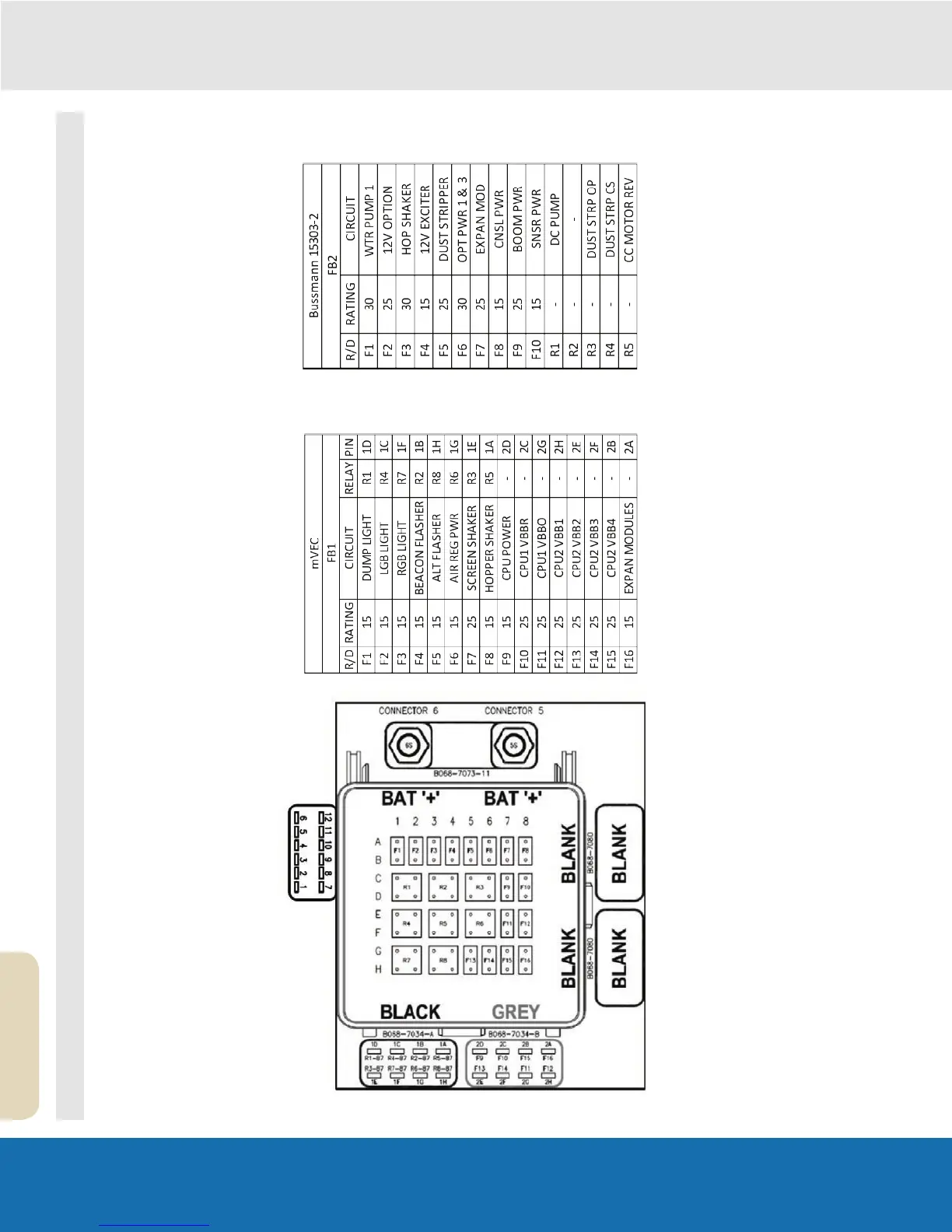

FUSE BLOCK LABELS
