Schwarze Industries Hypervac - Replacing the Side Broom Motor

Section 6 - Service
HV-18 revised 11/18 SCHWARZE HYPERVAC 77

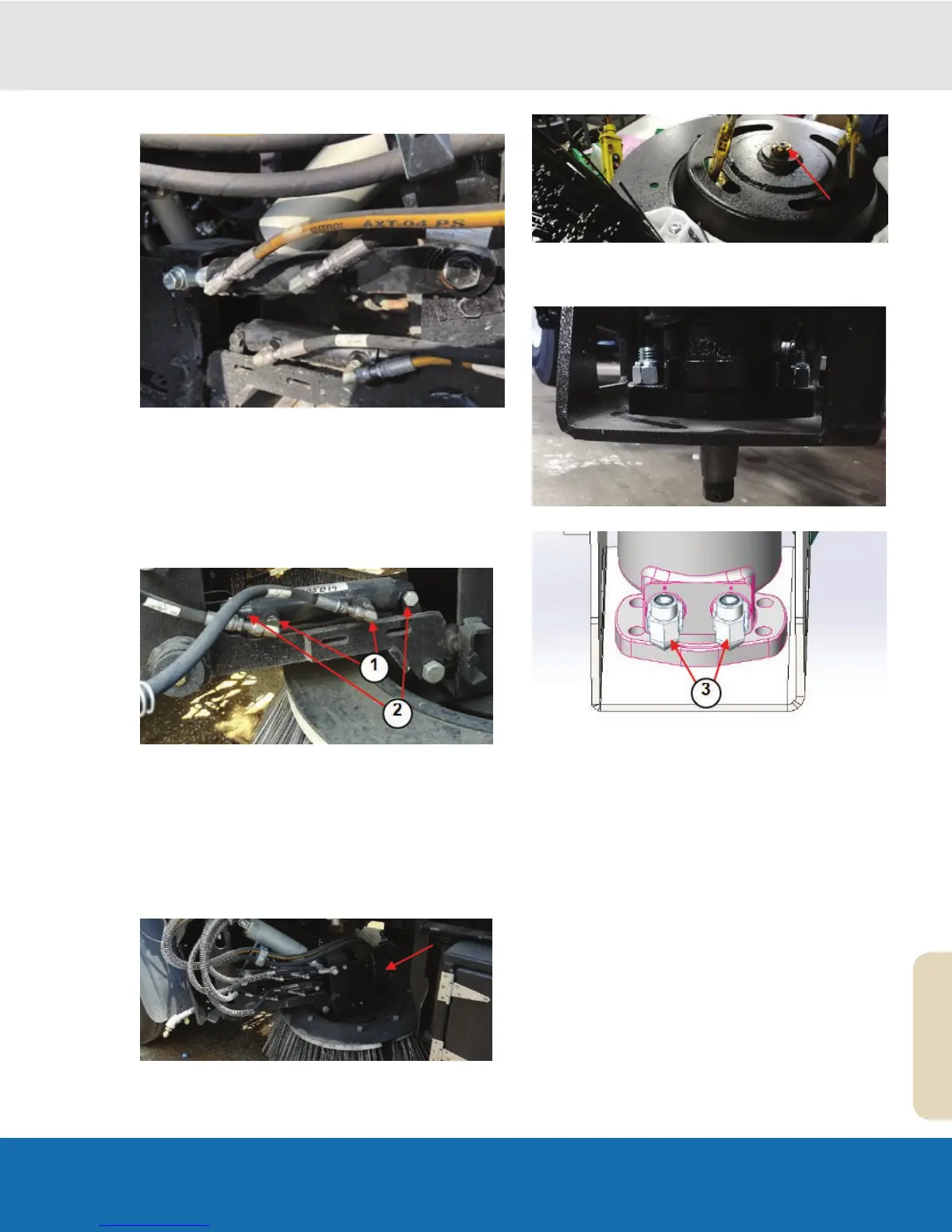

Remove and Replace the Side Broom Pitch Cylinder
1.
Cap the Hydraulic Fittings after removing them from
the cylinder.
2. Remove the two sets of hardware keeping the
cylinder held into place.
3. Replace the cylinder and retighten the assembly.
Remove and Replace the Side Broom Tilt Cylinder
1.
Cap the Hydraulic Fittings after removing them from
the cylinder.
2. Remove the two sets of hardware keeping the
cylinder held into place.
3. Replace the cylinder and retighten the assembly.
Replacing the Side Broom Motor
1. Remove the Cotter pin and castle nut from the
Hydraulic Motor’s drive shaft, the pin and castle nut
are located below the broom disc.
2.
Remove the broom.
3.
Remove the hardware retaining the Hydraulic Motor
to the bracket.
4. Replace the motor.
5. Mount the Hydraulic Motor to the Gutter Broom
Bracket and secure using hardware.
6. Place the Gutter Broom Disc onto the shaft of the
Hydraulic motor
7. Secure the Gutter Broom Disc into place by tightening
the castle nut until secure.
8. Place a new cotter pin into place.
Important: do not reuse the old cotter pin after removal.
