Section 4 - Operations
44 SCHWARZE HYPERVAC HV-18 revised 11/18

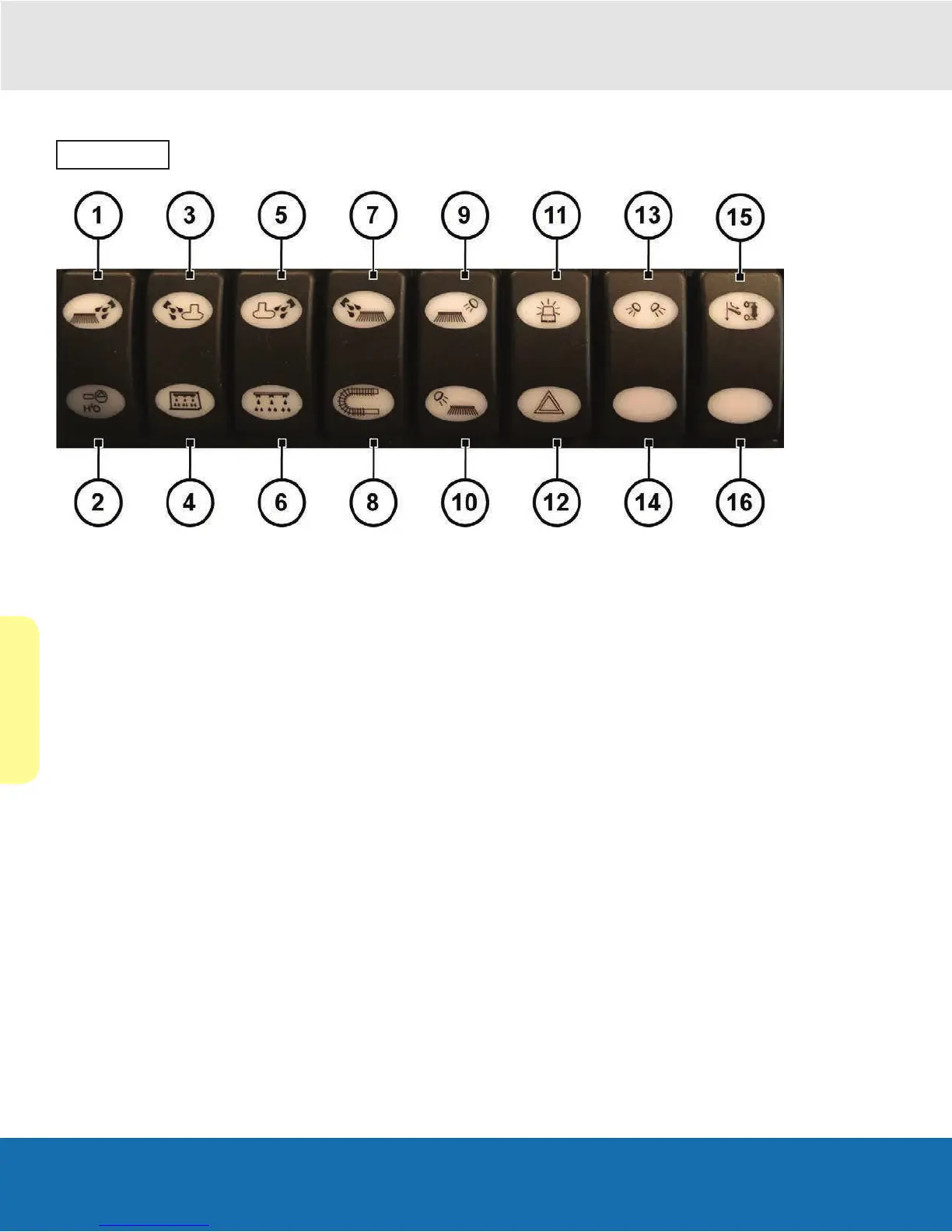

Detachable Switch Bank 2
NOTE
Your Hypervac may be equipped with additional standard switch banks mounted below main switch
banks.
1. RIGHT GUTTER BROOM WATER - ON/OFF
2. HIGH-PRESSURE WASH DOWN - ON/OFF (OPTIONAL)
3. LEFT NOZZLE WATER - ON/OFF
4. HOPPER SPRAY BAR WATER - ON/OFF
5. RIGHT NOZZLE WATER - ON/OFF
6. FRONT SPRAY BAR - ON/OFF
7. LEFT GUTTER BROOM WATER - ON/OFF
8. VACUUM HAND HOSE - ON/OFF (OPTIONAL)
9. RIGHT GUTTER BROOM LIGHT- ON/OFF
10. LEFT GUTTER BROOM LIGHT - ON/OFF
11. BEACON (IF EQUIPPED) - ON/OFF
12. HAZARD TOP FLASHER - ON/OFF
13. DUMP LIGHTS: ON/OFF
14. NOT USED
15. DUST STRIPPER DOOR - OPEN
16. DUST STRIPPER DOOR - CLOSE
