B.5
Date Code 20020903 SEL-587Z Instruction Manual
Firmware Upgrade Instructions
Establish Terminal Connection

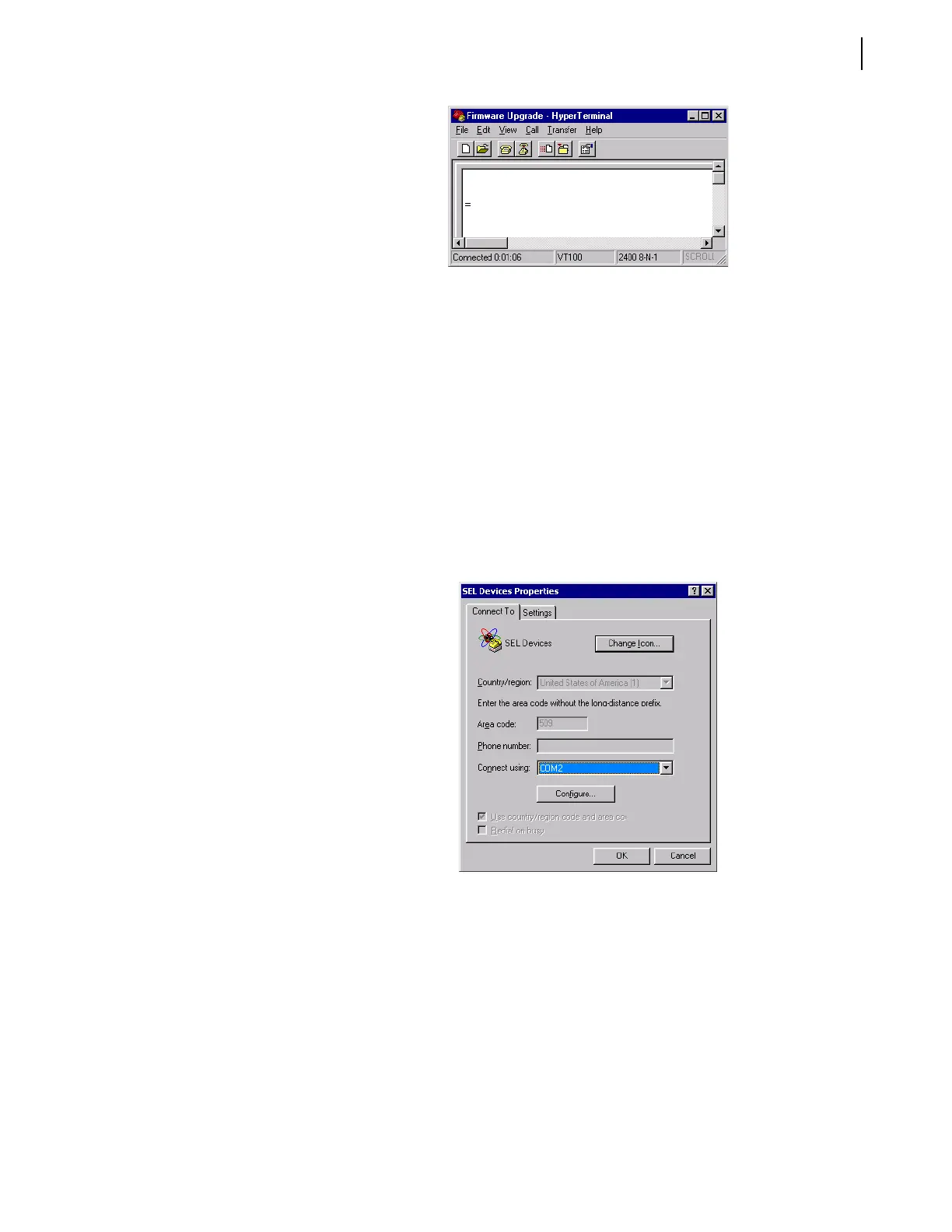

Figure B.5 Terminal Emulation Startup Prompt.
Failure to Connect
If you do not see the “=” prompt, press <Enter> again. If you still do not see
the “=” prompt, you have either selected the incorrect serial communications
port on your computer or the computer speed setting does not match the data
transmission rate of your relay. Perform the following steps to reattempt a
connection.
Step 1. From the Call menu, choose Disconnect to terminate
communication.
Step 2. Correct your port setting.
a. From the File menu, choose Properties.
You should see a dialog box similar to Figure B.6.
b. Select a different port in the “Connect using:” list box.
Figure B.6 Correcting Port Setting.
Step 3. Correct communications parameters.
a. From the filename Properties dialog box shown in
Figure B.6, click Configure.
b. You will see a dialog box similar to Figure B.7.
Step 4. Change settings in the appropriate list boxes to match the
settings you recorded in Step A.9 on page B.2 and click OK.
