Section 05 ENGINE (4-TEC)
Subsection 06 (PTO HOUSING/MAGNETO)
SMR2003-018_05-06A.FM 05-06-9

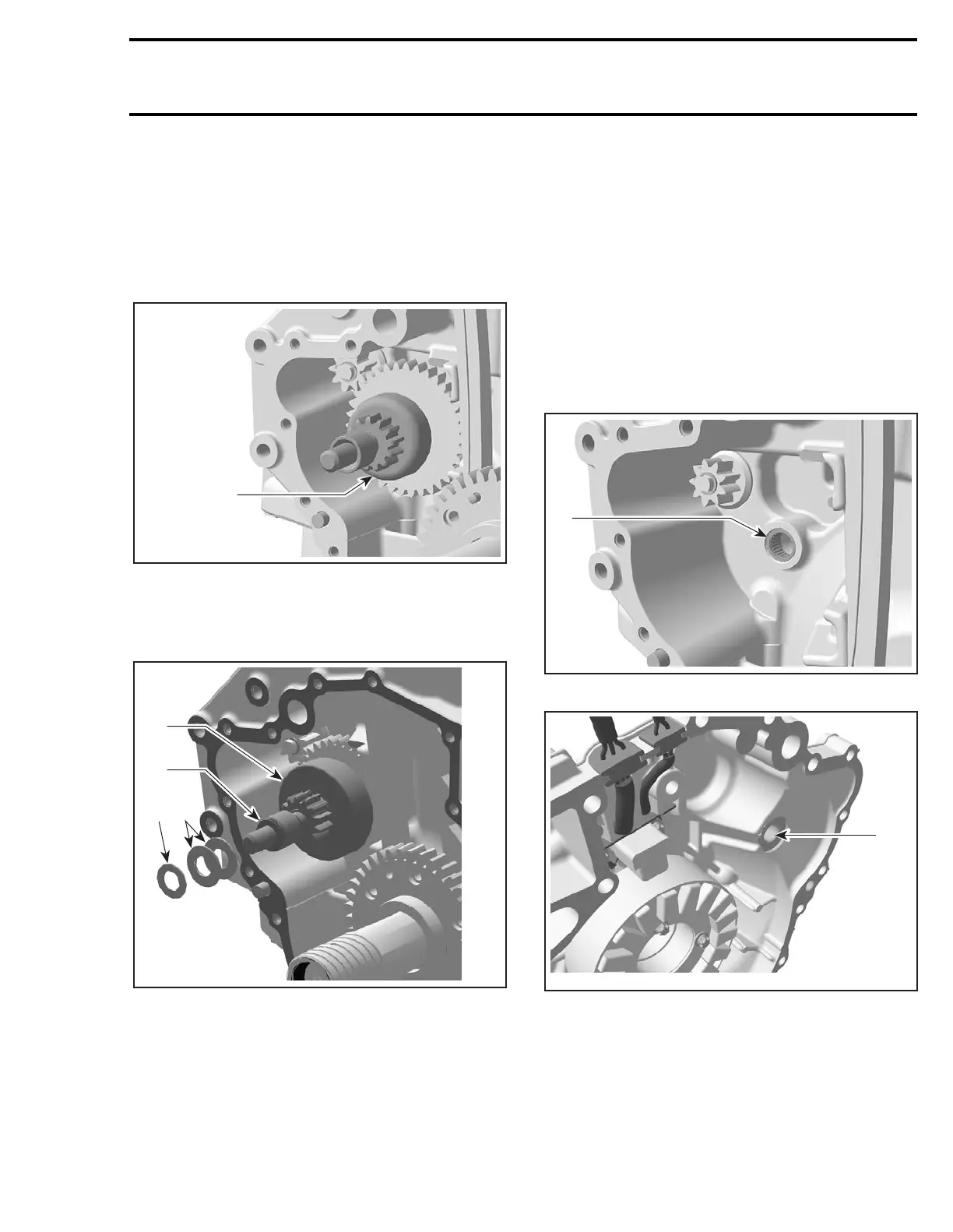

STARTER DRIVE ASS’Y
Removal
Remove:
– PTO housing and ring gear as described above
– starter drive ass’y no. 8.
1. Starter drive ass’y
CAUTION: Be careful not to lose the distance
washer, disc springs no. 6 and washer no. 7 lo-
cated on the starter drive shaft.
1. Disc springs
2. Washer
3. Flange washer
4. Starter drive gear
Inspection
Check condition of the teeth, shaft, etc. and if the
sprag clutch operates well. If damaged, replace faulty
part.
Installation
For installation, reverse the removal procedure.
However, pay attention to the following.
Apply some Isoflex Topas NB52 grease (P/N 293
550 021) on the starter drive bearing located in the
engine block and on the starter drive support in the
PTO housing cover.
1. Starter drive bearing
TYPICAL
1. Starter drive support
CAUTION: Be sure not to forget the distance
washer, disc springs and washer on the starter
drive shaft when assembling.
1
R1503motr55A
R1503motr263A
21
3
4
1
R1503motr56A
R1503motr45A
1
