Section 10 FUEL SYSTEM
Subsection 03 (AIR INTAKE (2-STROKE))
10-03-4 SMR2003-031_10_03A.FM

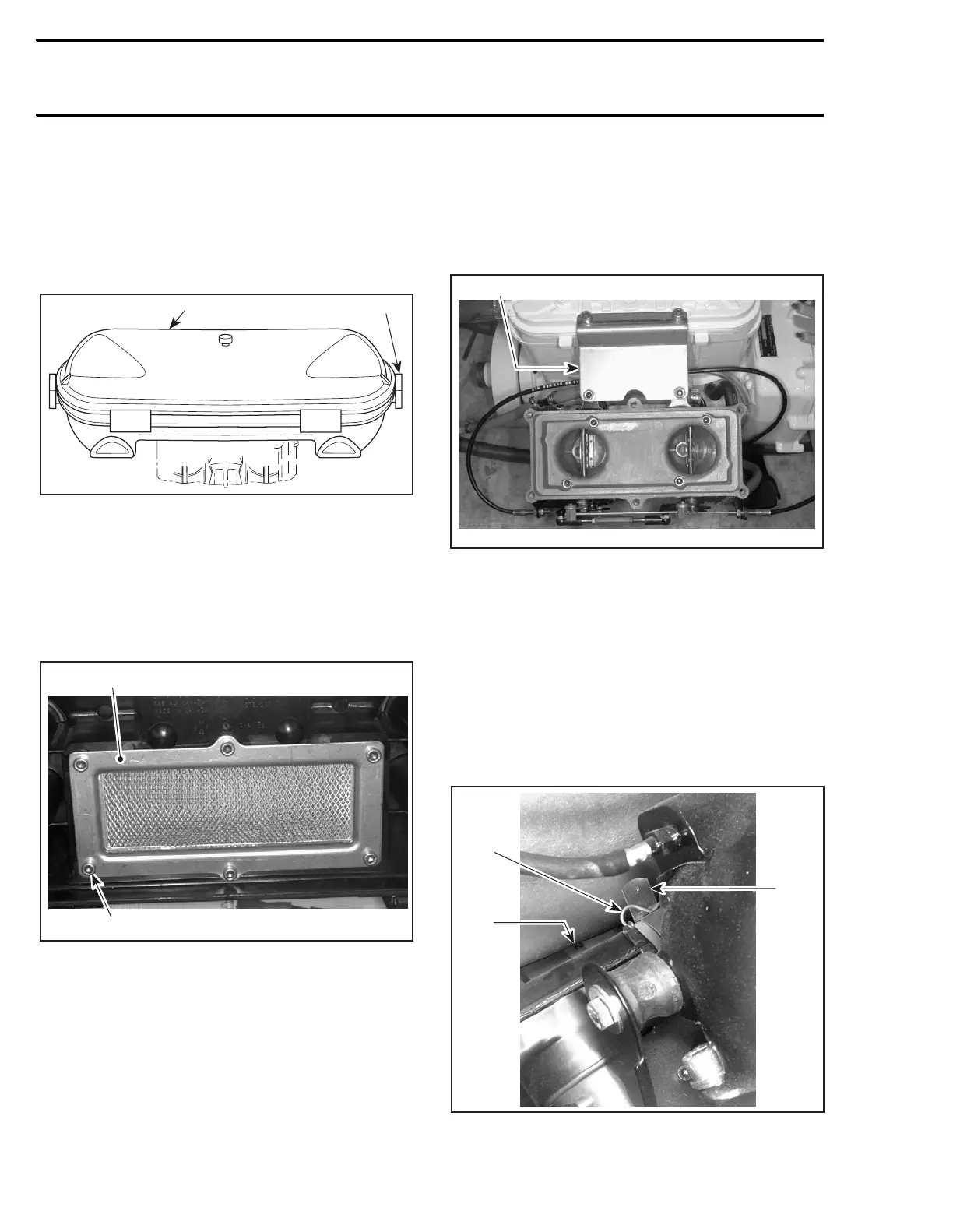

REMOVAL
717 and 787 RFI Engines
Air Intake Silencer Cover
Unlock the 6 retaining slides holding air intake si-
lencer cover no. 1 and remove cover.
TYPICAL
1. Air intake silencer cover
2. Unlock
Air Intake Silencer Base
Remove screws no. 2 of retaining plate no. 3.
Pull out retaining plate no. 3 and air intake silencer
base no. 4.
1. Retaining plate
2. Remove screws
Flame Arrester Base
Remove flame arrester no. 5.
Remove screws no. 8 retaining support no. 6 of
flame arrester base to the cylinder head cover (717
engines) or to the exhaust manifold (787 engines).
TYPICAL
1. Remove support
Remove screws no. 10 from flame arrester base
then withdraw base.
NOTE: On GTI and GTI LE models, withdraw
both arrester supports no. 15.
947 DI Engines
Air Intake Silencer
Pull hair pin out to allow removal of clip no. 2.
1. Air intake silencer
2. Clip
3. Hair pin
F00F03A
1
2
F00F0FA
3
1
