Section 13 PROPULSION SYSTEM
Subsection 05 (VARIABLE TRIM SYSTEM)
13-05-4 SMR2003-043_13_05A.FM

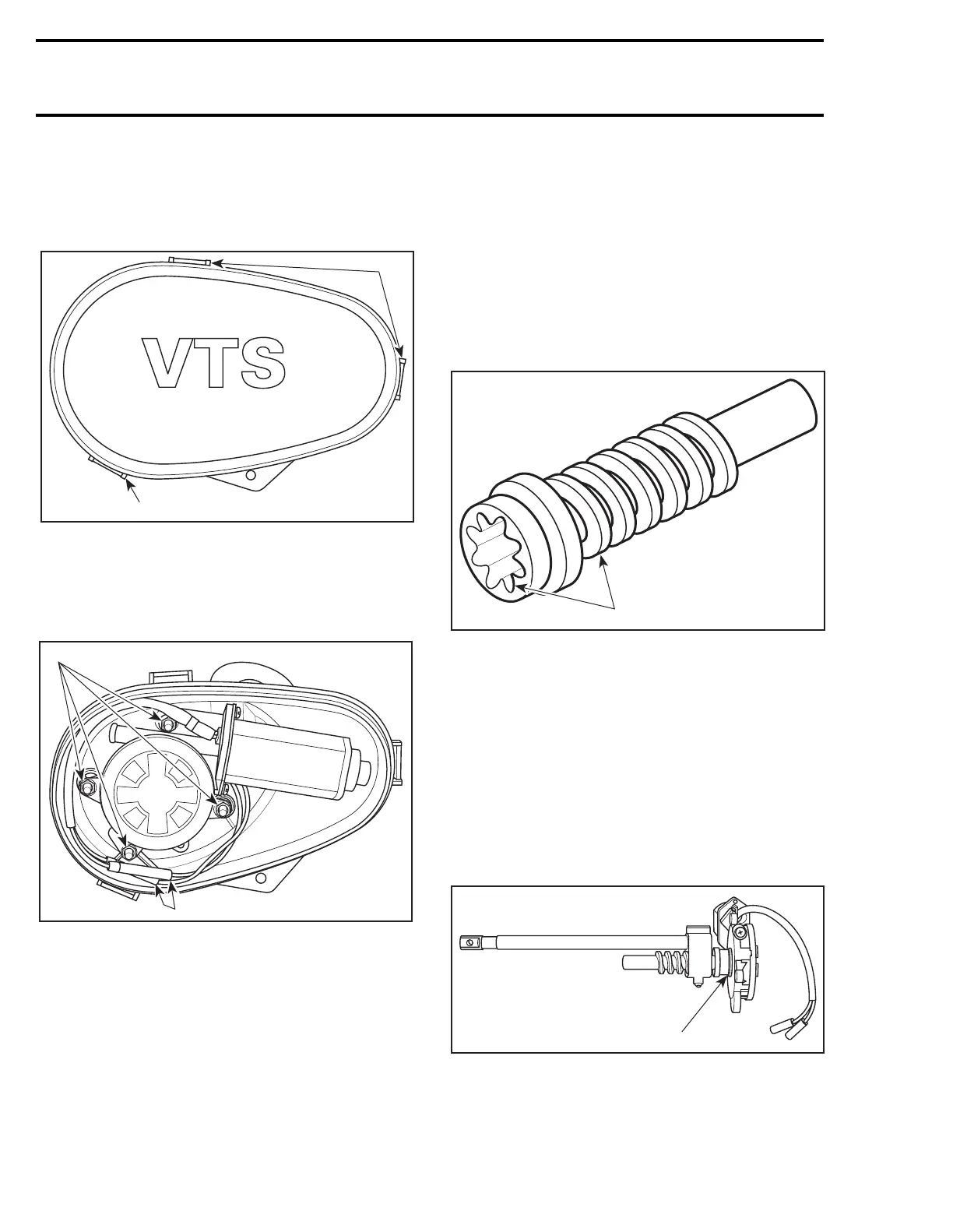

DISASSEMBLY
Cover
Remove VTS cover no. 7 by pressing on tabs.
1. Press tabs to remove cover
Motor
Disconnect wires from motor no. 8.
Remove retaining nuts no. 11.
1. Remove nuts
2. Disconnect wires
Pull on motor to remove it.
Worm and Sliding Shaft
Simply pull on worm no. 9 and sliding shaft no. 10
in order to remove them.
INSPECTION
Boot
Make sure boot no. 3 is in good condition. If it is
cracked or torn, replace boot.
Worm
Inspect threads and splines of worm no. 9 for
wear. If worm replacement is necessary, renew
also sliding shaft.
1. Inspect threads and splines
ASSEMBLY
Assembly is essentially the reverse of disassem-
bly procedures. However pay particular attention
to the following.
Motor, Worm and Sliding Shaft
Apply synthetic grease to worm.
Screw worm no. 9 to sliding shaft no. 10.
Mesh worm splines to gear of motor.
1. Mesh worm spline to gear of motor
F01J25A
1
F01J2PA
1
