Section 14 STEERING SYSTEM
Subsection 02 (STEERING SYSTEM)
SMR2003-044_14_02A.FM 14-02-3

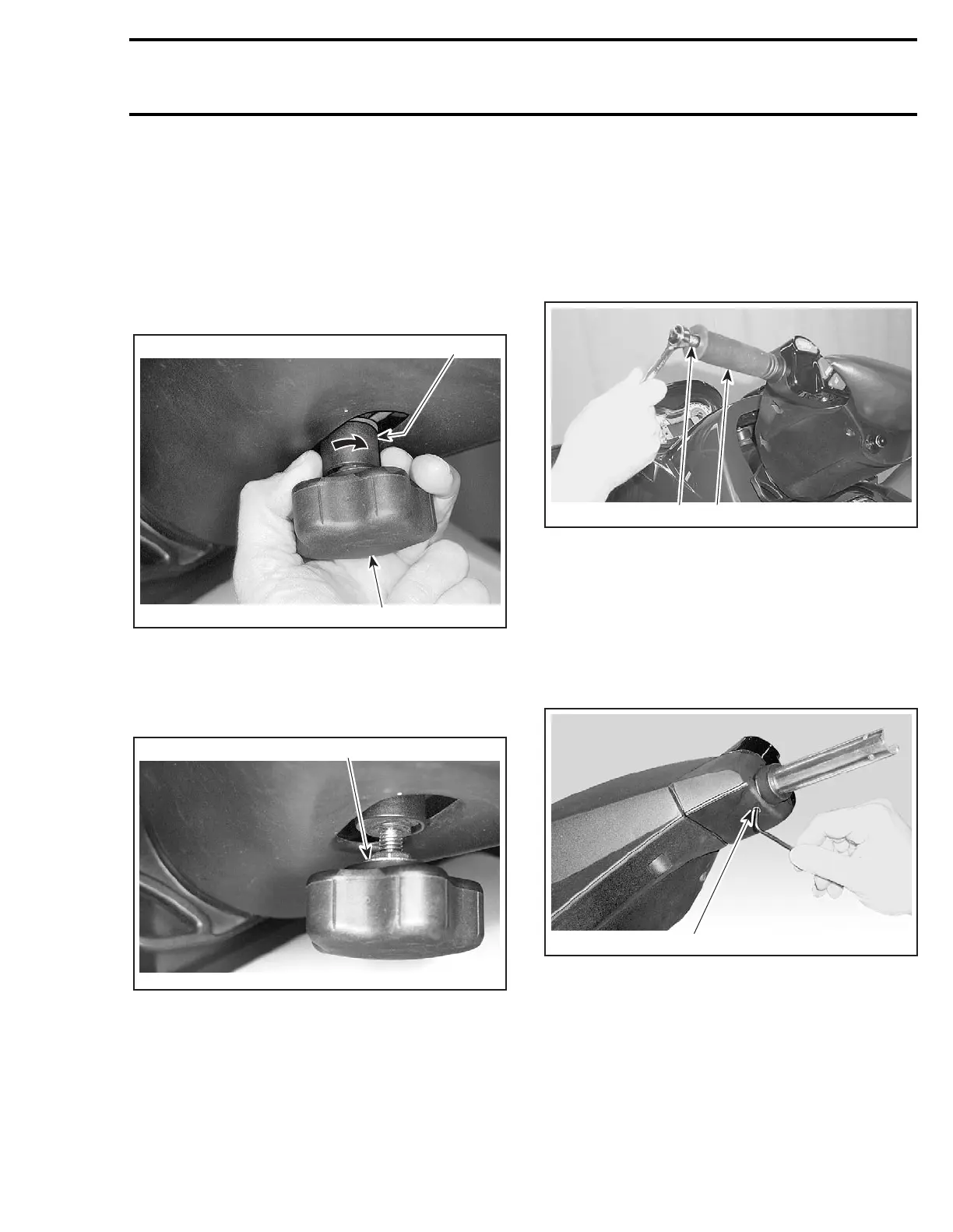

DISASSEMBLY
GTX 4-TEC Supercharged Limited Models Only
Adjustment Handle
Set handlebar to its lowest position by turning ad-
justment handle no. 30 counterclockwise.
While holding adjustment handle no. 30, turn sup-
port bushing no. 31 clockwise.
TYPICAL
1. Adjustment handle
2. Support bushing
Hold jam nut no. 34 and unscrew adjustment han-
dle no. 30 from adjuster screw no. 29.
TYPICAL
1. Loosen jam nut
All Models
Handle Grip and Grip Insert
To remove handle grip no. 1, pull out cap no. 2 and
remove screw no. 3.
Pull out grip and remove grip insert from handlebar
no. 4.
1. Handle grip
2. Remove screw
NOTE: Verify grip insert for damage.
Steering Cover
Remove grips no. 1.
Loosen set screws no. 5 of handlebar housings
no. 6.
GTX DI MODELS AND GTX 4-TEC SERIES ONLY
1. Set screw
2
1
F07K0MA
1
F07K0NA
1
F18K0AA
2
1
F18K0BA
