Section 16 HULL/BODY
Subsection 02 (ADJUSTMENT AND REPAIR)
SMR2003-046_16_02A.FM 16-02-27

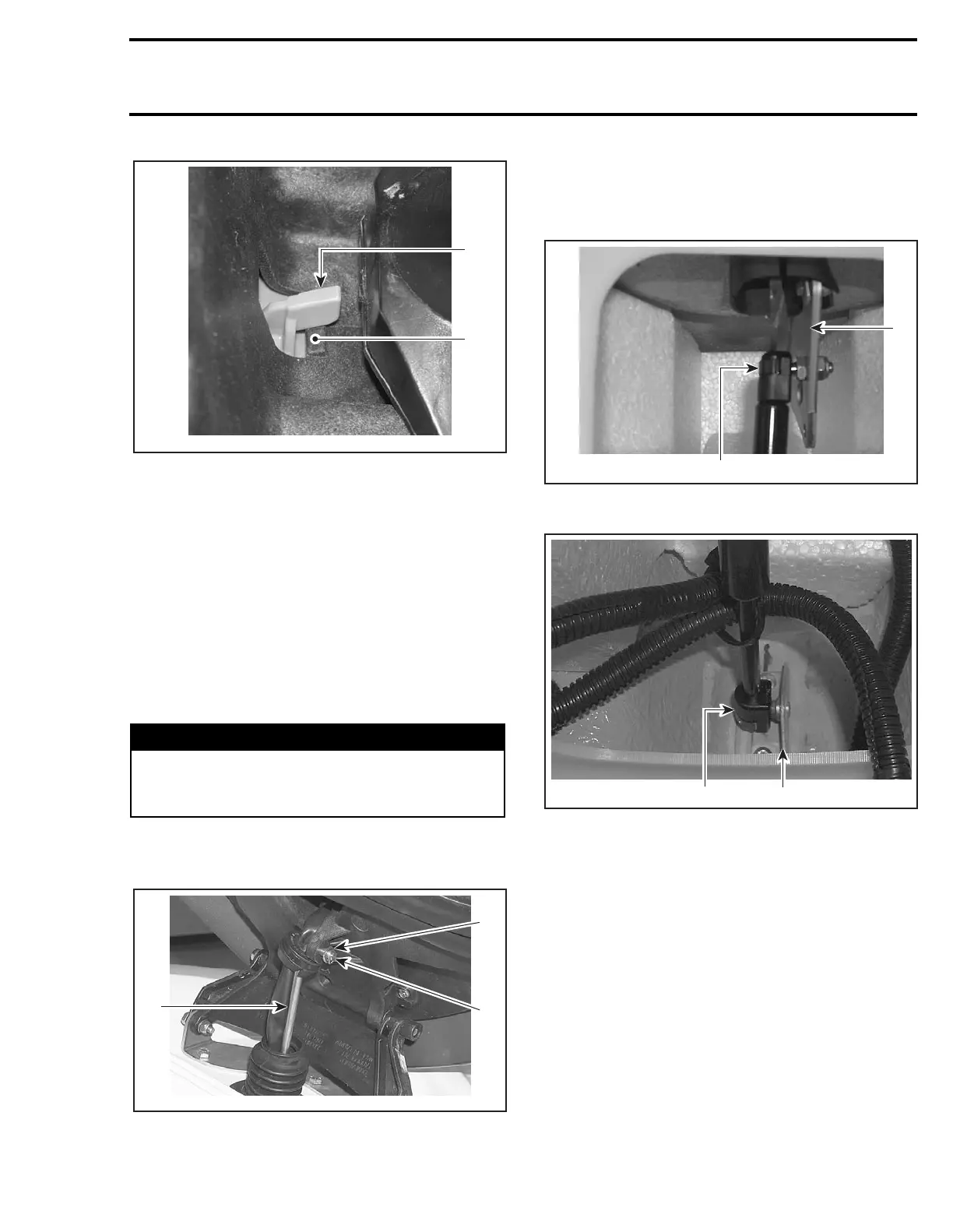

1. Storage cover back locking hook
2. Inner skin back locking bracket
– Secure the inner skin in the storage cover by
using the rubber hammer.
– Fasten the seven inner skin short screws and
the two inner skin long screws.
STORAGE COVER SHOCK
GTX DI, GTX 4-TEC Series, GTI LE and GTI LE
RFI
To remove storage cover shock proceed as fol-
lows:
– Unlock shock rod from circlip and remove wash-
er.
1. Shock rod
2. Circlip
3. Washer
– Release the shock from top linkage bracket and
bottom support bracket by inserting a flat
screwdriver in the shock top and bottom locking
devices.
1. Top linkage bracket
2. Shock top locking device
1. Bottom support bracket
2. Shock bottom locking device
WARNING
Make sure to have a 2x4 piece of wood
around the work bench to support the storage
cover while changing the cover shock.
1
F18L1WA
2
1
F18L1NA
2
3
2
F18L1YA
1
2
F18L1ZA
1
