Section 16 HULL/BODY
Subsection 02 (ADJUSTMENT AND REPAIR)
16-02-26 SMR2003-046_16_02A.FM

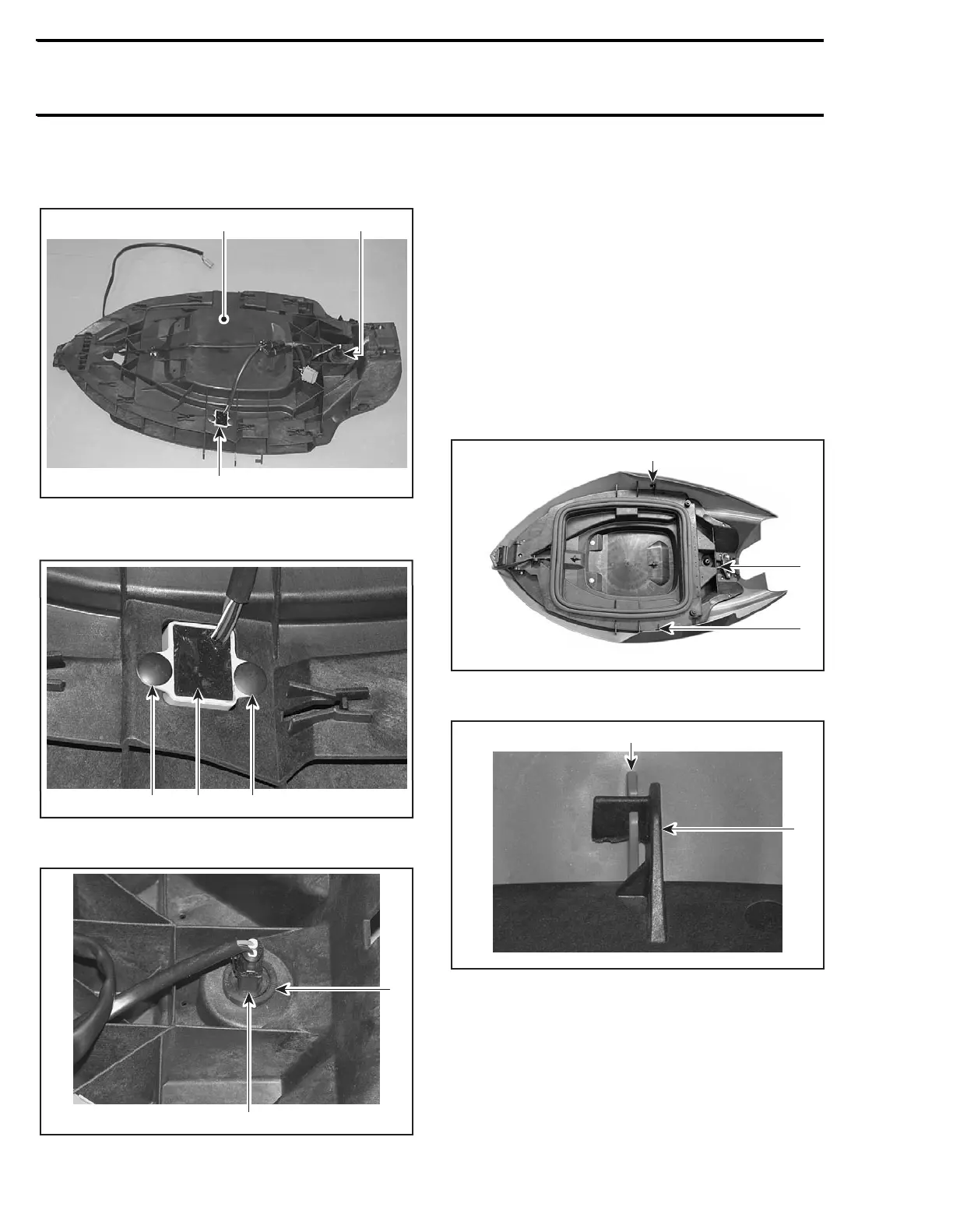

– Remove compass by removing dart (2).
– Remove temperature sensor from grommet.
1. Inner skin
2. Temperature sensor
3. Compass
1. Dart (x2)
2. Compass
1. Temperature sensor
2. Grommet
Install new inner skin in the reverse process.
For installation, proceed as follows:
– Install the compass and secure it with the two
darts.
– Install the temperature sensor in grommet.
– Install the tie-raps around wire harnesses.
– Align inner skin with storage cover and make
sure that the lateral locking hooks in the inner
skin get engaged in the storage cover locking
bracket. If the two lateral locking hooks get
properly aligned and engaged the storage cover
back locking hook will be engaged properly in
the inner skin back locking bracket.
1. Inner skin lateral locking hook
2. Inner skin back locking bracket
1. Storage cover lateral locking bracket
2. Inner skin lateral locking hook
3
1
F18L1SA
2
1
F18L1TA
12
1
F18L1UA
2
F18L1PB
2
1
1
1
F18L1VA
2
