Section 16 HULL/BODY
Subsection 02 (ADJUSTMENT AND REPAIR)
SMR2003-046_16_02A.FM 16-02-45
THRU-HULL FITTING
INSTALLATION
All Models except GTX 4-TEC Series Models

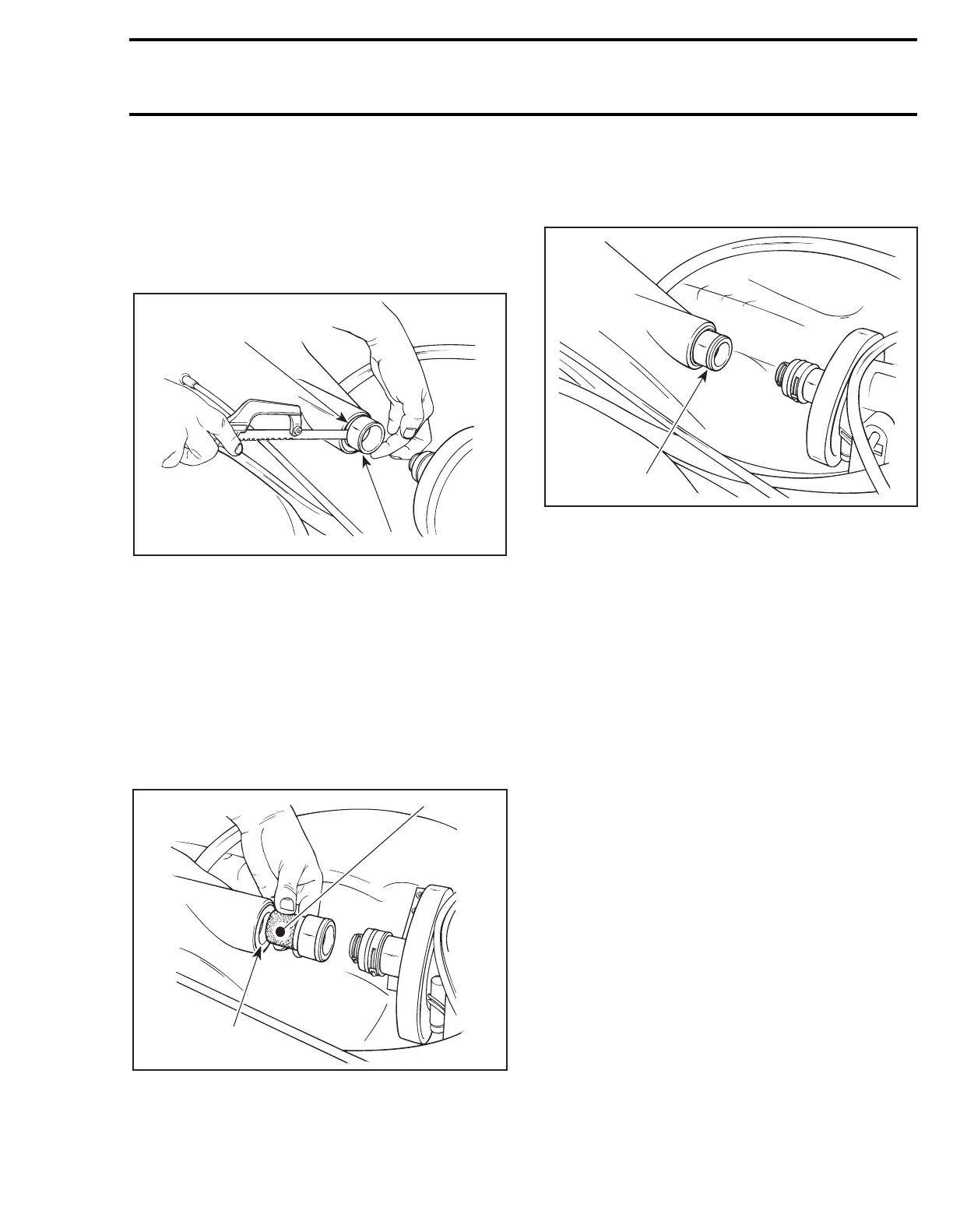

For hull insert repair proceed as follows:
Cut plastic hull insert flush with hull using a saw.
1. Hull
2. Plastic hull insert
Mix epoxy glue (3M-05895), follow manufacturer
instructions.
Apply epoxy glue on aluminum insert (P/N 292 000
075) knurled surface and on plastic insert inner
bore.
CAUTION: If you notice any clearance between
plastic insert and aluminum insert, fill gap with
epoxy glue to obtain good adhesion of alumi-
num insert.
1. Knurled surface
2. Inner bore
Install aluminum insert into plastic hull insert.
NOTE: Align aluminum insert as much as possible
with PTO flywheel.
1. Aluminum insert
NOTE: The epoxy glue curing time is 30 minutes.
F01L2UA
1
2
F01L2VA
1
2
F01L2WA
1
