Section 13 PROPULSION SYSTEM
Subsection 02 (JET PUMP)
SMR2003-040_13_02A.FM 13-02-3

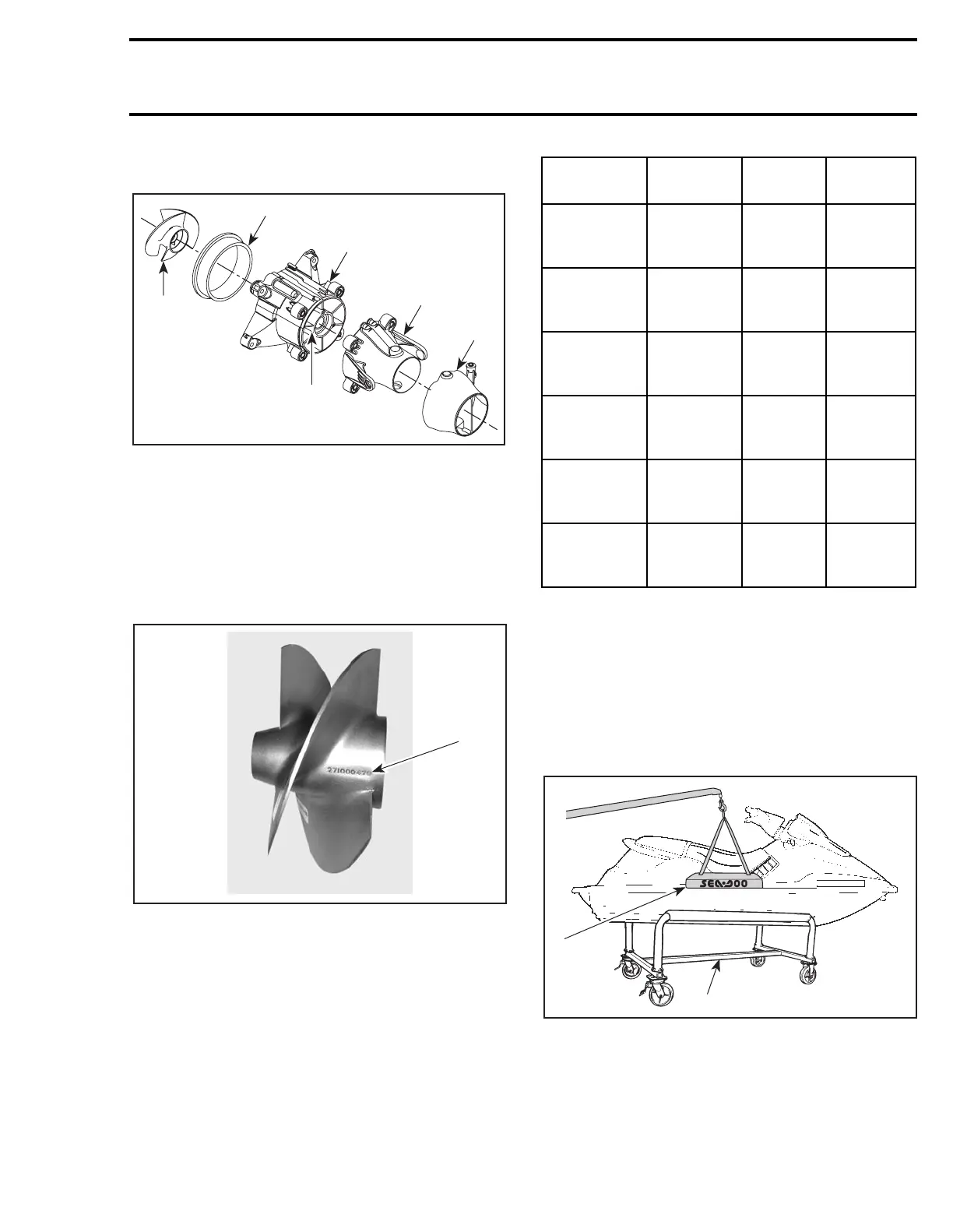

GENERAL
1. Nozzle
2. Venturi
3. Housing
4. Wear ring
5. Impeller
6. Stator
Impeller Identification
To identify the impellers refer to the following il-
lustration and chart.
1. Stamped part number
JET PUMP INSPECTION ON
WATERCRAFT
To work on watercraft, securely install it on a stand.
Thus, if access is needed to water inlet area, it will
be easy to slide underneath watercraft.
A lift kit (P/N 295 100 044) can be used to install
watercraft on a stand.
TYPICAL
1. Lift kit
2. Work stand
F00J0SA
5
2
1
6
3
4
F02J0VA
1
WATERCRAFT
MODEL
IMPELLER
P/N
MATERIAL PITCH
XP DI 271 000 920
Stainless
steel
Progressive
pitch
15° - 21°
GTI 271 001 297
Stainless
steel
Progressive
pitch
9° - 20°
GTI LE 271 001 297
Stainless
steel
Progressive
pitch
9° - 20°
GTX DI 271 001 128
Stainless
steel
Progressive
pitch
15° - 21°
LRV DI 271 000 920
Stainless
steel
Progressive
pitch
15° - 21°
RX DI 271 000 920
Stainless
steel
Progressive
pitch
15° - 21°
F01J42A
1
2
