Section 06 ENGINE MANAGEMENT (RFI)
Subsection 02 (OVERVIEW)
SMR2003-022_06_02A.FM 06-02-3

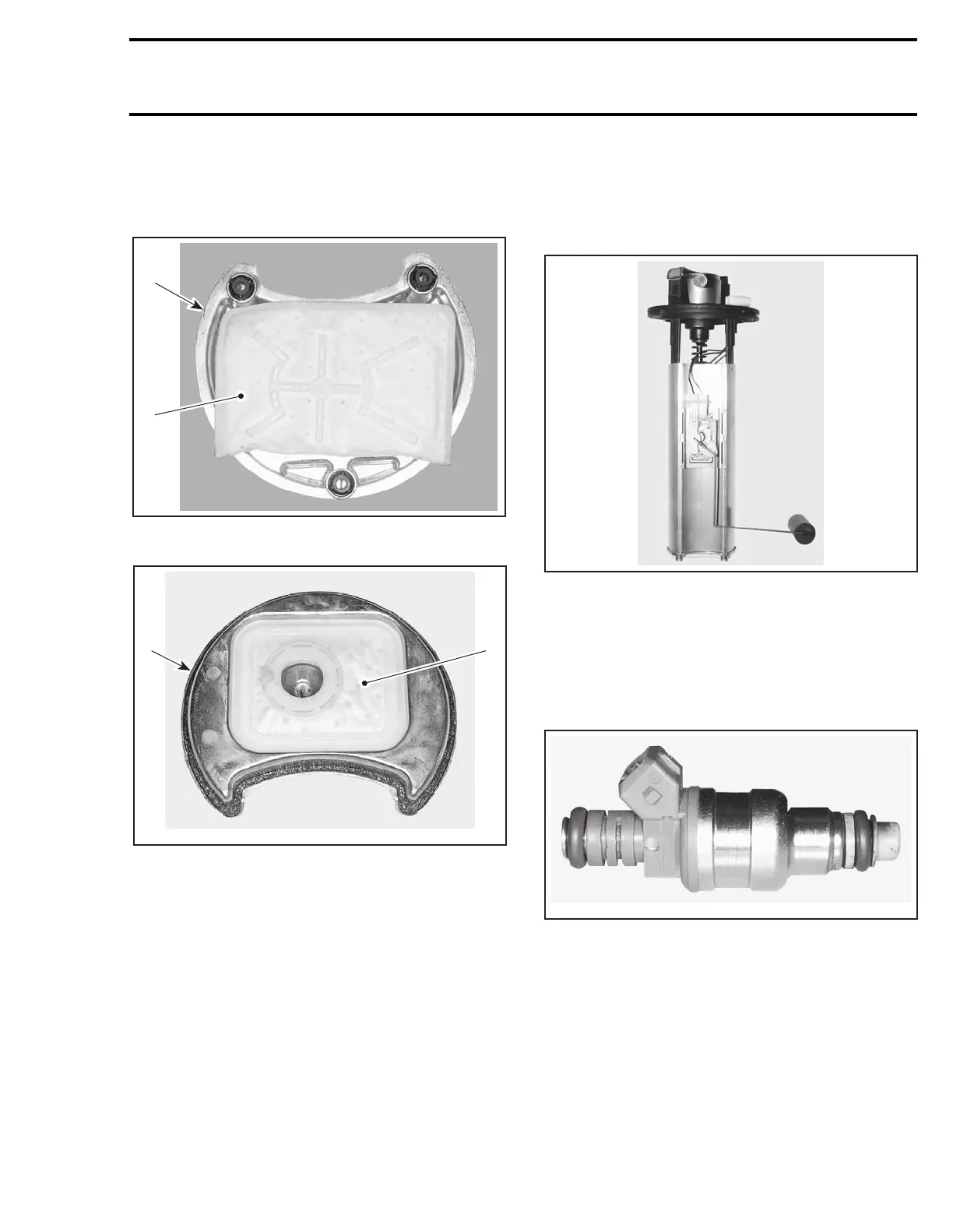

FUEL FILTERS
A dual piece fuel filter protects the fuel pump, reg-
ulator and injectors.
1. Fuel pump assembly
2. External fuel filter
1. End cap of fuel pump assembly removed
2. Internal fuel filter
FUEL PUMP MODULE
All these components are comprised in a single
module mounted in the fuel tank. The fuel gauge
sender is also mounted on this module.
FUEL PUMP ASSEMBLY
FUEL INJECTORS
The injectors inject a metered quantity of fuel from
the fuel rail into the cylinder rear transfer port in
accordance with the signal from the Electronic
Control Unit (ECU).
INJECTOR
F07F0KA
1
2
F07F0LA
2
1
F07F09A
F07F0AA
