Section 07 ENGINE MANAGEMENT (DI)
Subsection 03 (COMPONENT INSPECTION AND ADJUSTMENT)
07-03-8 SMR2003_024 _07_03A.FM
Throttle Cable Adjustment
Mechanically adjust the throttle cable using the ad-
justing device as shown. Slacken lock nut to allow
adjuster rotation. Free-play on lever should be be-
tween 2 and 3.5 mm (1/16 and 1/8 in). When done,
tighten lock nut.

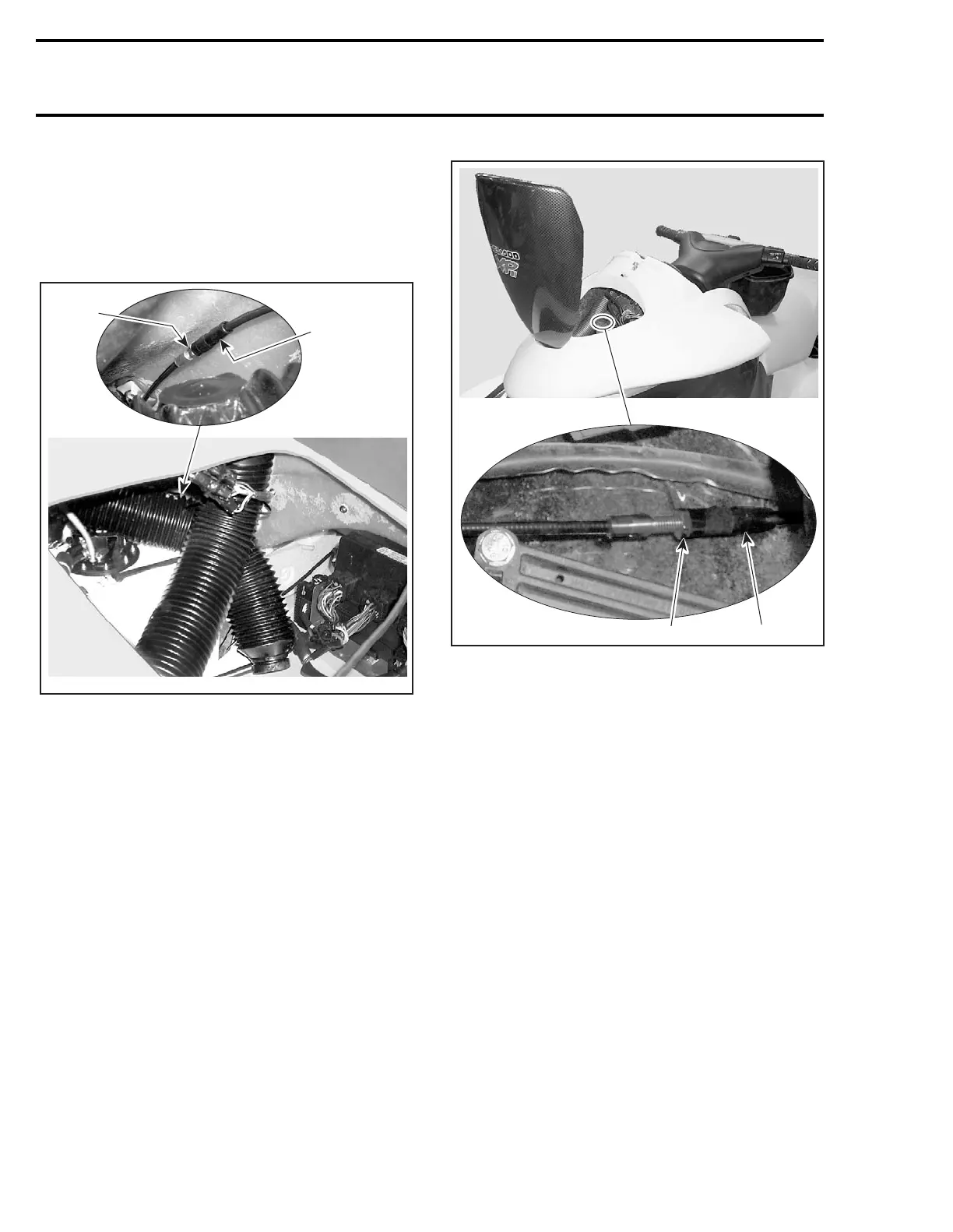

RX DI AND GTX DI MODELS
1. Slacken nut
2. Turn adjuster
XP DI MODELS
1. Slacken nut
2. Turn adjuster
NOTE: On GTX DI models, vent tube removal in
front storage compartment may be necessary to
reach the adjusting device.
CAUTION: Improper cable adjustment will cause
strain on cable and/or damage cable bracket or
throttle lever at handlebar.
Use the vehicle communication kit (VCK) with the
B.U.D.S. software to perform this adjustment.
Choose the Monitoring tab.
Press throttle lever to reach full throttle.
Turn cable adjusting device until throttle opening
meter indicates between 95% and 99%.
1
F08R01A
2
