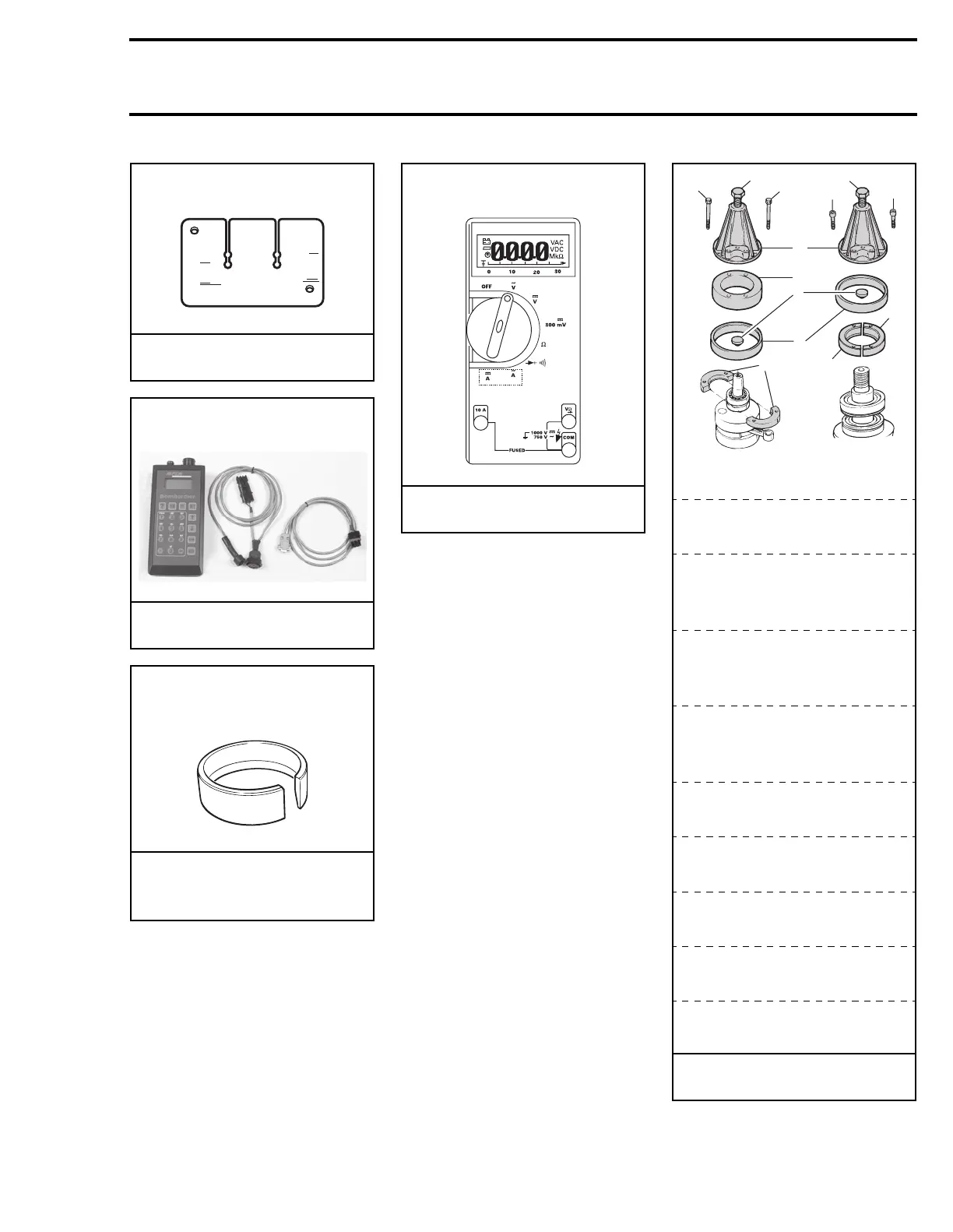

Sea-doo RX - Page 28

Section 01 SERVICE TOOLS AND PRODUCTS
Subsection 03 (OPTIONAL SERVICE TOOLS)
SMR2000-038_01_03A.FM 01-03-3
Rubber pad
P/N 290 877 032
F06B064
APPLICATION
947 engine.
MPEM programmer
P/N 529 035 718
A01B5B4
APPLICATION
All models.
Piston ring compressor (2)
A) P/N 290 876 965 (88 mm)
B) P/N 290 876 979 (82 mm)
F01B1T4
APPLICATION
A) 947 engine.
B) 717 and 787 engines.
Digital multimeter
P/N 529 022 000
F01B1O4
APPLICATION
All models.
F01D885
1) Puller ass’y
P/N 420 877 635
2) Protective cap
P/N 420 876 557
P/N 290 877 414 (947 engine)
3) Ring (both ends)
P/N 420 977 490
P/N 420 977 480 (947 engine)
4) Ring halves (PTO)
P/N 420 977 475 (2)
P/N 420 876 330 (947 engine)
5) Distance ring (MAG)
P/N 420 876 569
6) Ring halves (MAG)
P/N 420 276 025 (2)
7) Screw M8 x 40
P/N 420 840 681 (2)
8) Screw M8 x 70
P/N 420 841 201 (2)
9) Puller bolt
P/N 420 940 755
APPLICATION
All engines.
MAG side
PTO side
8
1
5
2
3
4
4
6
8
7
7
9
9
