Section 04 ENGINE
Subsection 02 (LEAK TEST)
04-02-2 SMR2000-043_04_02A.FM

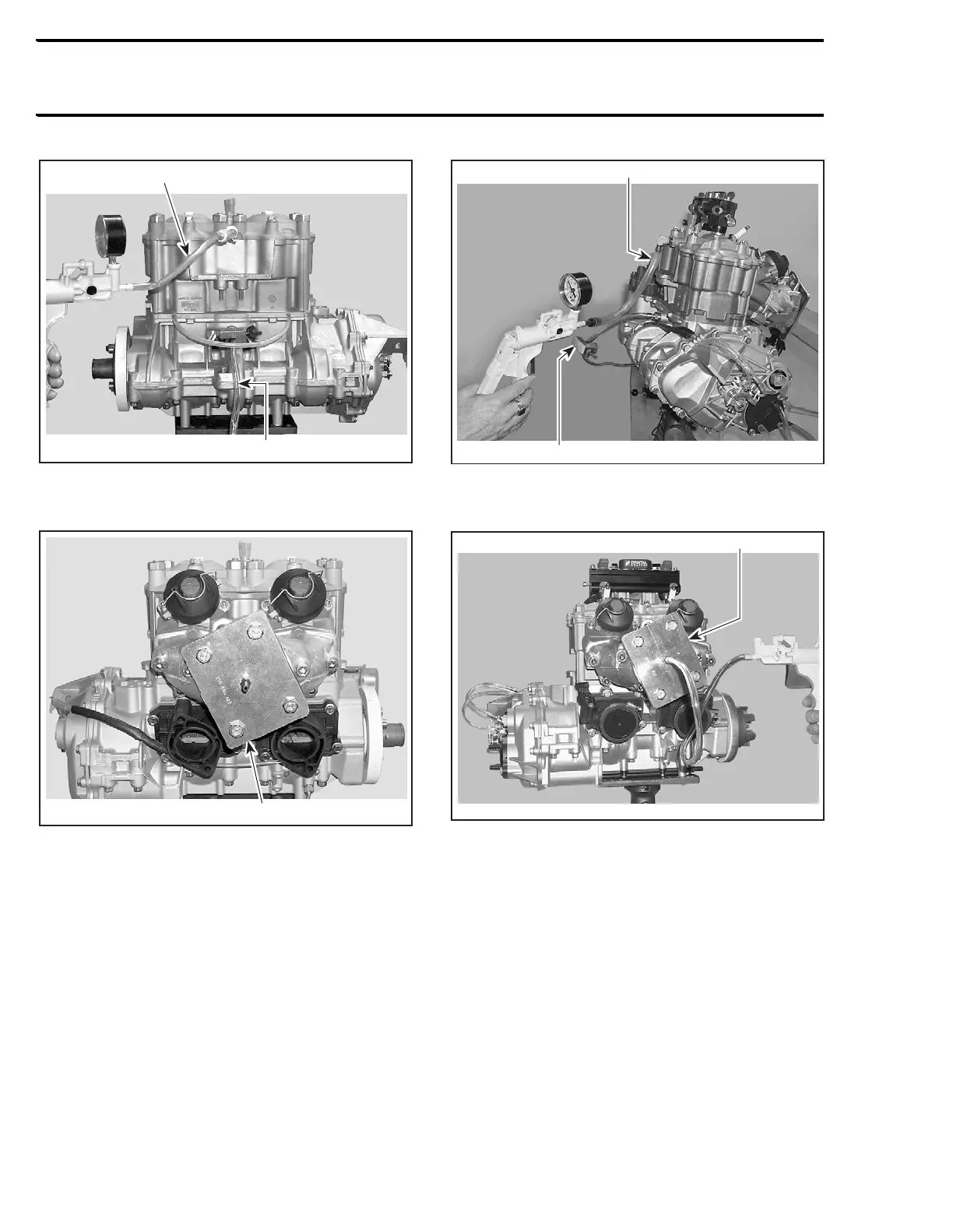

947 CARBURETOR-EQUIPPED ENGINE — REAR VIEW
1. Block engine drain hose with a hose pincher
2. Install pump to inlet drain
947 CARBURETOR-EQUIPPED ENGINE — FRONT VIEW
1. Exhaust manifold plate
947 DI ENGINE — SIDE VIEW
1. Block engine drain hose with a hose pincher
2. Install pump to inlet drain
947 DI ENGINE — FRONT VIEW
1. Exhaust manifold plate
NOTE: Water is not required for testing. On the
DI models, it is not necessary to pressurize the
bottom crankcase cover nor the magneto cover.
There is no possible water leak path toward the
internal components of the engine.
1
2
F08E06A
1
F08D04A
F12E08A
2
1
F12E07A
1
