Section 04 ENGINE
Subsection 03 (REMOVAL AND INSTALLATION)
SMR2000-044_04_03A.FM 04-03-5

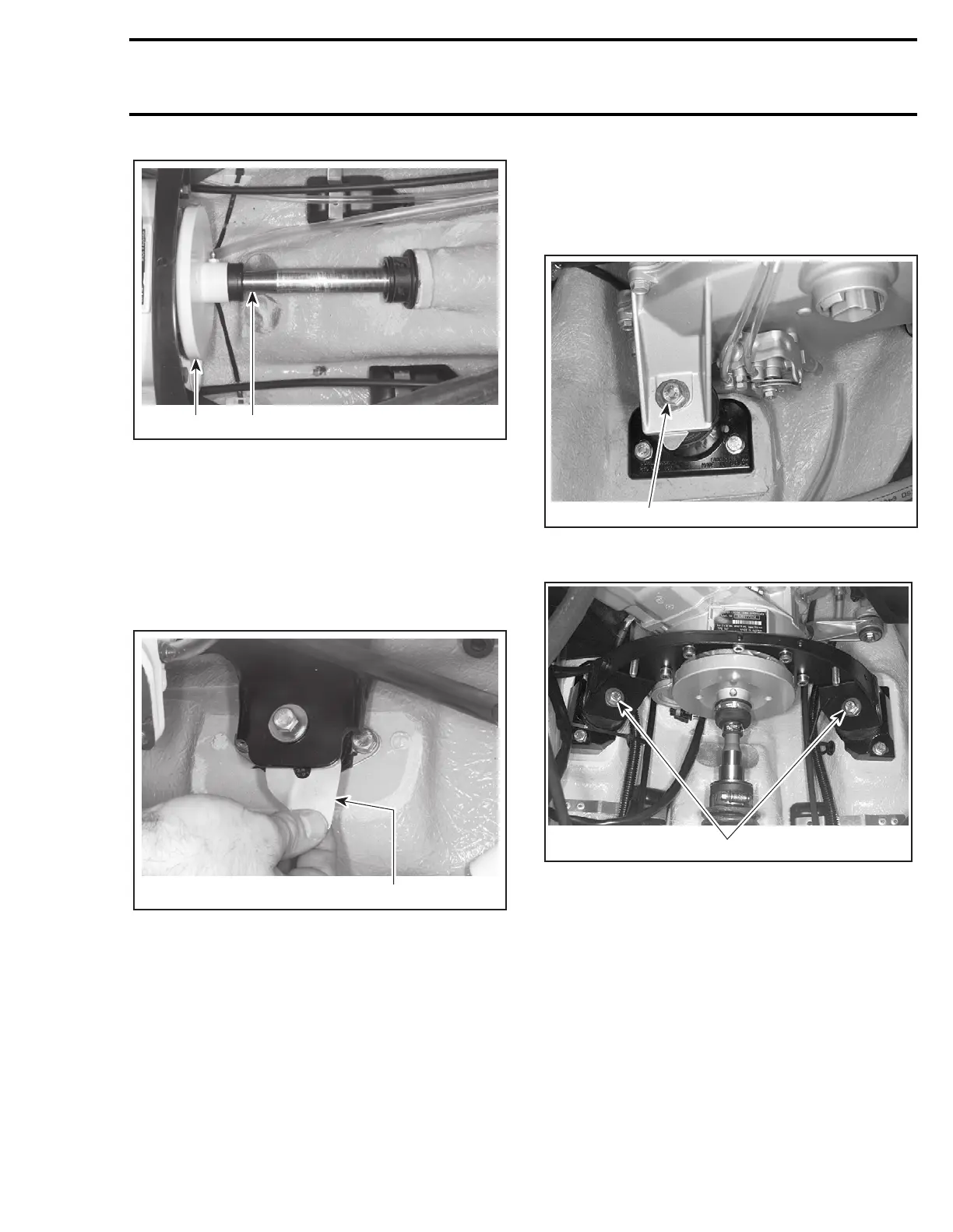

TYPICAL
1. Alignment shaft
2. PTO flywheel
If the alignment is incorrect loosen engine support
screws to enable to align PTO flywheel with shaft
end.
NOTE: Use shim(s) (P/N 270 000 024 or P/N 270
000 025) as necessary between engine supports
and rubber mounts to correct alignment.
TYPICAL
1. Shim
CAUTION: Whenever shims are used to correct
alignment, never install more than 1.3 mm
(0.051 in) shim thickness.
Engine Support Screws
Apply Loctite 243 (blue) on screw threads.
Torque engine support screws to 25 N•m (18 lbf•ft)
when procedure is completed.
FRONT ENGINE SUPPORT
1. Torque to 25 N•m (18 lbf•ft)
REAR ENGINE SUPPORT
1. Torque to 25 N•m (18 lbf•ft)
F07D05A
2 1
F00D0CA
1
F06D35A
1
1
F07F12C
To Next Page
