Sea-doo RX - Page 80

Section 04 ENGINE
Subsection 05 (TOP END)
SMR2000-046_04_05A.FM 04-05-7

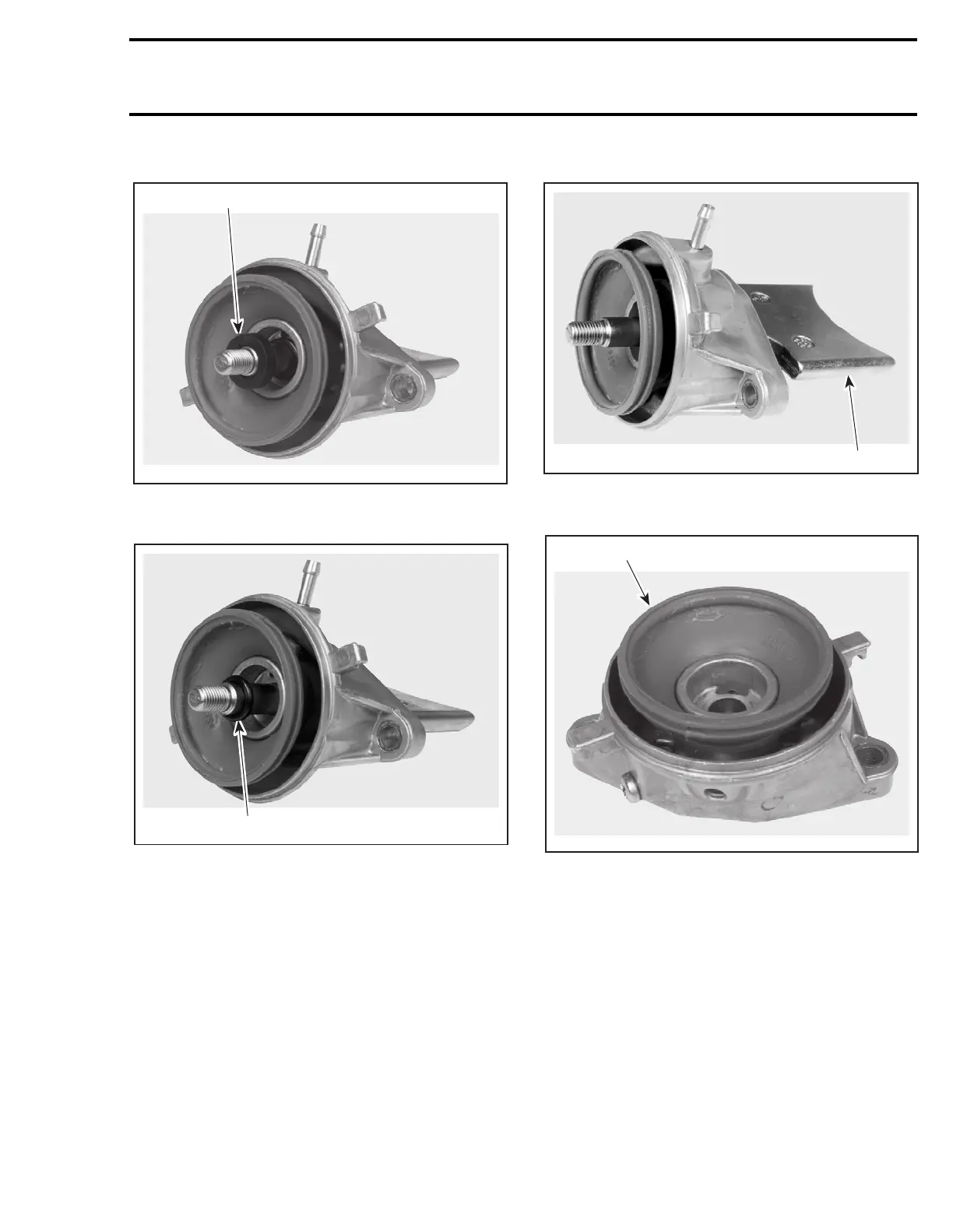

Remove supporting ring no. 28.
1. Remove supporting ring
Remove O-ring no. 23.
1. Remove O-ring
Remove sliding valve no. 22.
1. Remove sliding valve
Remove bellows no. 21.
1. Remove bellows
