Section 04 ENGINE
Subsection 05 (TOP END)
04-05-10 SMR2000-046_04_05A.FM

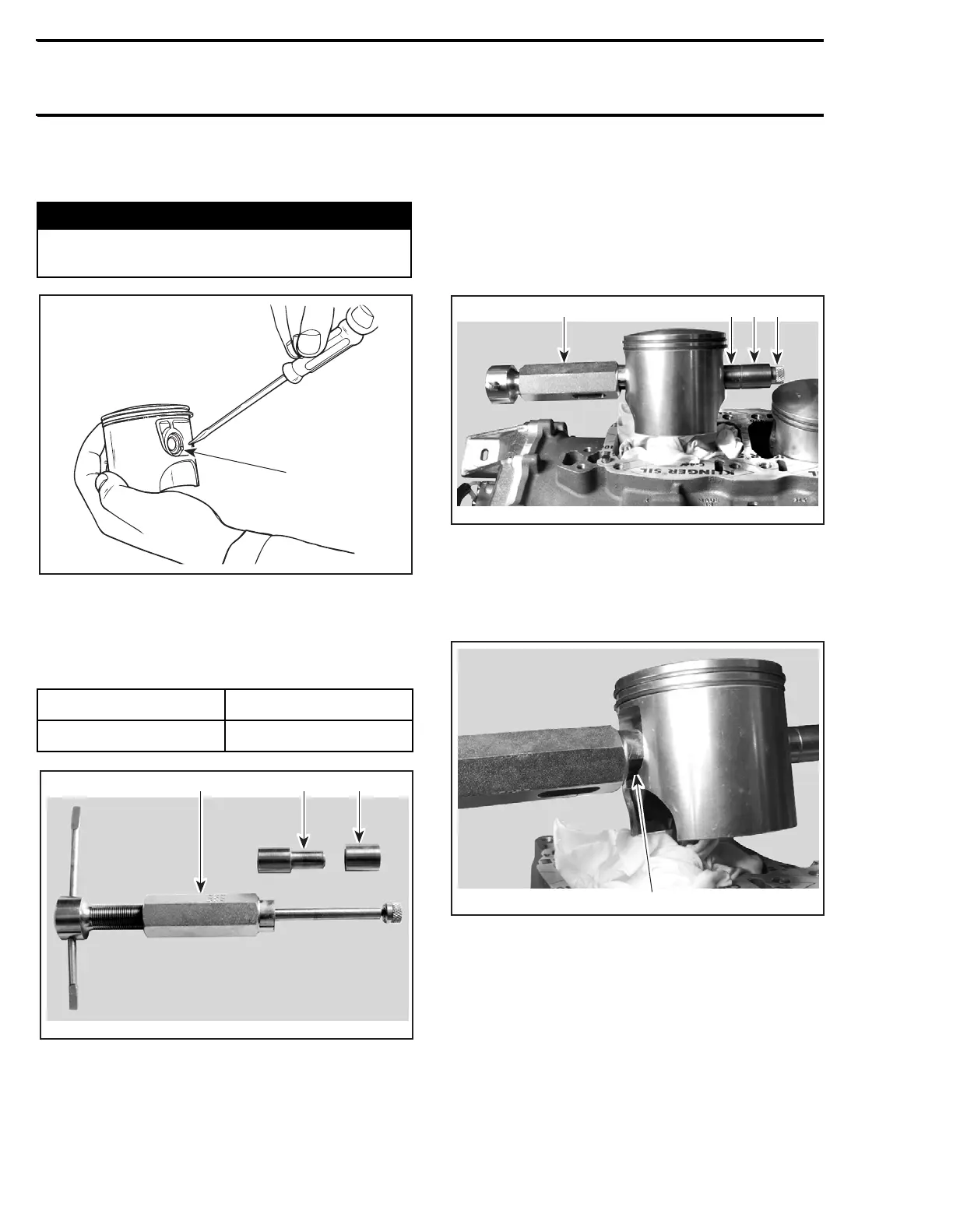

To remove circlip no. 5, insert a pointed tool in pis-
ton notch then pry it out and discard.
TYPICAL
1. Piston notch
To extract piston pin no. 4, use piston pin puller
(P/N 529 035 503) with the appropriate set of
sleeves.
1. Puller
2. Shoulder sleeve
3. Sleeve
– Fully thread on puller handle.
– Insert extractor spindle into the piston pin.
– Slide the sleeve and shoulder sleeve onto the
spindle.
– Screw in extracting nut with the movable ex-
tracting ring towards spindle.
1. Puller
2. Sleeve
3. Shoulder sleeve
4. Extracting nut
NOTE: The tool cutout must be positioned toward
the bottom of the piston.
1. Tool cutout toward bottom of piston
– Firmly hold puller and rotate handle to pull pis-
ton pin no. 4.
– Rotate spindle until the shoulder sleeve is
flushed with the piston recess.
WARNING
Always wear safety glasses when removing
piston circlips.
ENGINE SLEEVE SET
947 P/N 529 035 543
F00B0JA
1 2 3 4
F00B0KA
1
