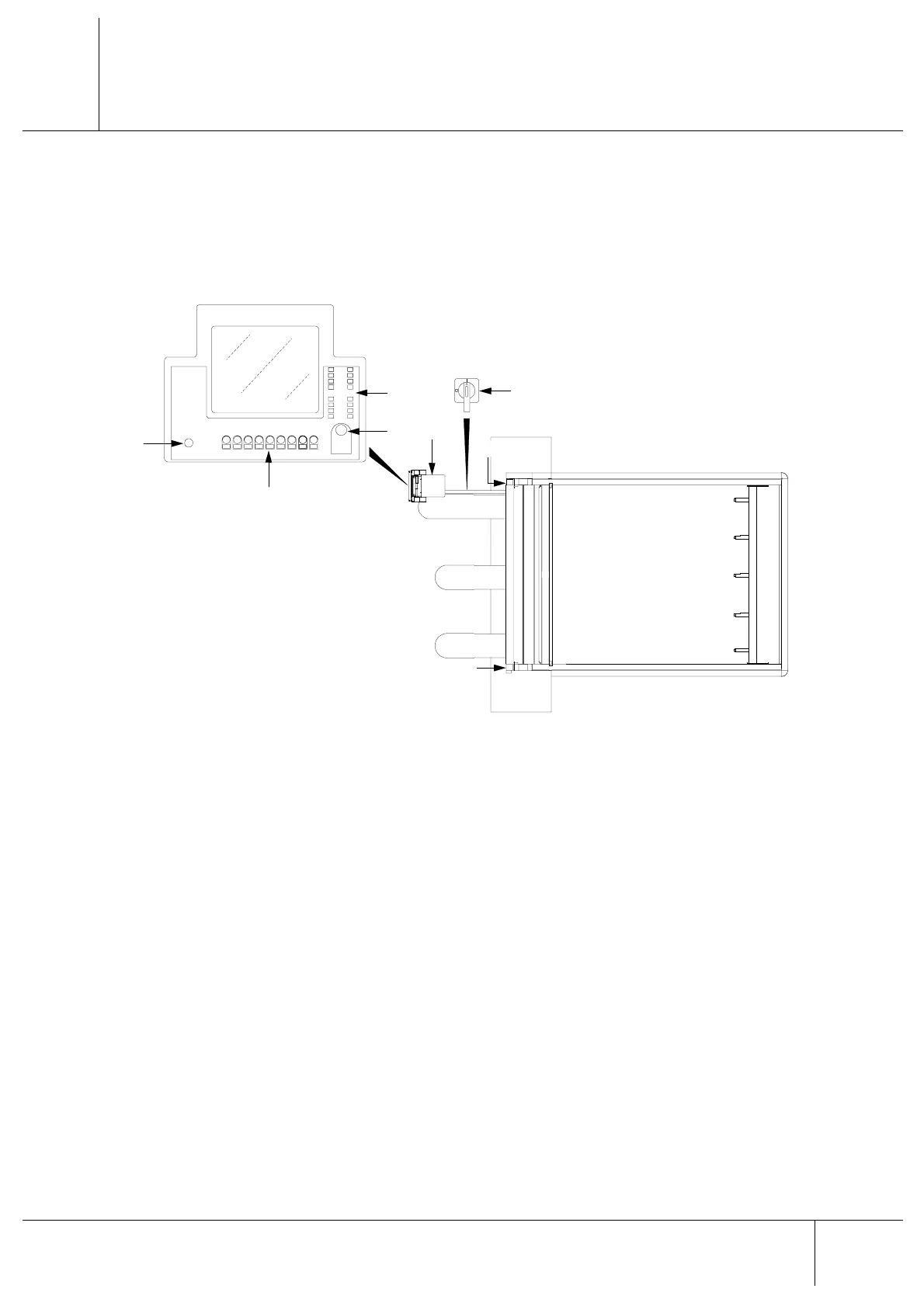

 /D\RXWRIWKH&RQWUROVDQG6LJQDOOLQJ'HYLFHV
$ 0DLQ6ZLWFK: this is used to supply and cut off electric power. The main switch may be
padlocked to prevent any tampering by unauthorised persons.
 = voltage cut off.
 = voltage supplied.
% &RQWURO3DQHO; this contains the main controls and allows the use, through the fitted monitor
and keyboard, of the NC300 numerical control software. For information on the software, see
the Software User’s Manual or the documents enclosed with the PC.
& 0DLQ%XWWRQ3DG; see page 3 - 3 for a description of the controls.
' 2YHUULGH; this is used to make percentage variations in the programmed movement speed of
the operating section.
( 3/& .H\ERDUG; see page 3 - 4 for a description of the controls.
) (PHUJHQF\6WRS%XWWRQUHGPXVKURRPKHDGEXWWRQ: this is used to bring the machine to
an immediate stop. To disengage the button, turn it in the direction of the arrows.
$
)
%
&
'
(
)
)
