Selco EB 70 - Assembling the Blade Locking Flange


BIESSE S.p.A. Woodworking Machinery
(l138h009.fm-141101)
&KDSWHU
5HSODFHPHQWVDQG$GMXVWPHQWV
$VVHPEOLQJWKH%ODGH/RFNLQJ)ODQJH
According to the blade locking system of the machine, to assemble the flange it is necessary to
carry out one of the following operating procedures:
6WDQGDUG6\VWHP

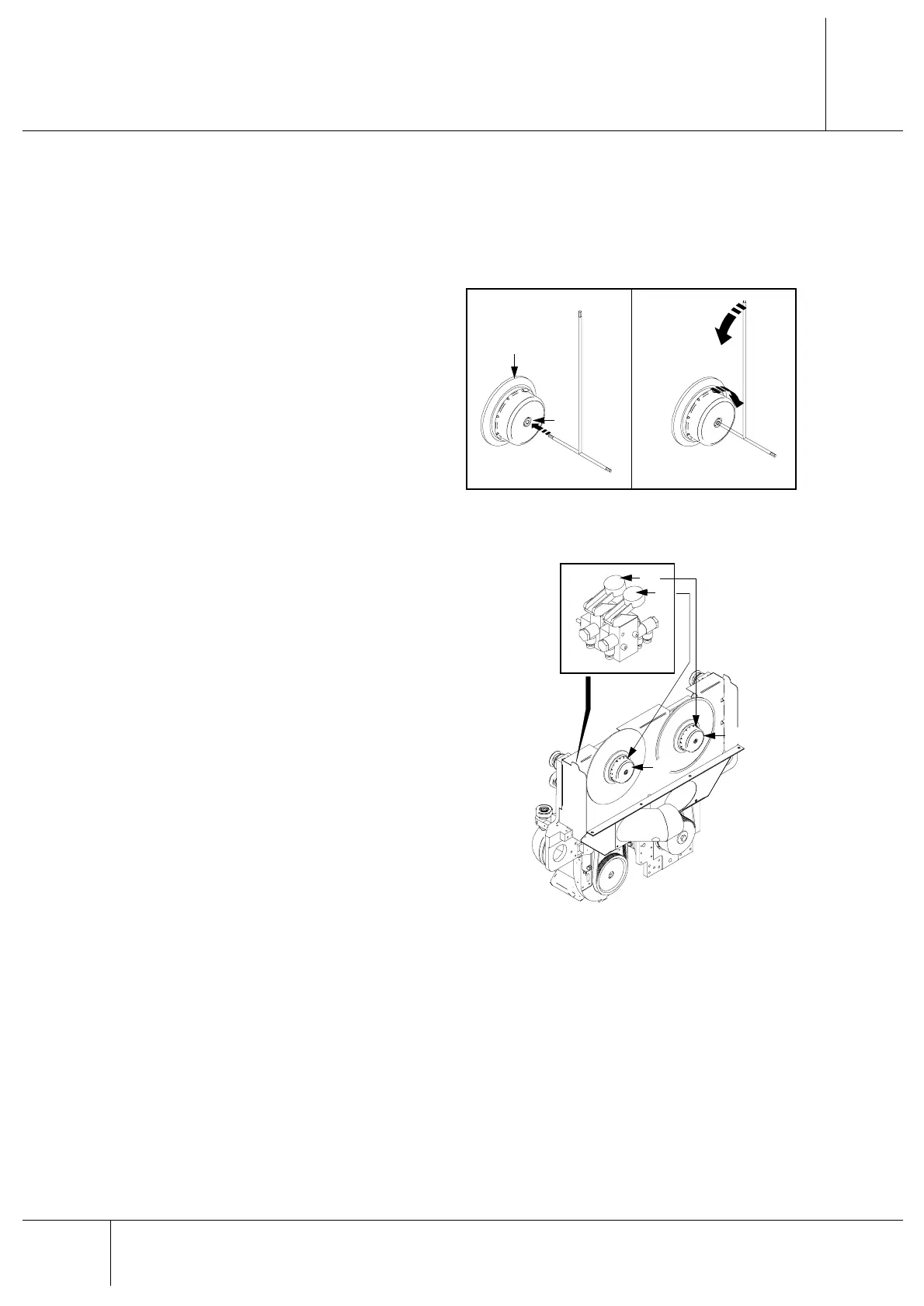

1. Hold the flange $ and insert the t-wrench
in the housing %.
2. Turn simultaneously the key anticlockwise
and the flange clockwise until both can
turn freely without any effort; at this point
the blade has been locked . To avoid any
damages to the locking system, it is
recommended not to tighten deeply.
3QHXPDWLF6\VWHP
1. Apply pressure on the lever & for the
cutting blade flange, or on the lever ' for
the scoring blade flange.
2. With the other hand, replace the flange $
in its housing.
3. Release the lever; the flange is locked.
%
$
12
'
&
$
$
