Selco EB 70 - Disassembling the Blade Locking Flange


&KDSWHU
5HSODFHPHQWVDQG$GMXVWPHQWV
BIESSE S.p.A. Woodworking Machinery
(l138h009.fm-141101)
'LVDVVHPEOLQJWKH%ODGH/RFNLQJ)ODQJH

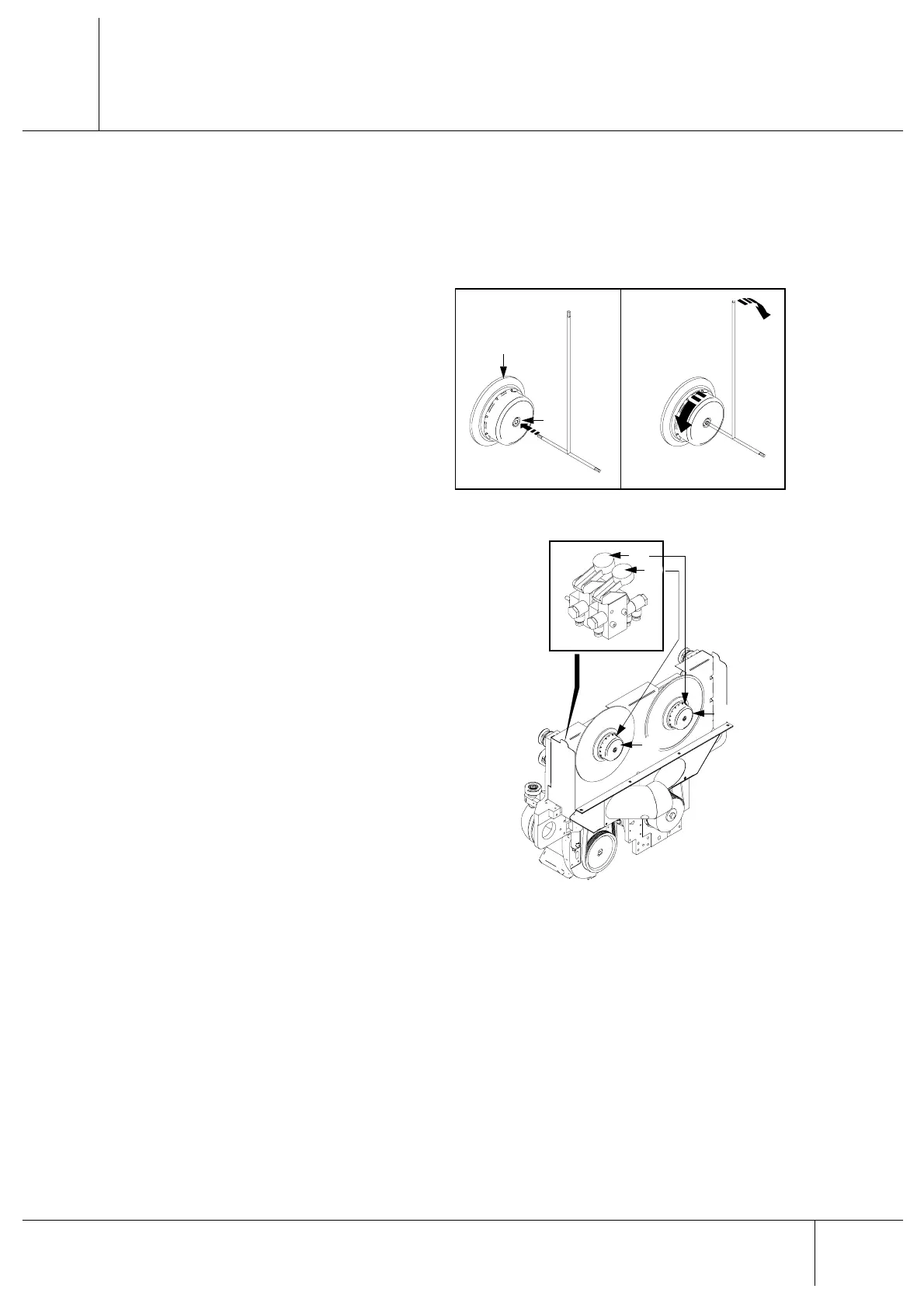

According to the blade locking system of the machine, to disassemble the flange it is necessary to
carry out one of the following operating procedures:
6WDQGDUG6\VWHP
1. Hold the flange $ and insert the t-wrench
in the housing %.
2. Turn simultaneously the t-wrench
clockwise and the flange anticlockwise .
At the completion of the turns, remove the
flange $.
3QHXPDWLF6\VWHP
1. Hold the flange $.
2. With the other hand, apply pressure on
the lever & to disengage the cutting blade
flange, or on the lever ' to disengage the
scoring blade flange.
3. Remove the flange $.
%
$
