& 0DFKLQH3DUWV7R%H7UDQVSRUWHG
Given the variety of optional fittings and possible machine configurations, the following list is
indicative. It refers to a machine model that is equipped to machine 3200 x 3100 mm pieces and
with 6 rear collet stops, 3 air jet panel supports and 9 wheel panel supports.
& 8QORDGLQJWKH0DFKLQH
To unload the machine, read the following lifting instructions. It is recommended to unload firstly
the lighter parts and then the heavier parts. Before lifting any component, discard all fixing
equipment such as rivets, ropes, etc... found on the carrier and which were used to fasten the
machine parts for transportation.
/LIWLQJ

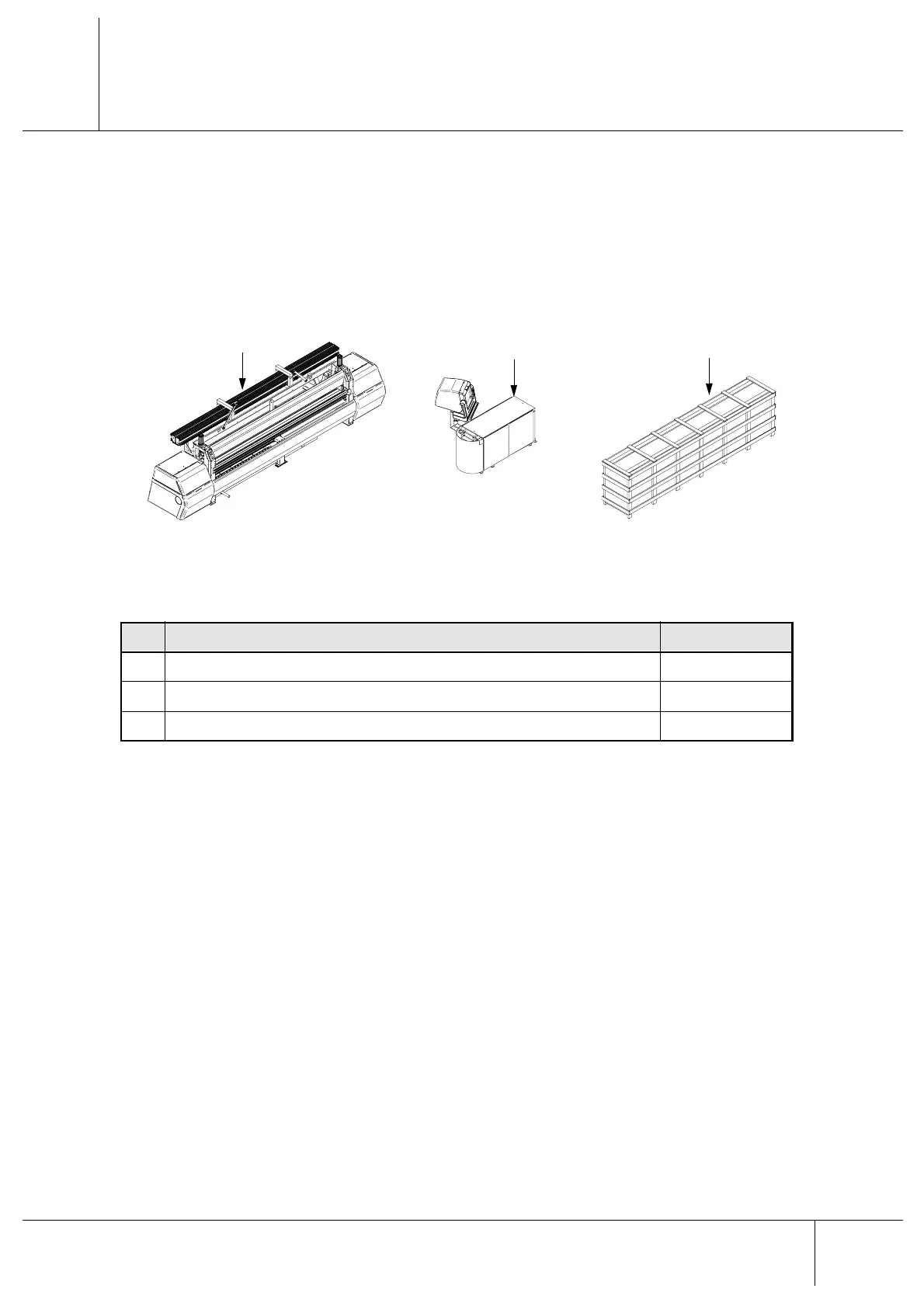

The illustration below shows how to carry out lifting operations for each part of the machine. Use
suitable means and equipment (rods, ropes, etc...) to carry out these operations.
5HI 'HVFULSWLRQ :HLJKWNJ
$ Base - Guides - Pushing device supporting beam 2600
% Electrical cabinet - Control equipment 330
& Wheel supports - Air jet supports - Columns - Guards 420
$
&
%
