Selco EB 70 - Machine Operation; Cutting Patterns


&KDSWHU
%DVLF&RQFHSWV
BIESSE S.p.A. Woodworking Machinery
(l104h044.fm-141101)
 0DFKLQH2SHUDWLRQ

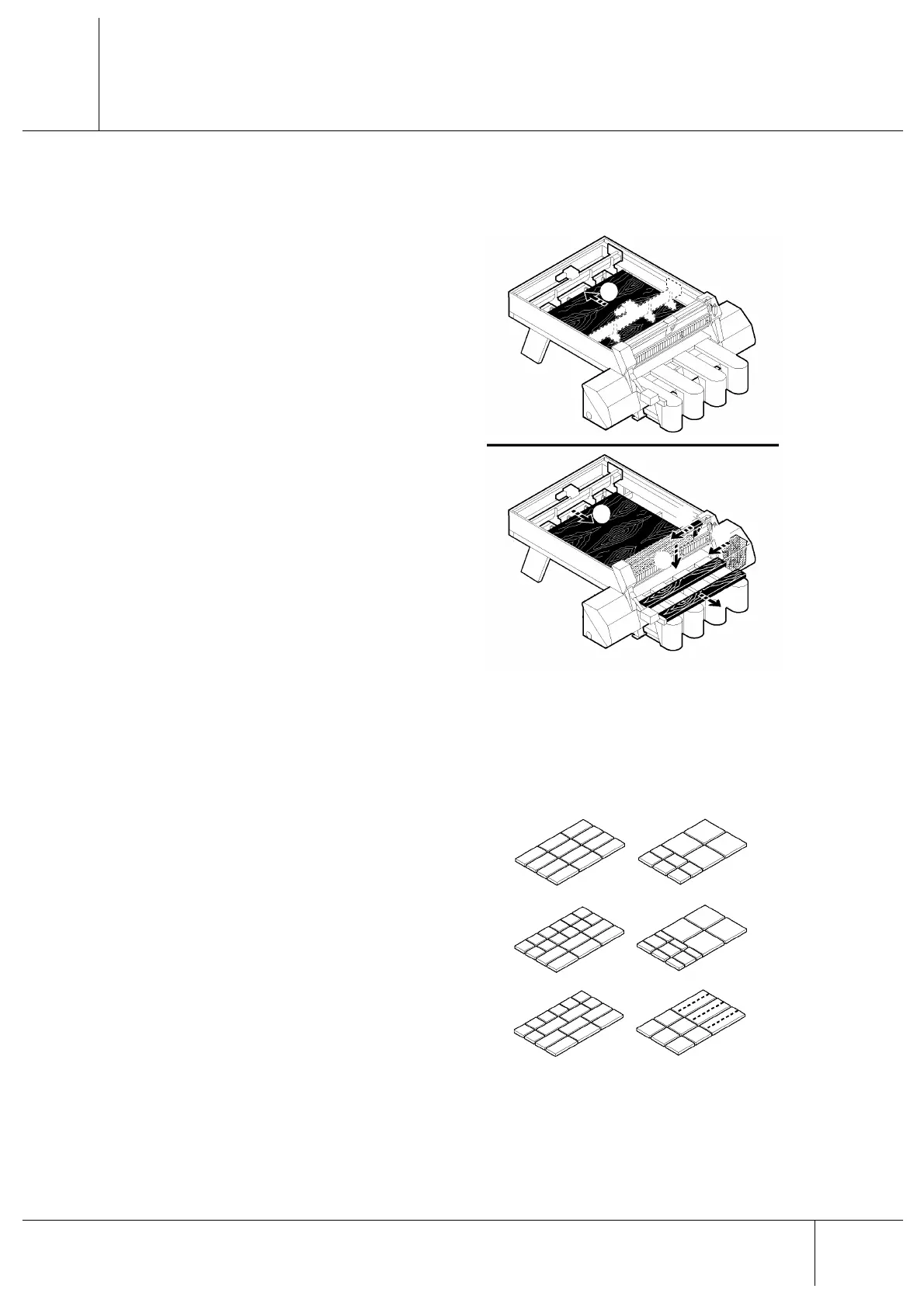

The following section illustrates and describes the
main operations that the machine normally
executes after machining has been started. .
 - Clamping and moving back of the pieces.
 - Pieces forward feed to the cutting area.
 - Side alignment.
 - Presser downstroke.
 - Execution of cuts.
 - Outfeed of the sized pieces.
 &XWWLQJ3DWWHUQV
A cutting pattern consists of a series of rip and cross cuts that are defined using the PATTERN
EDITOR page of the numerical control software (to open this page press F4 from the main menu).
The following are a few examples of cutting patterns that can be used with the machine:
$ - Logic Cutting Pattern
% - 2-Type Differentiated Cutting Pattern
& - 3-Type Differentiated Cutting Pattern
' - Cutting Pattern with Logic Head Cut
( - Cutting Pattern with Differentiated Head Cut
) - Logic Cutting Pattern with Third-phase Cut (Z
Cut).
For more information about how to program cutting patterns, see the Software User’s Manual.






$
%
&
'
(
)
