Selco EB 70 - Pneumatic System Pressure Regulators


BIESSE S.p.A. Woodworking Machinery
(l138h009.fm-141101)
&KDSWHU
5HSODFHPHQWVDQG$GMXVWPHQWV
 3QHXPDWLF6\VWHP3UHVVXUH5HJXODWRUV
If the values for pressure, supply and for the various devices of the pneumatic system should vary

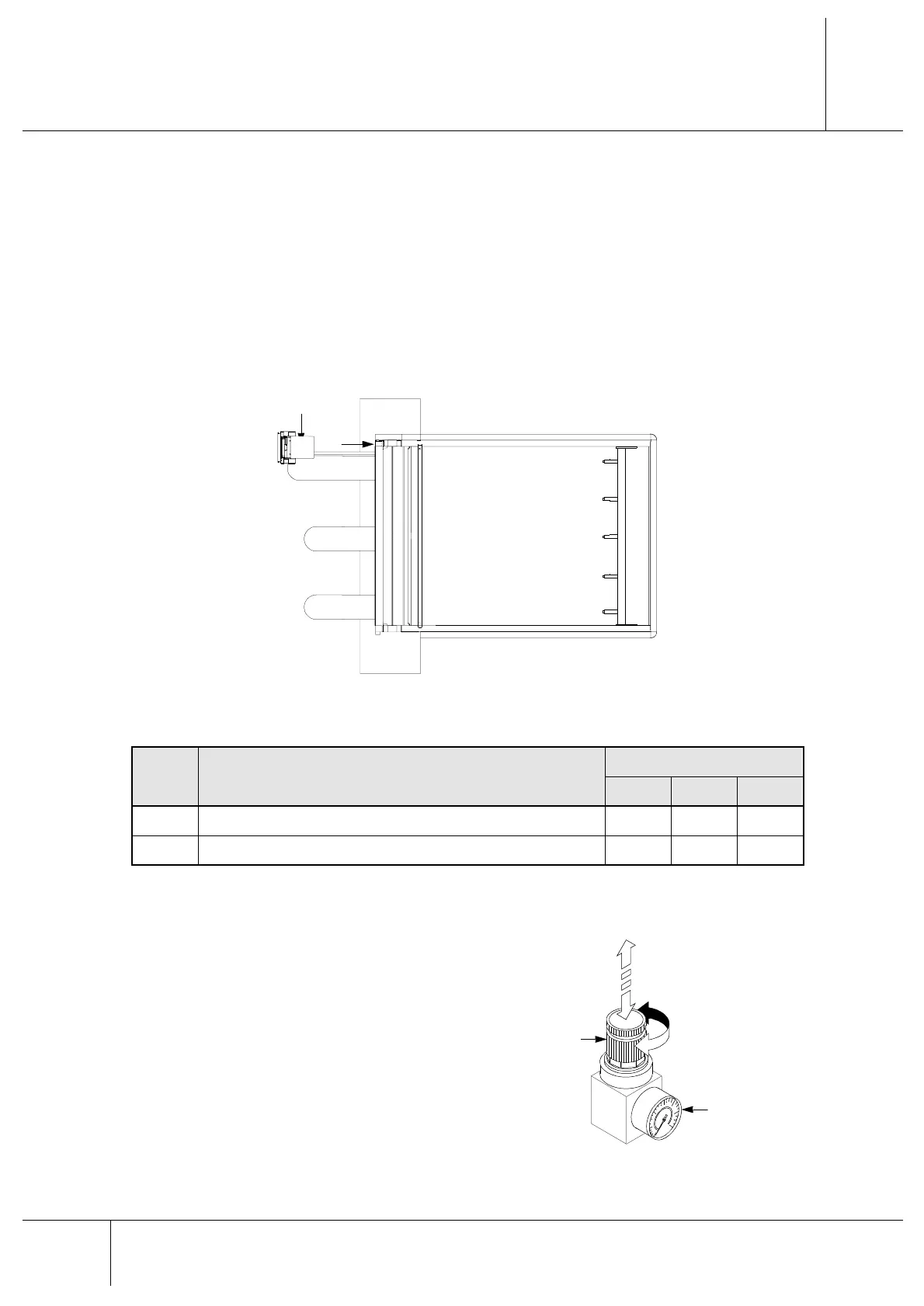

from those set at the time of installation, machine operation anomalies may occur. The figure here
below shows the positions of the pressure regulators, while the table contains the minimum (0LQ)
and maximum (0D[) pressure values as well as the values set when the machine was tested
(6HW). Should there be any anomalies, check that the value given in the table corresponds to that
on the machine and if necessary, adjust the pressure (see page 8 - 9).
3UHVVXUH$GMXVWPHQW
To adjust pressure proceed as follows.
1. Grip the knob $ and pull it upwards until it
releases.
2. Tighten the knob to increase pressure and
loosen it to reduce pressure. Pressure is
displayed on the pressure gauge %.
5HI 3UHVVXUH5HJXODWRUIRU 9DOXHEDU
0LQ 0D[ 6HW
$ Supply 6.5 7 7
% Side Pusher 2 3 3
$
%
A
B
