 6FRULQJ%ODGH$GMXVWPHQW
This adjustment is made to restore perfect scoring and is usually carried out after one or both of
the blades has been replaced. Make several trial cuts to make sure that the adjustment has been
made correctly.
The machine can be set for a manual or an automatic adjustment. The following procedures
concern manual adjustment. For automatic adjustment, please see the Software User’s Manual.

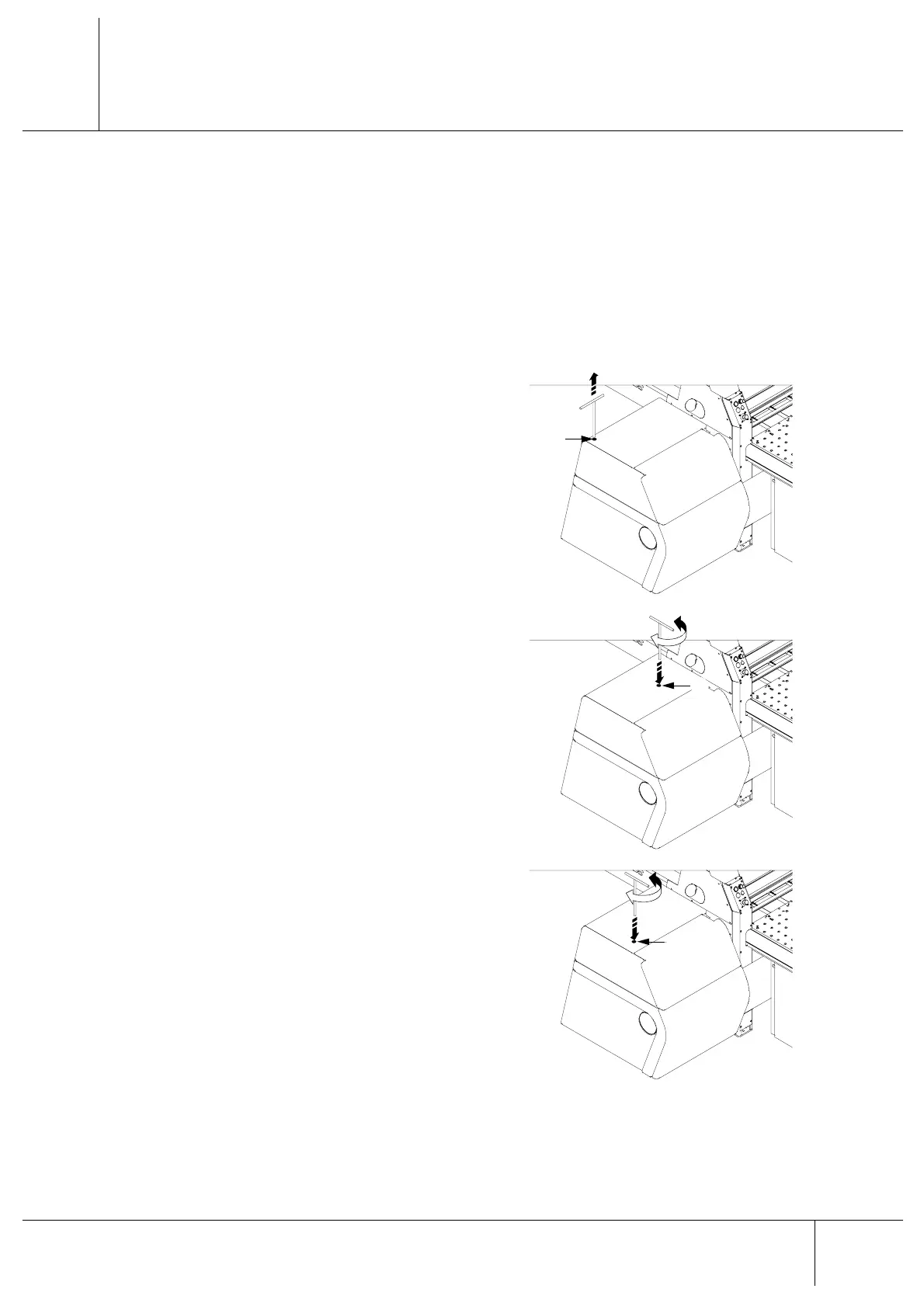

1. Move the blade carriage to the opposite side
to that where the blade change is carried out.
2. Remove the t-wrench from its housing $ on
the left-hand side of the machine. In this way
and for safety reasons, all movements of the
blade carriage are stopped.
3. To adjust the alignment of the scoring blade
with that of the cutting blade, insert the
t-wrench in the hole % and turn it. If the
direction of the turn is clockwise, the blade
moves towards the front part of the machine.
If the direction of the turn is anticlockwise, the
blade moves in the opposite direction. One
turn of the t-wrench corresponds to a shift of
PP.
4. To adjust the scoring blade depth, insert the
t-wrench in the hole & and turn it. If the
direction of the turn is clockwise, the scoring
depth decreases. If the direction of the turn is
anticlockwise, the scoring depth increases.
One turn of the t-wrench corresponds to a
shift of PP.
5. Once adjustments have been completed,
replace the t-wrench in its housing $.
$
%
&
