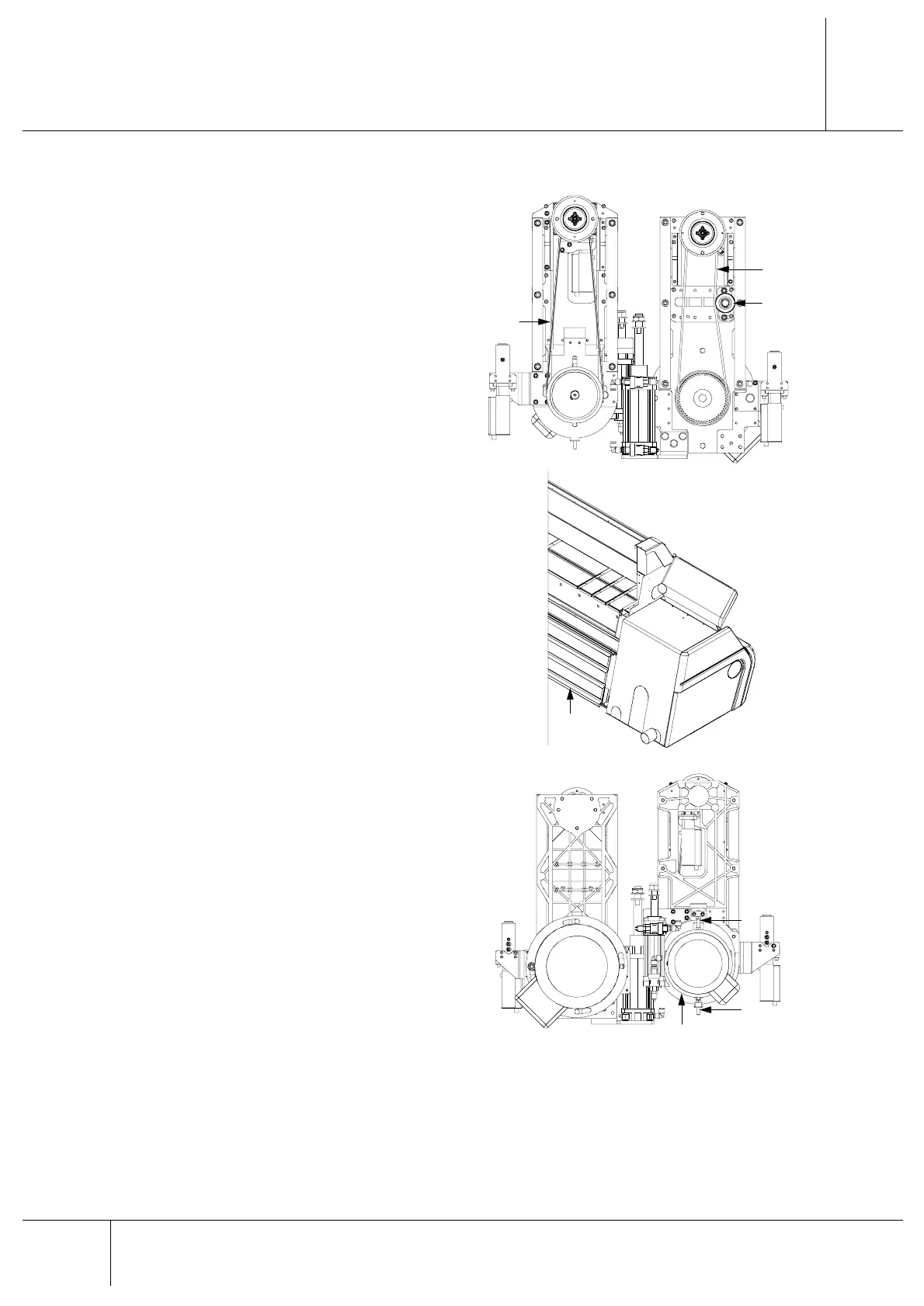

9. Loosen slightly the screws which hold in
place the belt tightener -.
10. Replace the cutting blade belt . with a new
one.
11. Vary the position of the belt tightener -LQ
RUGHUWRWHQVLRQWKHFXWWLQJEODGHEHOW..
To obtain the precise belt tension, it is
recommended to adopt the methods
described in the paragraph “Measuring the
Blade Belts Tension” on page 8 - 6.
12. In order to remove the scoring blade belt /,
disassemble the cover 0 located on the
back of the base and access the rear part
of the operating section (after having
moved it manually).
13. Loosen slightly the screws which lock the
motor 1.
14. Adjust screws 2 and 3 to lift the motor 1 at
such a height as to be able to remove the
belt /.
15. Move to the front part of the operating
section and replace the belt / with a new
one.
16. Adjust screws 2 and 3 to tension the
scoring blade belt /. In order to obtain the
precise belt tension, it is recommended to
adopt the methods described in the
paragraph “Measuring the Blade Belts
Tension” on page 8 - 6.
17. When tensioning has been completed,
tighten the motor locking screws and
reassemble all hardware.
-
.
/
0
2
3
1
