Control Panel
The control panel provides a user interface consisting of a membrane panel keyboard, Liquid Crystal
Display (LCD), external power present indicator, Power Cartridge capacity indicator, alarm status
indicators, and an audio transducer. The user interface informs the user of the system status and allows
the user to set the desired flow rate and flow mode.

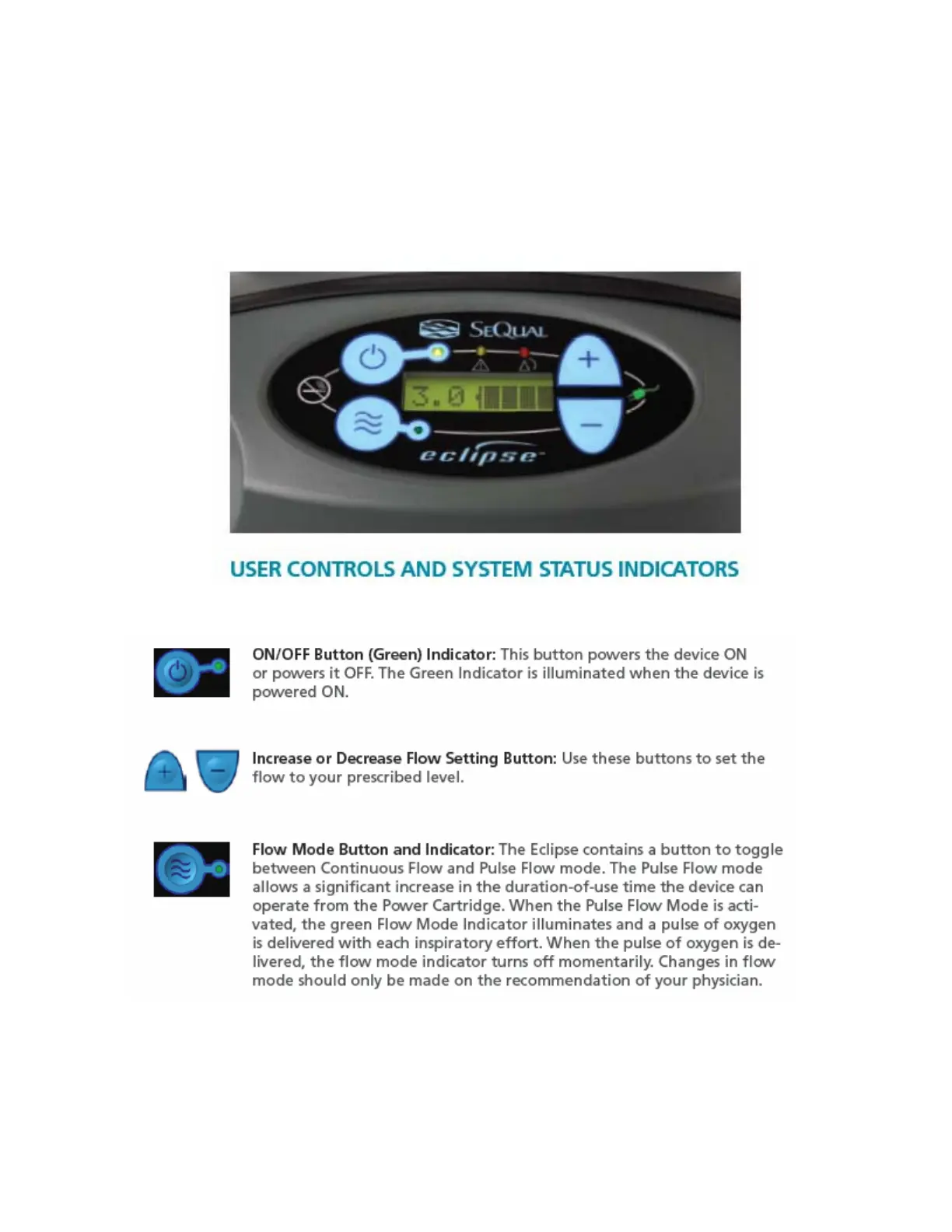

Figure 3
