73

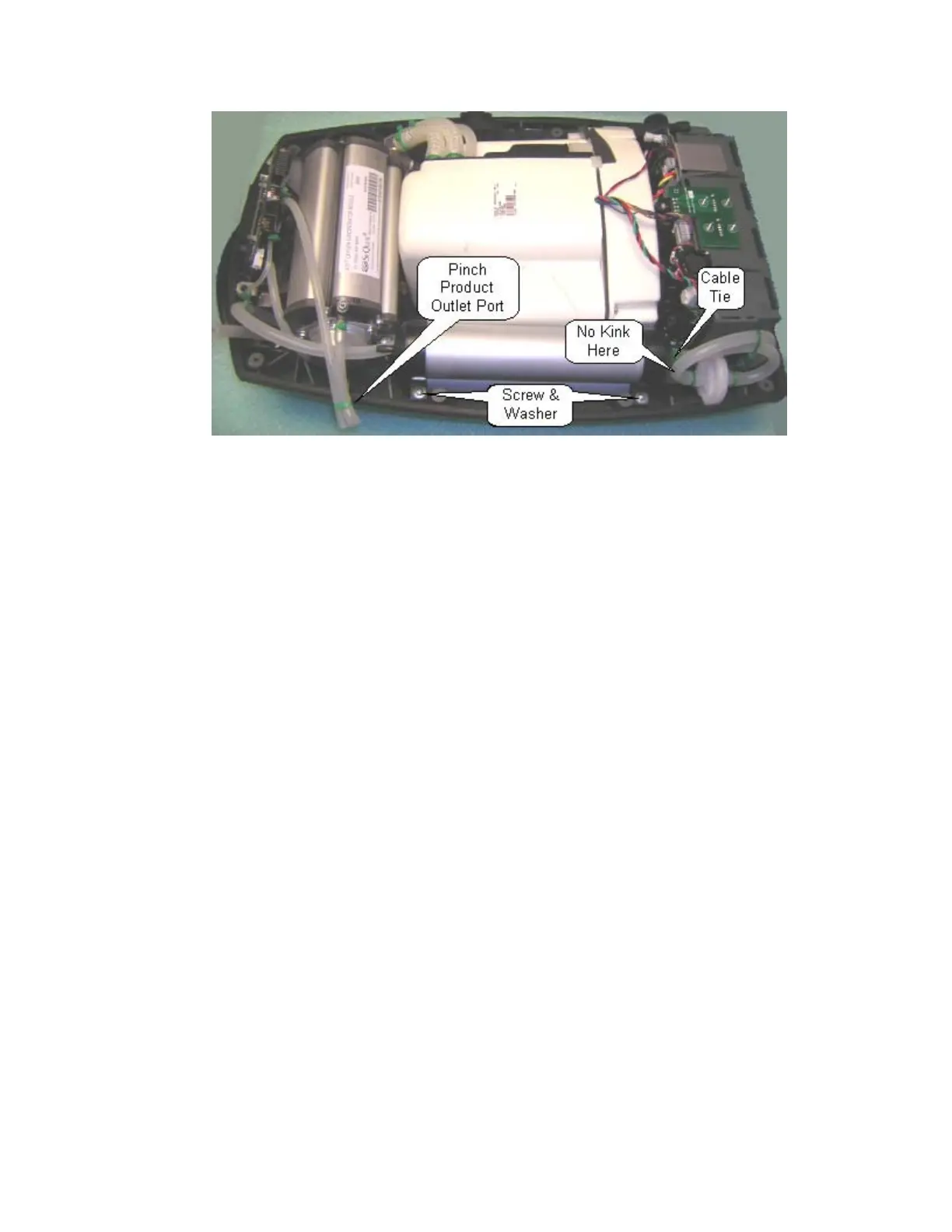

Figure 36: Product Tank Removal.
4. Remove the Product Tank.
5. Cut the 2 green cable ties that secure the silicone tubes to the bottom of the Product Tank as
shown in Figure 35 above. Disconnect these two silicone tubes.
6. To reinstall, secure the 2 silicone tubes coming from the HEPA filter to the bottom ports of the
Product Tank. Orient the HEPA filter so the loop is above the filter as shown in Figure 36 above.
Secure joints with cable ties. Inspect the tubing to ensure the tubing is not kinked.
7. Install the silicone tube that comes from the ATF product port to the bottom Product Tank as
shown in Figure 35 above. Secure with a cable tie. Inspect the tubing to ensure the tubing is not
kinked.
8. Install the silicone tube that comes from the flow tube of the control module to the top product
tank as shown in Figure 35 above. Secure with a cable tie. Inspect the tubing to ensure the
tubing is not kinked.
9. Install Product Tank with 2 screws and 2 flat washers into the Unit Case as shown in Figure 36
above.
10. Installation of the Unit Cover on the unit is described in the Remove and Replace of the Unit
Cover.
