SeQual Technologies Eclipse 2 - Figure 49: Compressor Box Electrical Connections; Figure 50: Exhaust Tube Removal

84
Blower Wire
Harness
Compressor
Power Wire
Harness
Compressor
Signal Wire
Harness

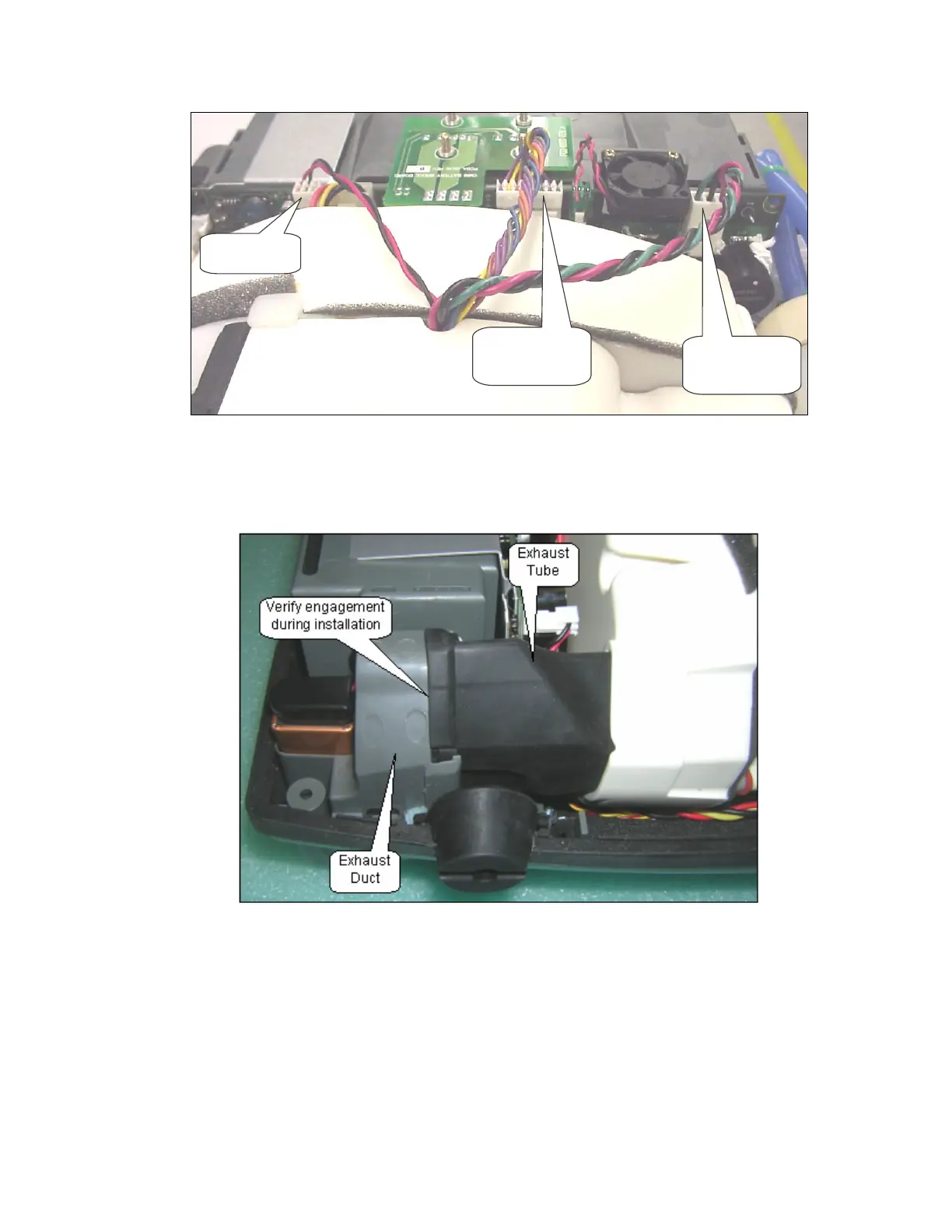

Figure 49: Compressor Box electrical connections.
4. Remove the Exhaust Tube as shown in Figure 50.
Figure 50: Exhaust Tube Removal.
5. Cut the three green cable ties shown in Figure 51. Disconnect the two braided hoses from the
pressure and vacuum ports of the ATF. Cap the three ATF module ports using tight fitting vinyl
caps or vinyl electrical tape.
