SeQual Technologies Eclipse 2 - Figure 51: Removal of Compressor Pressure and Vacuum Hoses from Atf Module

85
CAUTION:
Once the braided hoses are disconnected from the ATF Module the
ATF Module is exposed to the atmosphere. Cap the ATF Module ports
immediately
in order to minimize exposure to debris and humidity
which may result in ATF Module damage.

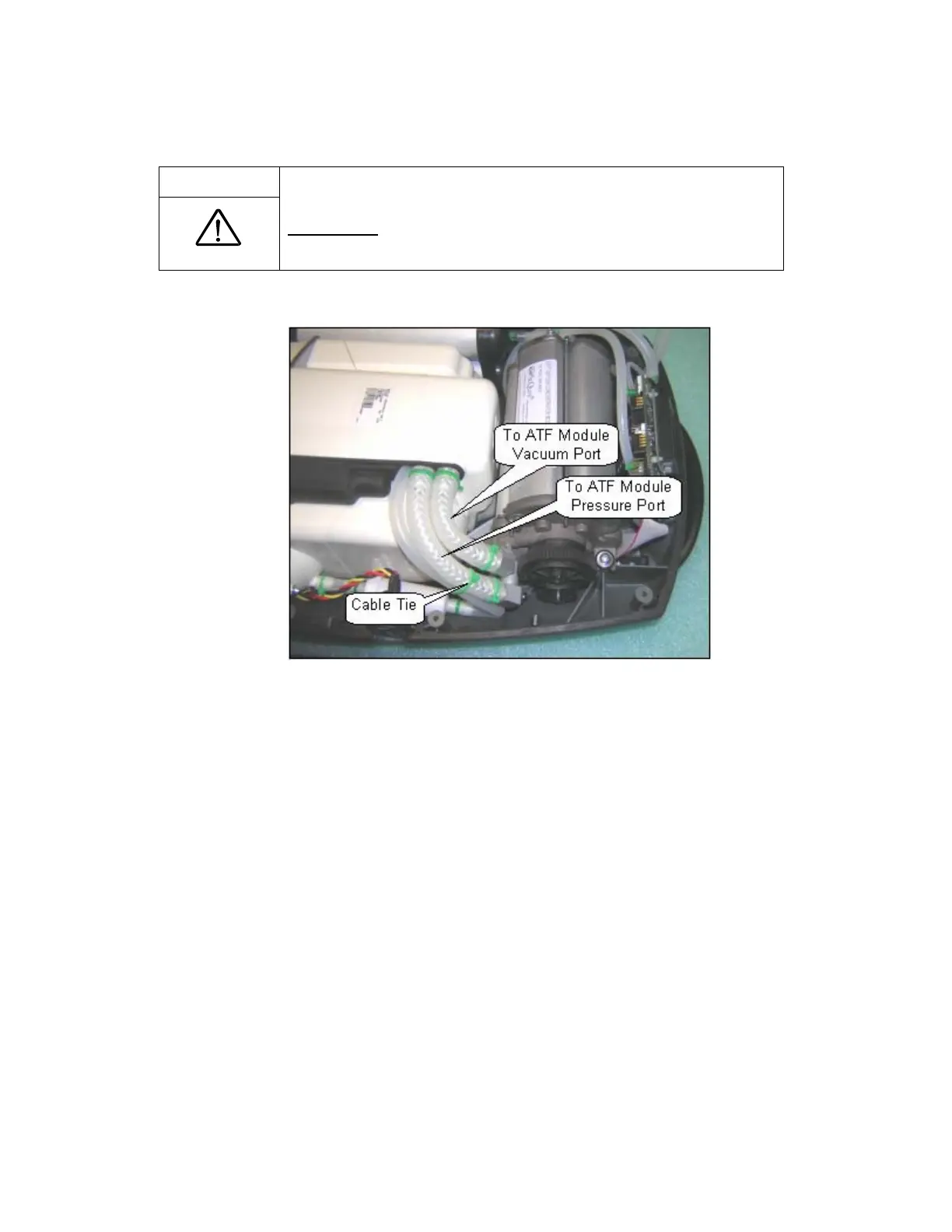

Figure 51: Removal of Compressor Pressure and Vacuum Hoses from ATF Module.
6. Turn the unit over onto a padded ESD safe surface and remove the 4 screws (M4x16 Pan Head
Machine Screw , P/N 6961-420) and washers (M4 Flat Fender Washer, P/N 3568) shown in
Figure 52.
