6. Install the Control Module Assembly. Secure the wire harness with Cable as shown on Figure 41.

Insure that there is a slack on the wire harness before tightening the Cable Tie. Plug in the

buzzer.

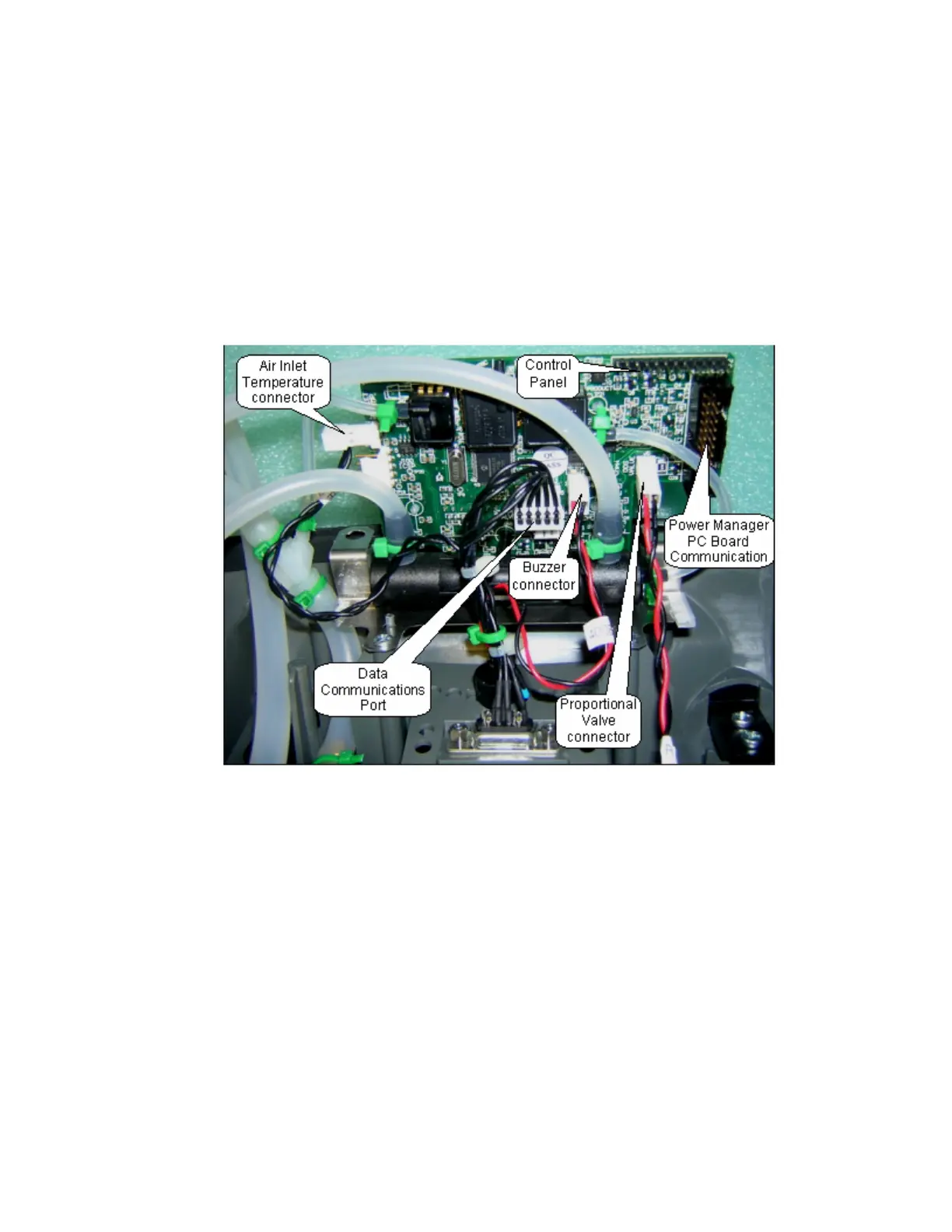

Control Module Connector Diagram

Use the figure below as an aid to ensure proper connection of wire harnesses to the Power Manager

printed circuit board.

Figure 42: Control Module Connector Diagram.
