70

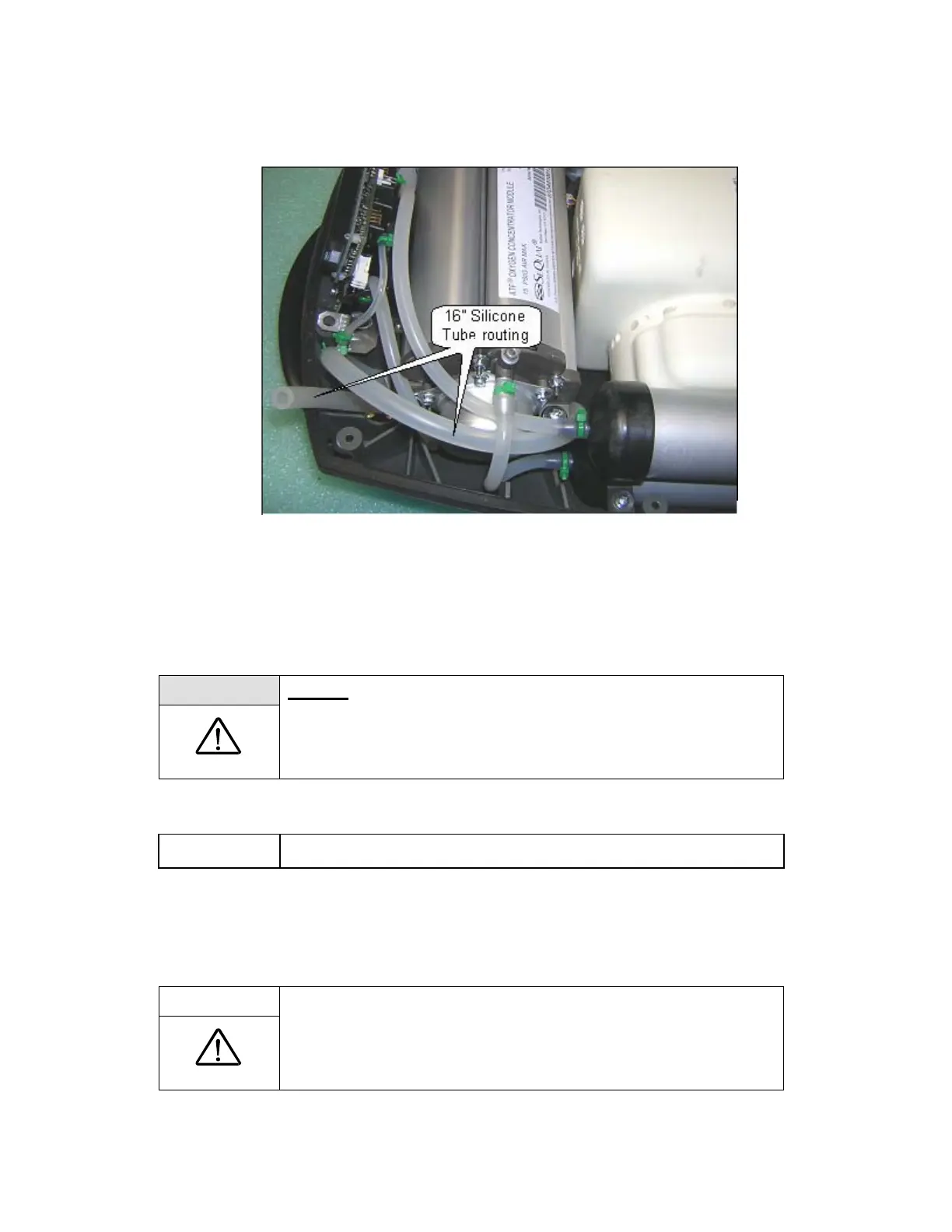

Figure 34: Tube Routing under ATF Module.
15. Place the ATF in the Unit Case and remove the caps from the ATF Ports. Install the Braided
Tubes into the ATF pressure and vacuum ports as shown on Figure 31. Do not use oil or grease
if the tubing is difficult to install. Secure joints with Cable ties.
WARNING:
DO NOT
uses any petroleum based or other lubricants. A
spontaneous and violent ignition may occur if oil, grease or other
petroleum substances come into contact with oxygen under pressure.
Keep these substances away from the oxygen system, tubing and
connections and any other oxygen source.
NOTE:
Inspect all tubing before securing with a cable tie.
16. Mount the ATF with 3 M4x16 screws and 3 washers as shown on Figure 32 above. Apply
Loctite
®
425 Thread Locker on the threaded tips of the screws before installing. Tighten screws
but DO NOT squash the grommets.
CAUTION:
Remove caps on ATF ports ONLY before connecting the tubes. DO
NOT leave the ports open unless ready to install the tubes. Also place
the removed caps from the new ATF and place on the ports of the
replaced ATF.
