6.22
6.5.2
Filter Block 01162901
Item
Description
Part No
1*
2*
3*
4
5
Seal Washer PTFE 3/4" I/D
O-Ring BS006 PTFE
O-Ring BS112 Vi
ton A
Filter el
ement
Cartri
dge valve
2321-1012
2323-1014
2323-6019
2377-3608
2372-0572
* A complete set of O-Rings and seals for the 1162 wet gas sampling
system is
available with part
number 01162998 (Vi
ton) and 01162999 (EPDM
).

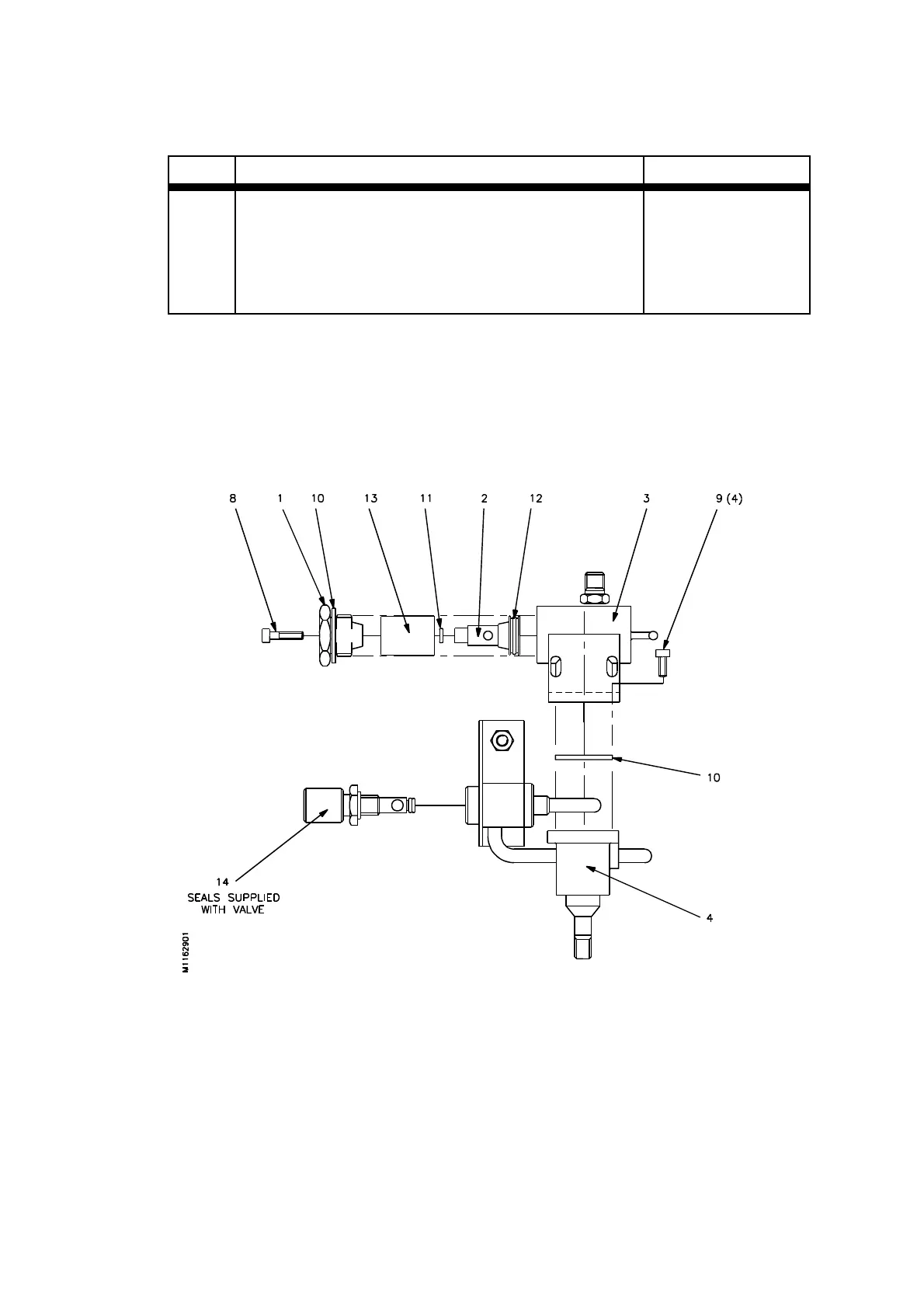

Figure 6.10 Filter Block Assembly (wet
gas system)
191
193
Table of Contents
Table of Contents
9
Introduction
11
Safety Approvals
12
Product Identification
12
Analyser Configurations
13
Specification
16
Functional Description and Operation
16
Transducer Unit
16
Control Unit
18
Alarm Board 01100936
20
Interface Unit
20
Options
20
Data Output Board 01100927
21
Pressure Compensation 01100997B
21
Auto-Calibration 01100936
22
Measuring Cell Option
22
Sampling Systems
23
Flow Alarm
24
Customised Default Values
24
Section 2 : Installation of Analyser Section Page
25
Section Page
26
General Safety Requirements
27
Hazardous Area Requirements
27
Safety Considerations
27
Close Coupled Configuration
28
Mounting Details
28
Positioning
28
Pre-Installation Checks
28
Separate Configuration
28
Sample Gas Connections
35
1131 And 1133 Transducers Gas Connections
40
1132 Transducer Gas Connections
40
Electrical Supply
40
Voltage Selection
42
Connection to Power Supplies
43
Ground (Earth) Connections
44
Battery Back-Up
45
Signal Cable
45
Transducer to Control or Interface Unit Interconnection
45
Heater Cable
49
Interface to Control Unit Interconnections
50
Cable Kit Options
52
Output Connections
53
Analogue Output
54
Digital Data Output
56
Alarm Relay Board
58
Auto-Calibration Board
58
Section 3 : Operation Section Page
67
Operating Principle
69
Pre Start Checks
70
Setting Sample Gas Flows
70
Initial Start-Up
71
Software Issue Number
71
Use of the Keypad
72
Display Mode
76
Operator Mode
77
Calibration
78
Zero Calibration
79
Span Calibration
80
Calibration Limits
81
Analogue Output
83
Calibration Failure
83
Span Range
83
Zero Offset
84
Analogue Output Freeze
85
Analogue Output Status
85
Select 4-20Ma, 0-20Ma, 20-4Ma or 20-0Ma
85
Alarm Functions
86
Alarms
86
Display of Alarms
86
Oxygen Level Alarms
87
Auto-Calibration Alarms
88
Cell Temperature
88
Corrupt Memory
88
Sample Flow Alarm
88
Alarm Store
89
Data-Link Broken
89
Alarm Relays
90
Allocation of Alarms of Relays
90
Range Change Alarm
90
Automatic Calibration
91
Clearing Alarms off a Relay
91
Displaying Allocation of Alarms
91
Introduction
91
Automatic Calibration Initiation
94
Initial Programming
95
Accuracy
96
Analogue Output Freeze
96
Automatic Calibration Status Indication
96
Failure to Auto-Calibrate
97
Auto Calibration Alarms
99
Electrical Power Failure in Auto-Calibration
100
Oxygen Level Alarms in Auto-Calibration
100
Pressure Compensation Calibration Procedure
100
Pressure Compensation Calibration Initiation
101
Pressure Compensation Calibration Error
104
Remote Selection of Calibration Gases
104
Table of Contents
107
Annually
109
Calibration Gases
109
Daily
109
Monthly
109
Routine Maintenance and Calibration
109
Weekly
109
Mechanical Zero Adjustment
111
Battery Replacement
112
Sampling System Maintenance
112
Loop Gain
113
Table of Contents
115
Diagnostic Flow Charts
118
Initialisation of Tests (Restart)
118
Diagnostic Tests
133
Oxygen Transducer
133
Power Supply Unit Test
135
Heater Resistance
137
Keyboard Encoder Test
138
Repair
140
Repair Equipment and Tools
140
Servicing the Magnet Assembly of 1131, 1132 and 1133
141
Leak Testing
147
Setting Mechanical Zero
147
Replacement of Heaters and Thermal Fuse
148
Repair of Control/Interface Unit
150
Dry Gas Sampling System 1161
154
Sampling System Repair
154
Wet Gas Sampling System 1162
156
Figures and Circuit Diagrams
157
Section 6 : Parts Lists Section Page
171
Recommended Spares List
173
Control Unit 1101 or Interface Unit 1102
174
Transducer Unit 1131
174
Transducer Unit 1132
175
Transducer Unit 1133
175
Dry Gas Sampling System 01161000 or 01161710
176
Wet Gas Sampling System 01162000
176
Control and Interface Unit Parts List 1101 and 1102
178
Transducer Units Parts List
181
Dry Gas Sampling Systems Parts Lists
186
Model 01161000
186
Filter Block 01161904
188
Flowmeter Seals Kits
189
Model 01162000
190
Wet Gas Sampling System Parts Lists
190
Filter Block 01162901
192
Interchangeability of Boards and Software
193
Pressure Compensation Kit 01100997B
193
Table of Contents
195
Safety Certification
197
British Standards
198
American (F.M.) Approvals
199
CENELEC Standards
199
Canadian (Csa) Approvals
200
Japanese Approvals
200
Swiss Approvals
200
Ordering Information
201
Parameter Listing
205
Changing the Password
213
Effect of Background Gases
217
Specification
231
Environmental Limits
232
Functional Characteristics
232
Sample Requirements (Transducer Unit)
232
Performance Characteristics
233
Physical Characteristics
234
Dry Gas Sampling System 1161
235
Wet Gas Sampling System
236
