Servomex 1100A User Manual

2.32
2.11.2 Digital Data Output
The data output board (01100 927) is fitted into the third position from the left in the module
rack (Figure 2.12). This board requires a separate power supply which is taken from the flying
lead that is secured to the module rack. Unfasten this lead and connect it to the terminal block
as shown in Figure 2.14.

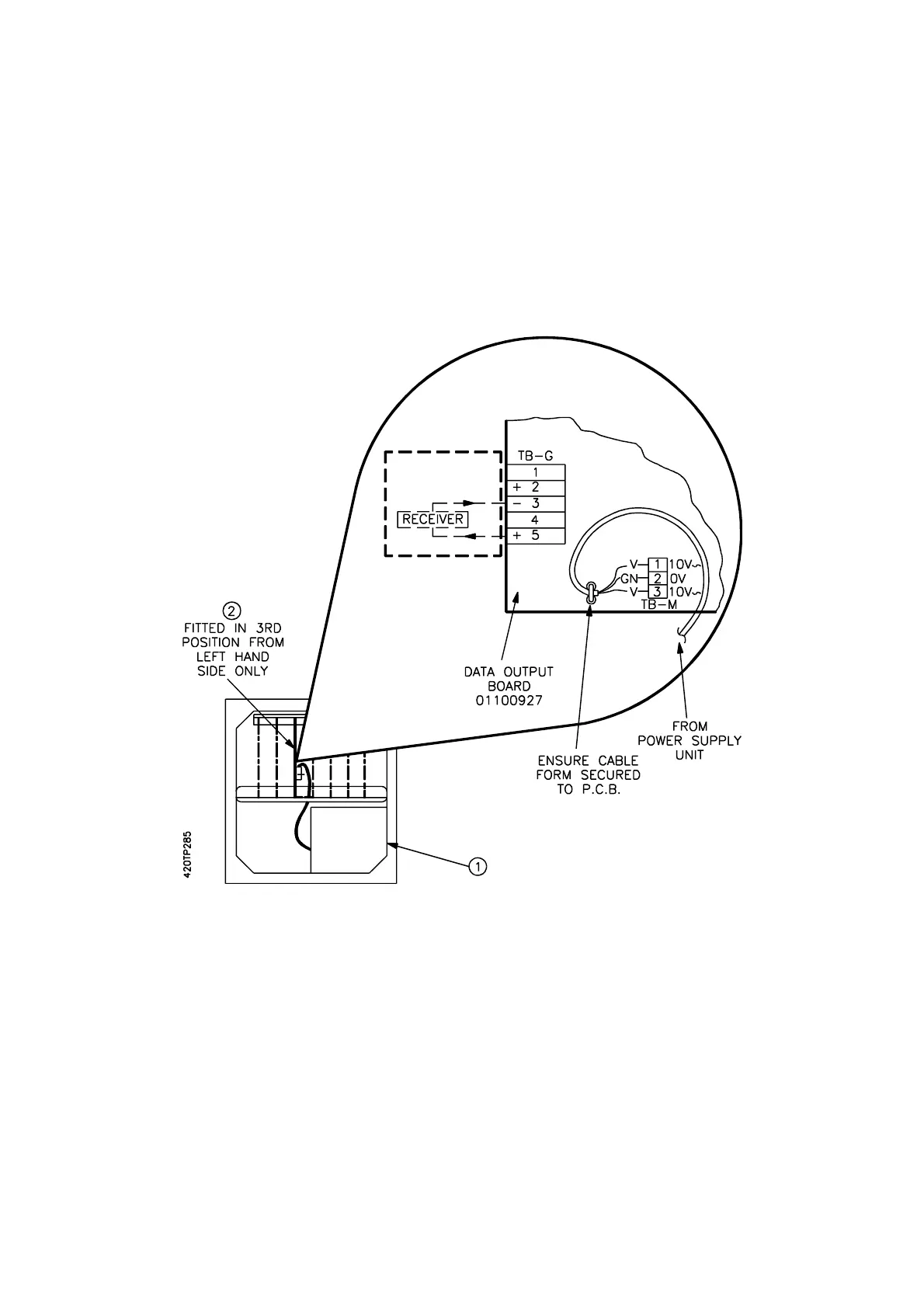

Figure 2.14 Data Output Board Installation
