A4.2
APPENDIX 4 DIGITAL DATA COMMUNICATIONS - 01100927
Installation and electrical details are given in Section 2.11.2.
This Appendix gives information for the interpretation of the digital output.
Serial transmission code: ASCII
Protocol: Asynchronous signal with
a start bit, eight data bits
and two stop bits.
Transmission rate: 300 baud.

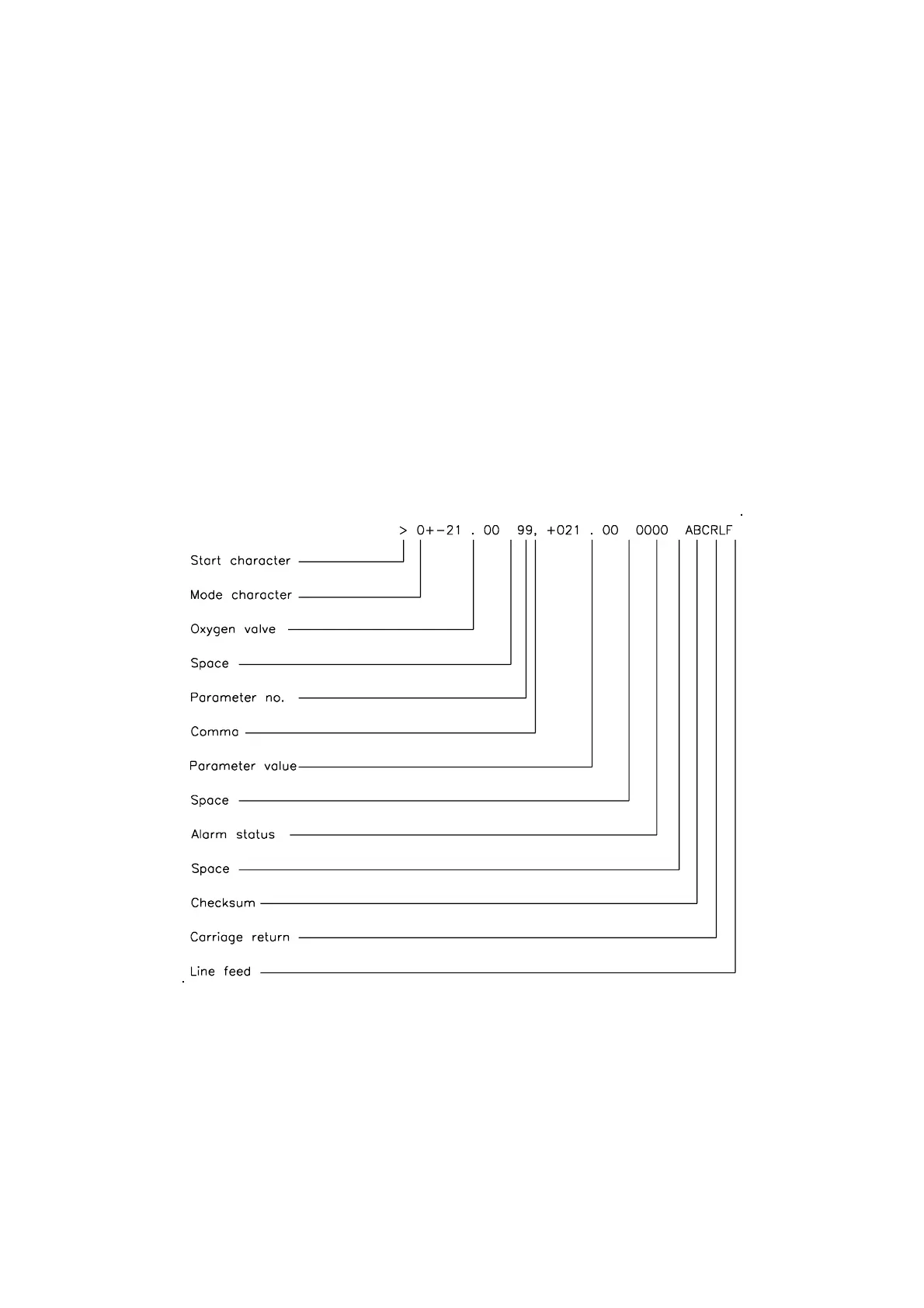

A data frame comprises 30 characters and is typically of the following form:
