Servomex 1100A - 2.7 Battery Back-up

2.13
(a) 1131/1133 Transducers
(b) 1132 Transducer

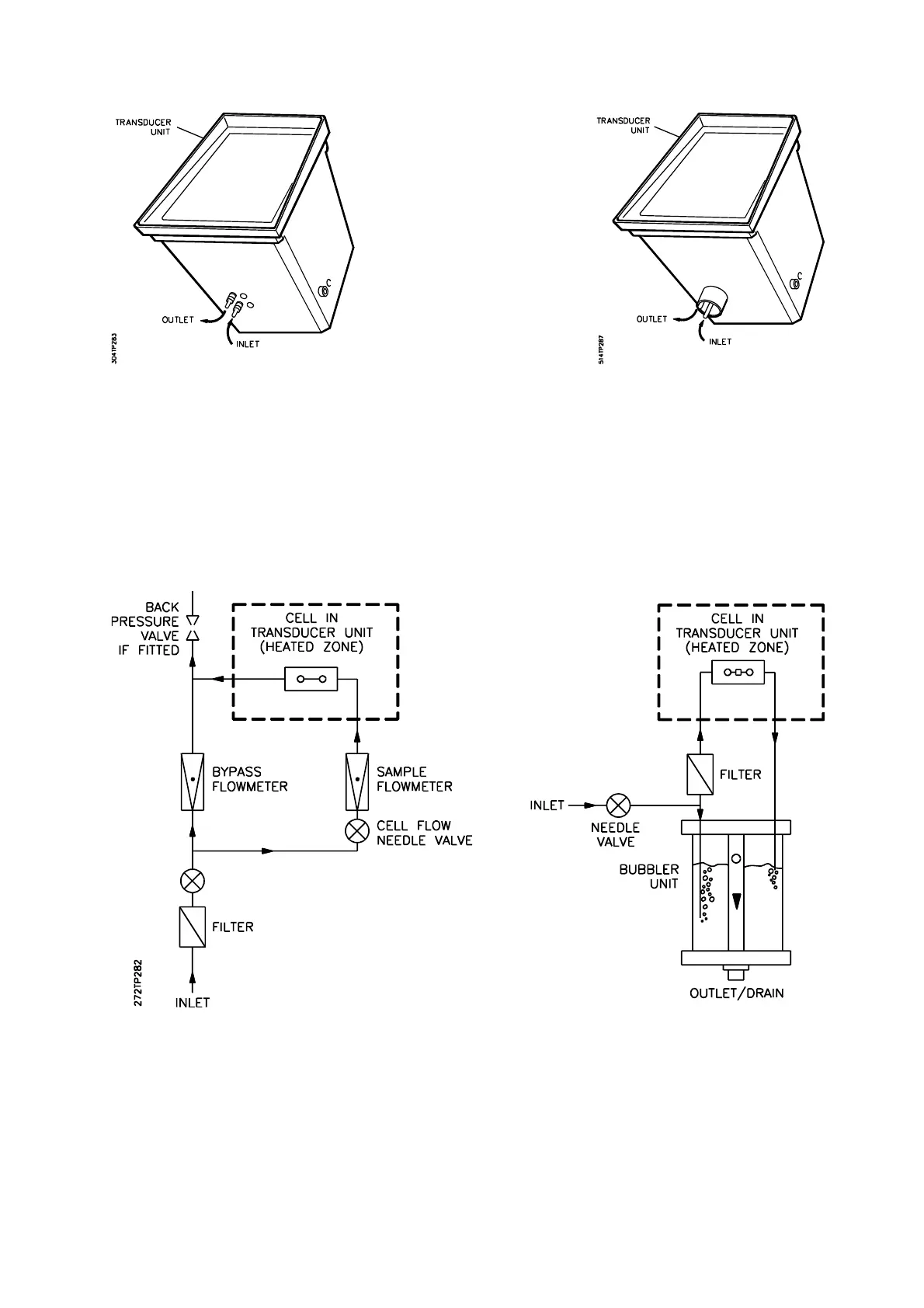

Figure 2.5 Gas Connections to Transducer Units.
(a) Dry Gas Samples (b) Wet Gas Samples
Figure 2.6 Recommended Sample System Schematics
