Servomex 1100A - Page 51

2.27

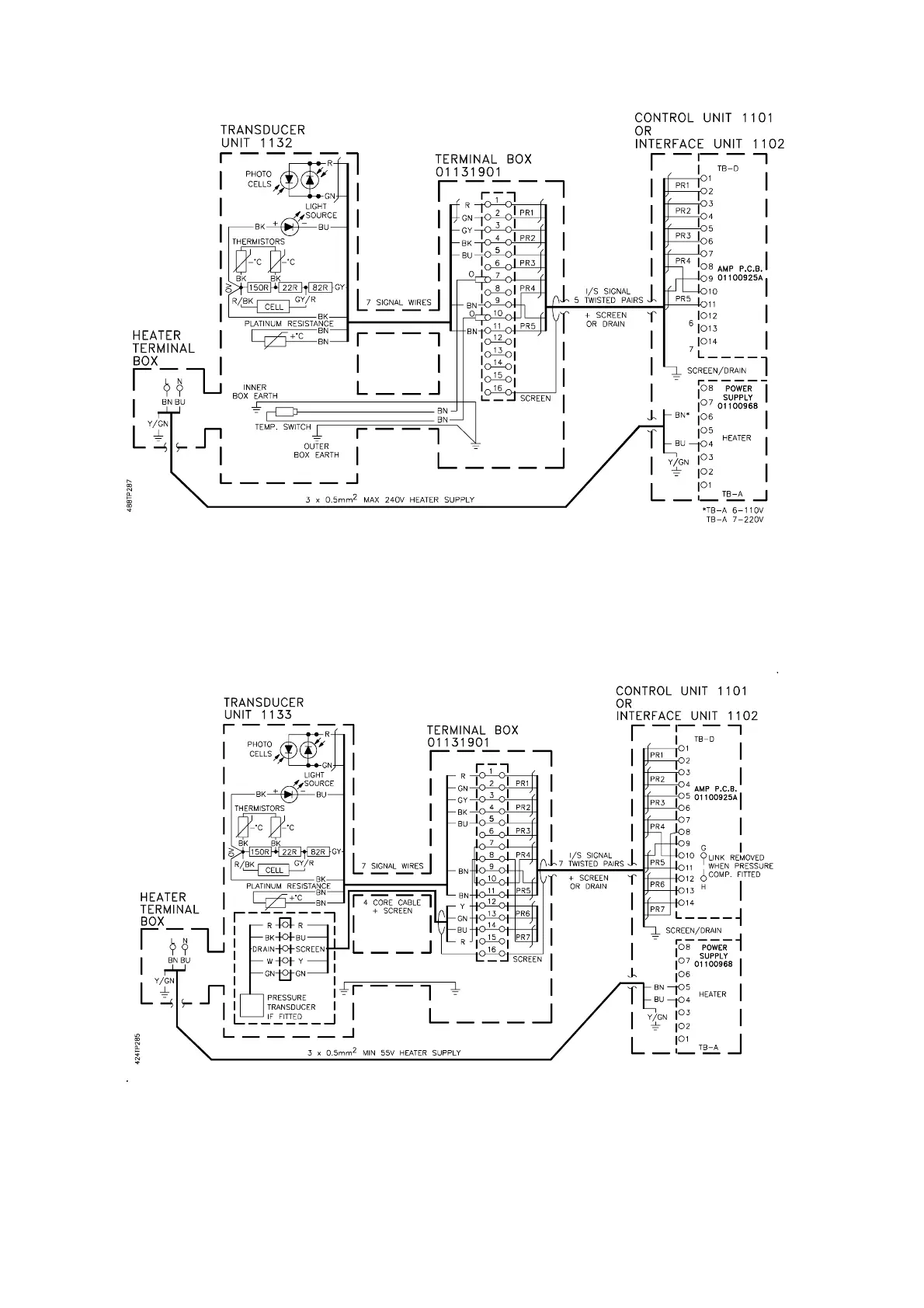

Figure 2.10a Connections to 1132 Transducer Unit
Architecture Code 04 and 06 (1100H)
Figure 2.10b Connections to 1133 Transducer Unit
Architecture Codes 04, 14, 24, 06, 16 and 66
