Device Integration/Projecting
32 ATM60 / ATM90 / KHK53
Dec 2021

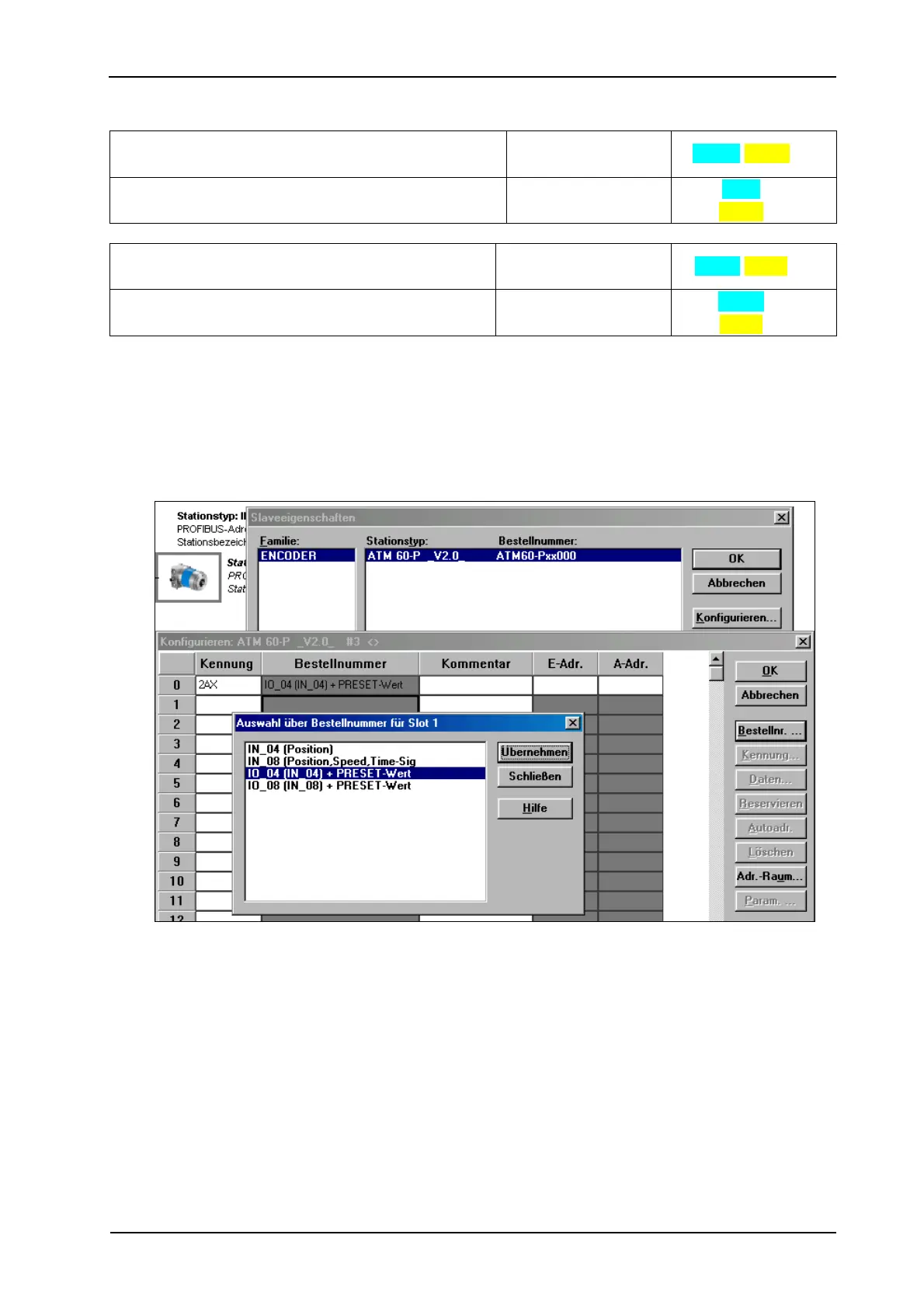

The following examples show more details:
Whole numerical value (32-bit view)
{ (01.CA x 1.00.00) + 0.11.A0 }
30 020 000 (d)
01.CA.11.A0 (h)
Value 1 ".... --(31_16)" 458 (d) 1.CA (h)
Value 2 ".... --(15_00)" 4512 (d) 11.A0 (h)
Whole numerical value (32-bit view)
{ (00.0C x 1.00.00) + 0.00.00 }
786 432 (d)
00.0C.00.00 (h)
Value 1 ".... --(31_16)" 12 (d) 00.0C (h)
Value 2 ".... --(15_00)" 0 (d) 00.00 (h)
7.4 Use of the ‘COM Profibus’ Configuration Tool
7.4.1 Module Configuration
Only one (1) module can be selected for each encoder.
Figure 7–3: Module Configuration
