SICK ATM60 User Manual

System Configuration
36 ATM60 / ATM90 / KHK53
Dec 2021
8 System Configuration
8.1 Master-Slave Communication
With the DP protocol (V0) supported by the encoder, a subscriber (DP slave) behaves accord-
ing to the following flow diagram scheme (State Machine). The mode of operation of the State
Machine is fully defined in a hardware component (DP controller ASIC).
To start a data exchange with the slave the master must, during run-up, adhere to the following
order of telegrams:
• DDLM_Slave_Diag (diagnostic request).
• DDLM_Set_Slave_Adr (optional telegram, Master Class 2 only).
• DDLM_Set_Prm.
• DDLM_Chk_Cfg.
• DDLM_Slave_Diag (diagnostic request to ensure initialisation).
• DDLM_DATA_EXCH (cyclical data exchange)
Via a diagnostic telegram DDLM_Slave_Diag, the master can request an appropriate diagnosis
from the slave, at any time.
Further services may be activated via "Global Control Command (GCC)" telegrams.

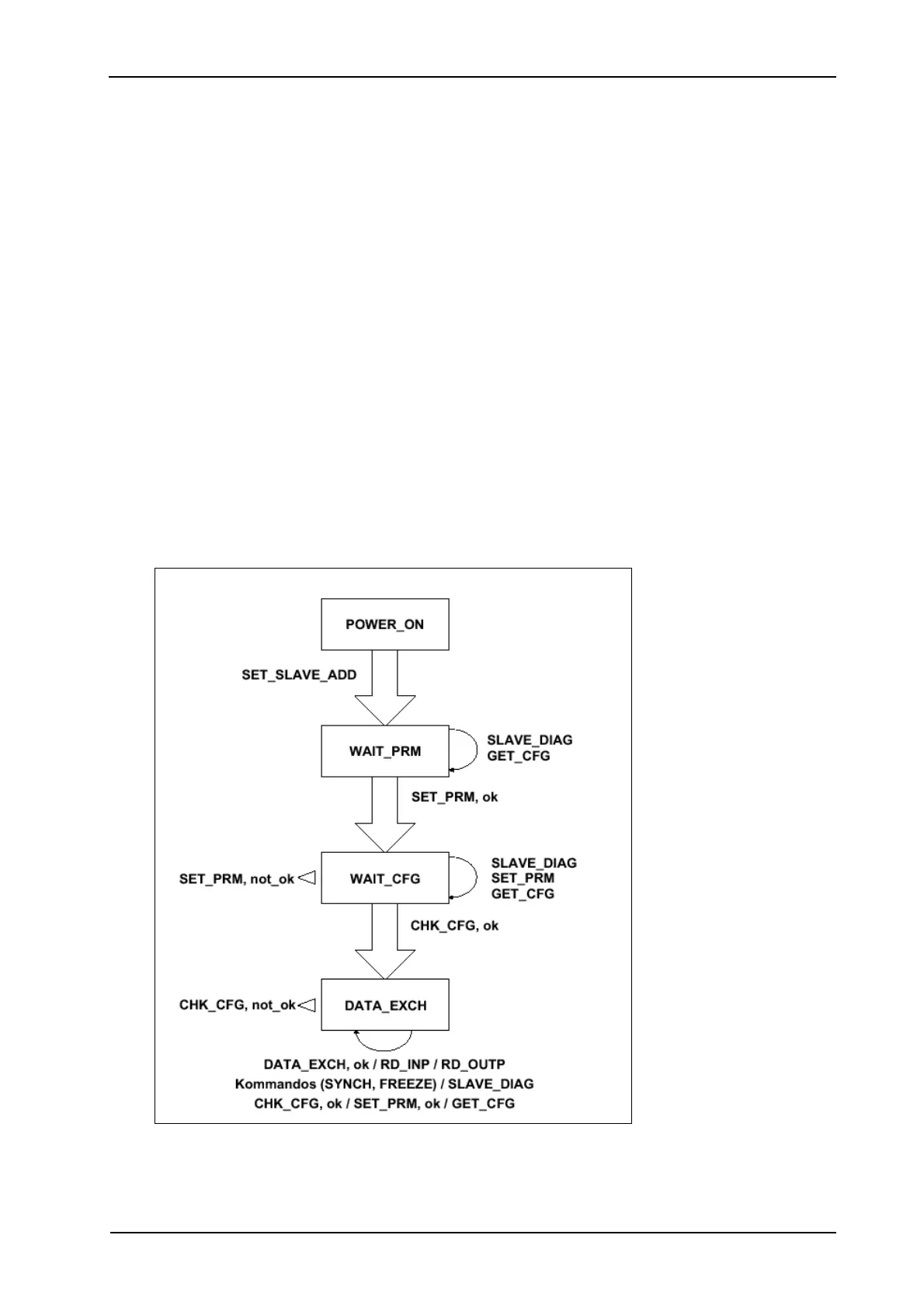

Figure 8–1: DP State Machine

SICK ATM60 Specifications

General

Protection rating	IP65
Housing material	Aluminum
Measuring range	0 to 360 degrees
Interface	SSI, Incremental
Operating temperature	+70 °C
Protection class	IP65
Shaft diameter	6 mm, 10 mm
Supply voltage	10 V DC ... 30 V DC
Shaft type	Solid shaft
Storage temperature	+85 °C
Power supply	10 V DC ... 30 V DC
Current consumption	< 150 mA
