Product description
3.2.6 Pallet detection
Pallet detection provides access protection in which e.g. pallets, mesh crates or trolleys
can have access to a system or machine. If other objects, in particular people, enter the
protective field then the C4000 shuts down its output signal switching devices.
With this type of access protection, very different pallets can be used without prior
teaching-in. No muting sensors are required, as a result it is therefore not necessary to
r
eEalign the sensors after changing the item transported.
The C4000 is mounted horizontally in the direction of transport of the objects. The beams
on the safety light curtain are aligned with the feet on a pallet or mesh crate. Then several
objects enter the protective field per pallet.
The maximum number of these floating objects depends on the protective field length
(see Tab. 2). Their maximum size of 240 mm is fixed.
Protective field length [mm]
C4000 Palletizer Advanced C4000 Fusion Number of floating objects
– 300 1
– 450 2
– 600 2
750 750 3
900 900 4
1050 1050 4
1200 1200 4
1350 1350 5
1500 1500 5
1650 1650 5
1800 1800 5
As for goods detection, the first object must interrupt the first, second, third beam etc. in
succession. As soon as a further object enters the protective field, the object distance is
determined. This distance is not allowed to change as the object passes through the pro-
tective field.
N
ote

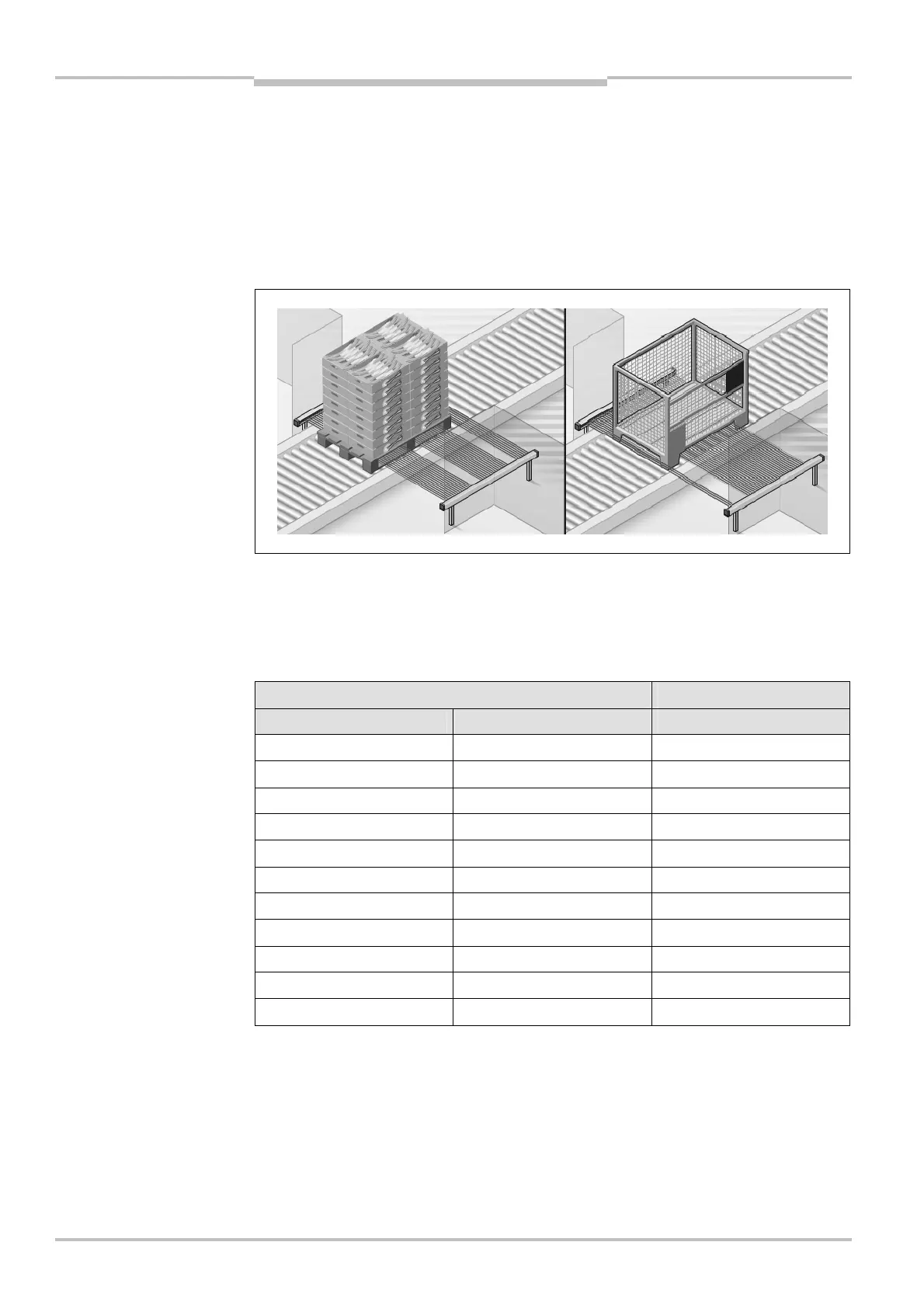

Fig.
8
:
Pallet detection
Tab.
2
:
Number of moving
objects during pallet
detection
