Mounting
Sender and receiver can be mounted in three different ways:

mounting with swivel mount bracket (see 6.4.1)

mounting with side bracket (see 6.4.2)
 fastening to floor stands (see 12.5.5)
6.4.1 Mounting with swivel mount bracket
The swivel mount bracket is made of black polyamide PA6. The bracket is designed such
that sender and receiver can still be accurately aligned even after the bracket has been
mounted.
 Attach the screws of the swivel mount bracket with a torque of between 2.5 and 3 Nm.
Higher torques can damage the bracket; lower torques provide inadequate protection
against vibration.
Note

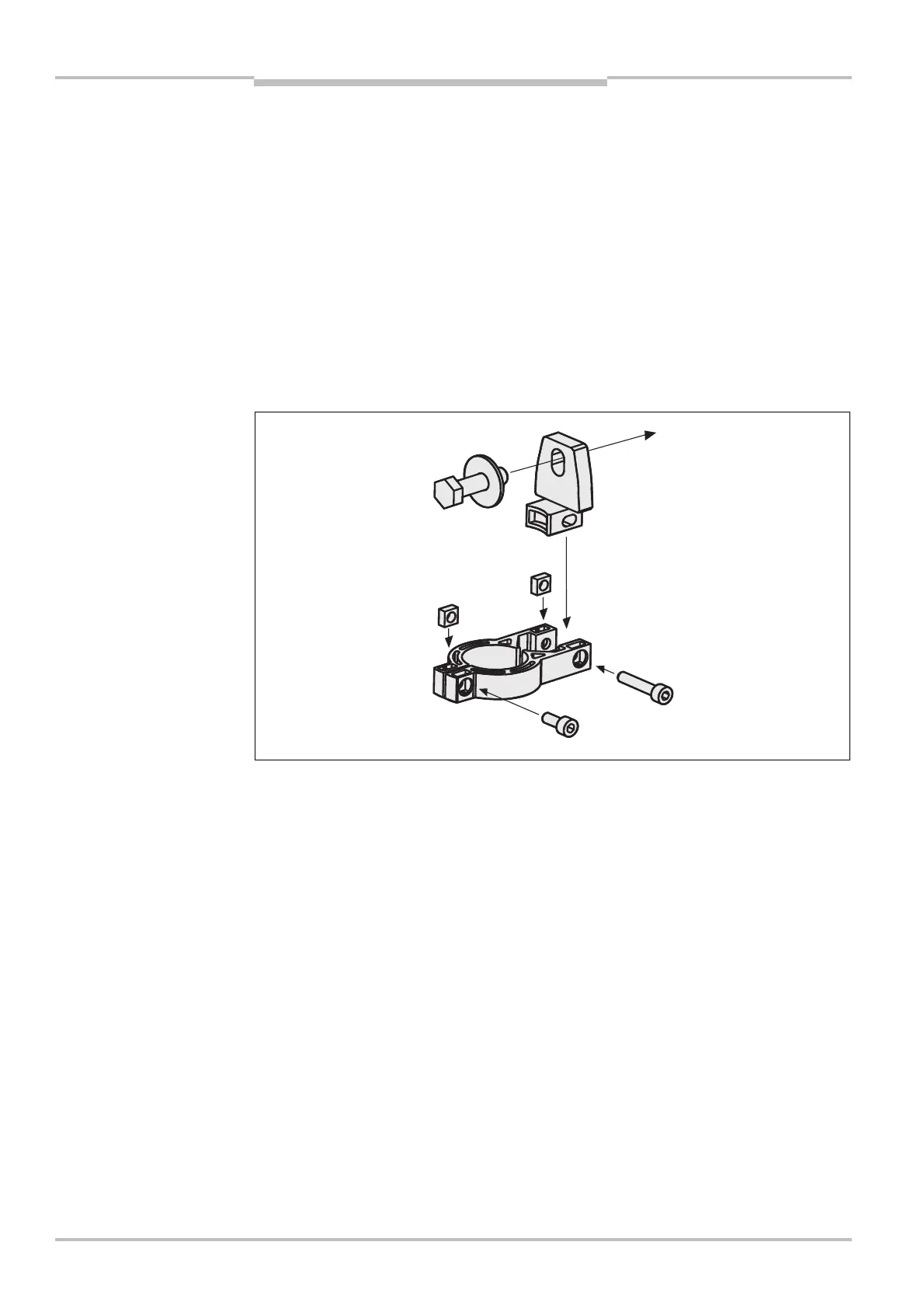

Fig.
42
:
Composition of the
swivel mount bracket
Part no. 2019659
