Technical specifications
12.5.7 Deflector mirror PNS125
Mirror height S
[mm]
Dimension
L1 [mm]
Dimension
L2 [mm]
Dimension
L3 [mm]
Dimension
A [mm]
340 372 396 460 440
490 522 546 610 590
640 672 696 760 740
790 822 846 910 890
940 972 996 1060 1040
1090 1122 1146 1210 1190
1240 1272 1296 1360 1340
1390 1422 1446 1510 1490
1540 1572 1596 1660 1640
1690 1722 1746 1810 1790
1840 1872 1896 1960 1940
When using deflector mirrors, the effective scanning range is reduced (see Tab. 10 on
page 36).
Do not use deflector mirrors if the formation of droplets or heavy contamination of the
deflector mirrors is to be expected!
The formation of droplets of heavy contamination can be detrimental to the reflection
behaviour. The protective function of the system will be affected and the system will thus
become unsafe. This would mean that the operator is at risk.

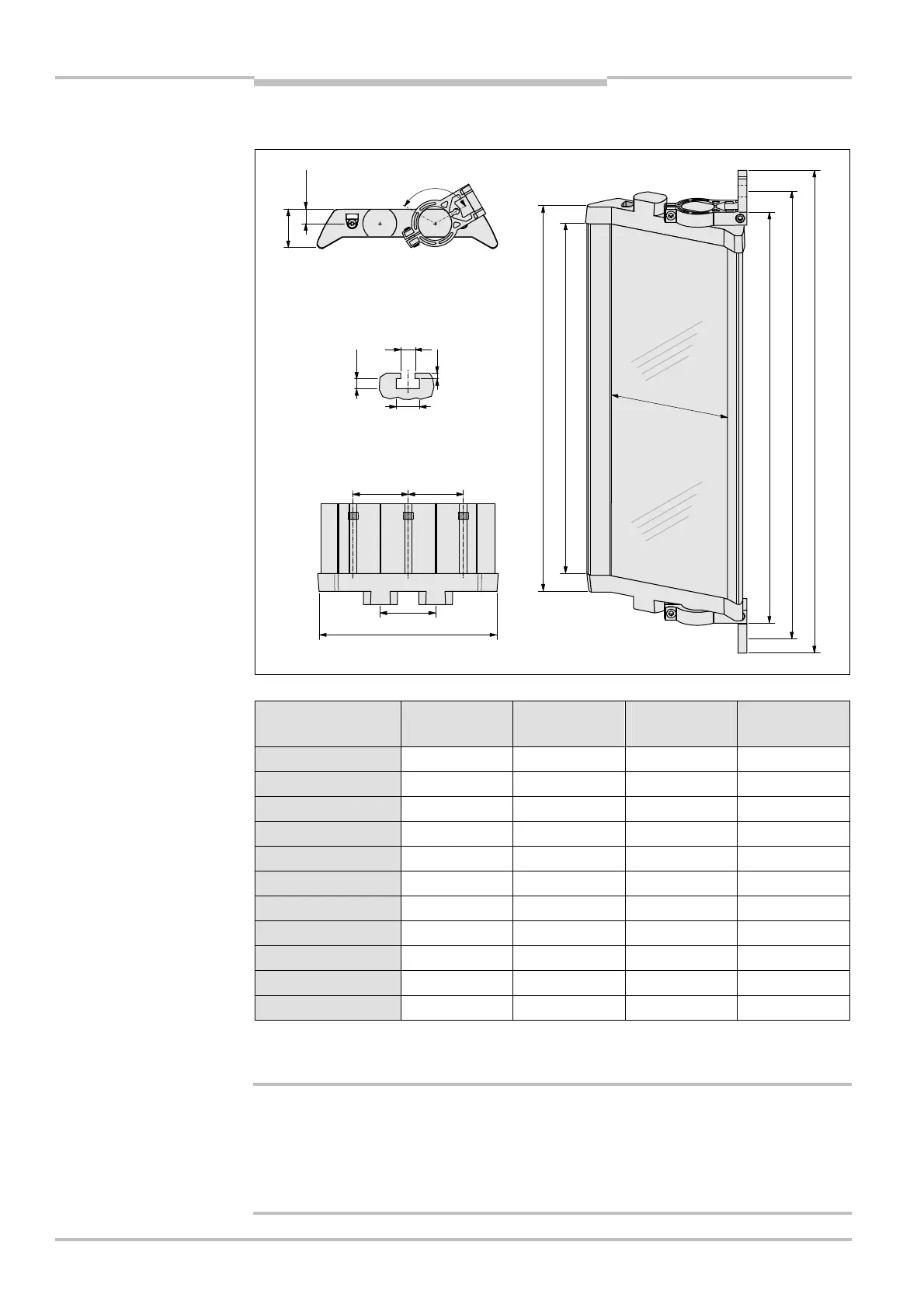

Fig.
65
:
Dimensional drawing
deflector mirror PNS125
(mm)
Tab.
33
:
Dimensions for the
deflector mirror PNS125
depending on the mirror
height
Note

WARNING
10.5
50
S
35
13.3
±60°
2.5
164
6.5
L1
L2
A
L3
4.5
Sli
ding nut groove for side
mounting
Mounting with
swivel mount bracket
50
50
123
