Electrical installation
7.11 Key-operated pushbutton for teach-in
 Instead of the key-operated pushbutton for teach-in a comparable tamper-proof device,
e.g. an MMI (Man-Machine-Interface) with password protection can be connected.
 If you connect a key-operated pushbutton for teach-in to the C4000, then you can no
longer use the emergency stop function or the bypass function in the C4000.
 Ensure that only authorised persons have access to the teach-in key.

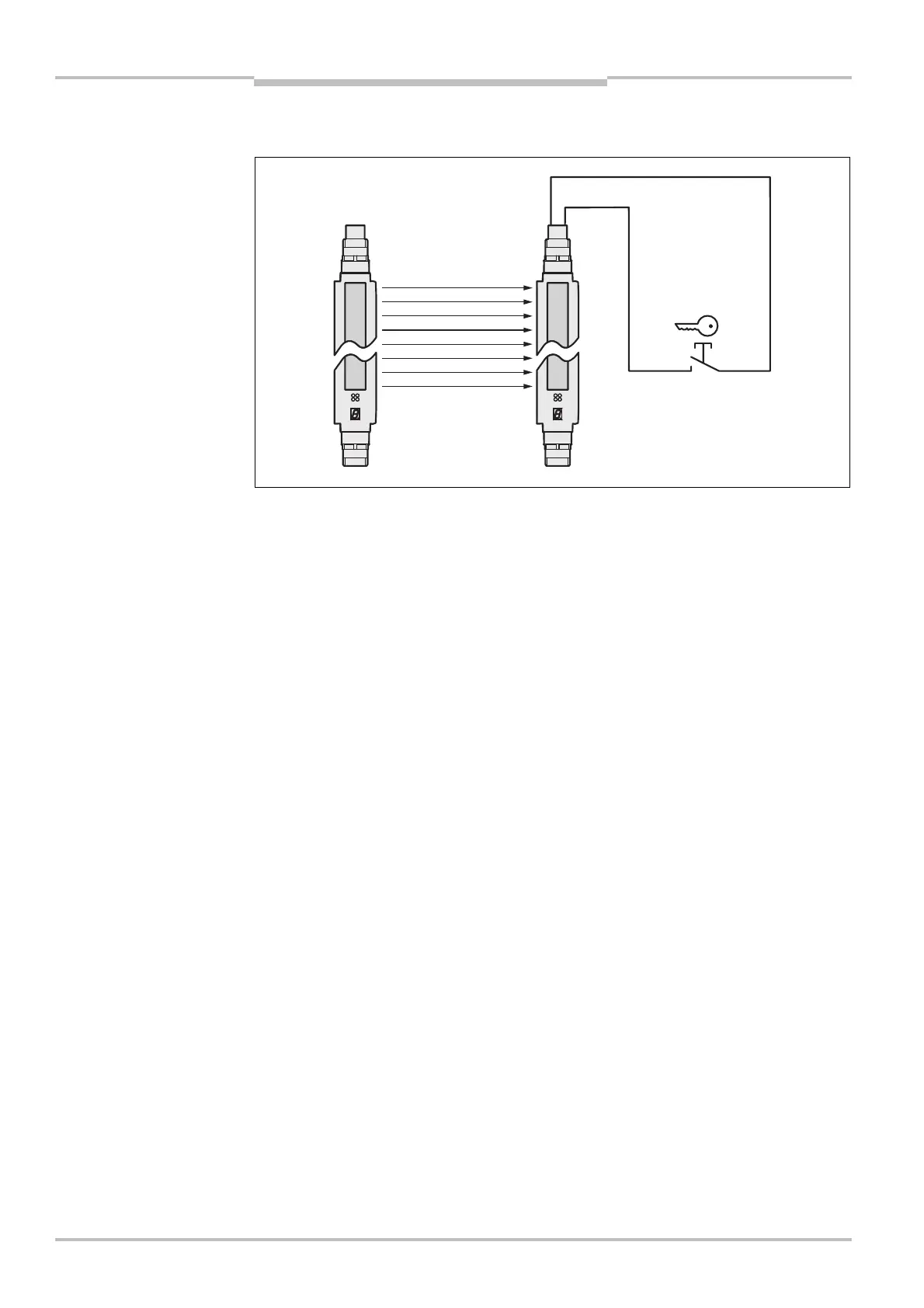

Fig.
56
:
Connection of a key
-
operated pushbutton for
teach-in
Notes
Key
-
operated pushbutton
for teach-in


Pin
4
Pin
6
