Product description
3.3.2 Status indicators of the receiver
Display Meaning
 Orange Cleaning or realignment required
 Yellow Reset required
 Red System providing signals for shutting down the machine (output signal
switching devices off)
 Green System enabled (output signal switching devices on)
 Bypass active
 System error. The device is defective. Replace the receiver.



Poor alignment to sender.
Please refer to chapter 8.2 “Aligning sender and receiver” on page 83.
 Operation with large protective field width (only after switching on)
 Blanking or reduced resolution active
 Object in the protective field with activated reduced resolution or
blanking
 Operation with beam coding 1 (only after switching on)
 Operation with beam coding 2 (only after switching on)
 Emergency stop active
Other displays All other displays are error messages. Please refer to chapter 11
“Fault diagnosis” on page 91.

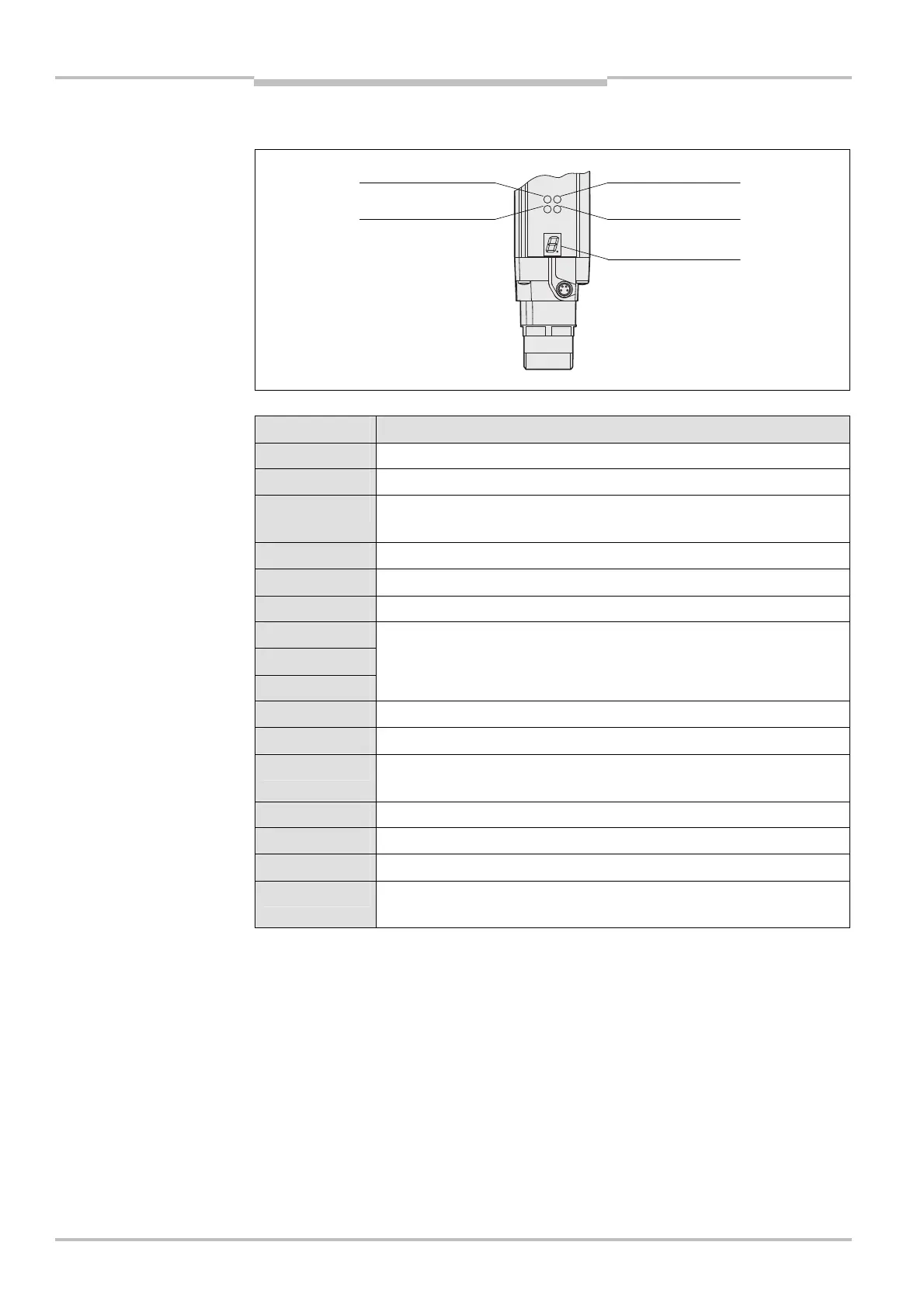

Fig.
17
:
Status indicators of
the receiver
Tab.
5
:
Status indicators of
the receiver
Orange
Yellow
Red
Green
7
-
segment display
