Technical specifications
12.5.2 C4000 with extension connection
Protective field
length or protective
field height S [mm]
Dimension
L1 [mm]
Dimension
L2 [mm]
Dimension
A [mm]
300 381 464 224
450 532 614 374
600 682 765 524
750 833 915 674
900 984 1066 824
1050 1134 1216 974
1200 1283 1366 1124
1350 1435 1517 1274
1500 1586 1669 1424
1650 1736 1818 1574
1800 1887 1969 1724

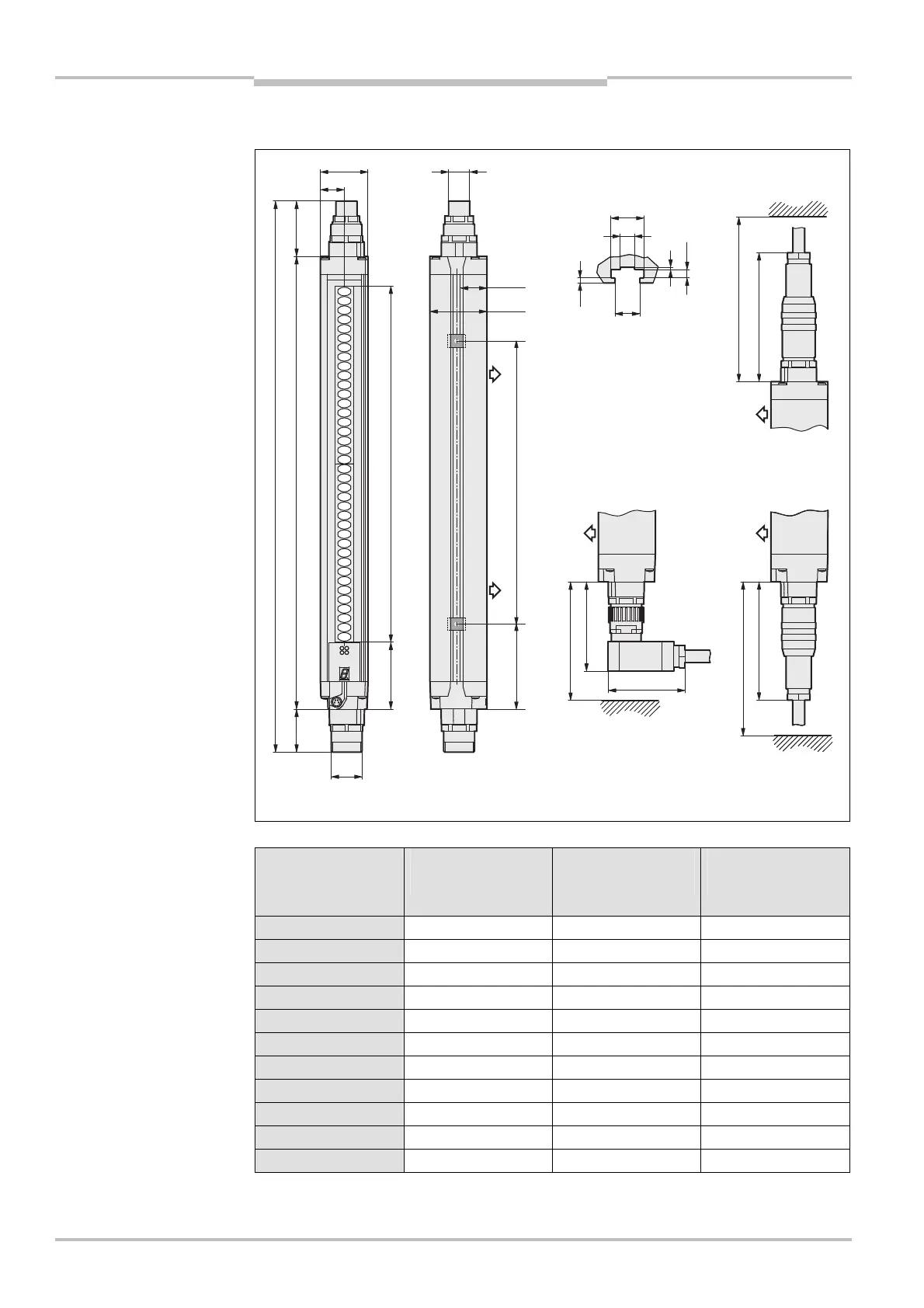

Fig.
60
:
Dimensional drawing
C4000 with extension
connection, sender (mm)
Receiver, mirror image
Tab.
31
:
Dimensions
dependent on the protective
field length or protective field
height, C4000 with extension
connection
Sliding nut groove
for side mounting
14
6
10.5
2.2
1
3.5
Socket according to DIN 43
651 (M26
×
11 + FE)
22.4
74
A
48
56.3
S
Plug according to DIN 43
651
(
M
26
×
11
+
FE)
40
20
L1
L2
36.2
46.5
Approx. 150 (connector
range)
110
Cable plug
M26  × 11 + FE
with crimp
contacts
Approx. 100 (connector
range)
75
Approx. 140 (connector
range)
100
Cable sockets
M26
×
11
+
FE with crimp
contacts
65
